Assembly And Covering Work When Painting The Engine Hood - Ar98.00-P-0204LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
Model 293
Modification notes
| 06.07.2018 | Detailed description of the work procedure. |

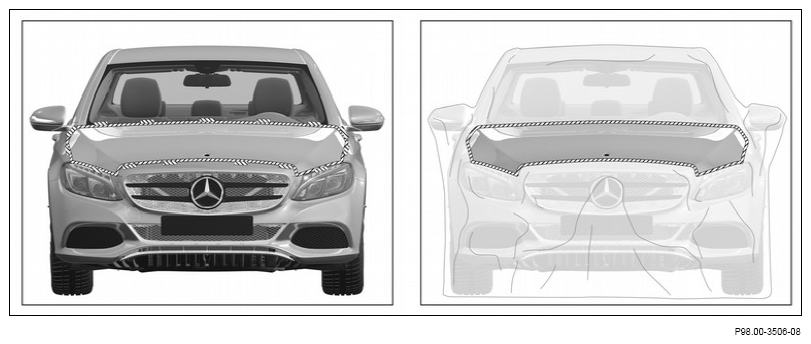

Shown on model 205 in paint stage 2/3
| Notice | Cleaning plastic cover plates of lamps | AH82.10-P-1002-01A . | |
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A . | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK . | ||
| Mask off, cover in paint stage 2 or 3 | |||
| 1 | Remove Mercedes star on hood. | ||
| 2 | Mask off all openings on engine hood with masking tape. | ||
| 3 | Mask off hood all the way around. | ||
| 4 | Cover areas of vehicle that are not to be painted using film. |
