Assembly And Covering Work When Painting The Doors - Ar98.00-P-0206LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
Model 293
MODIFICATION NOTES
| 06.07.2018 | Detailed description of the work procedure. |

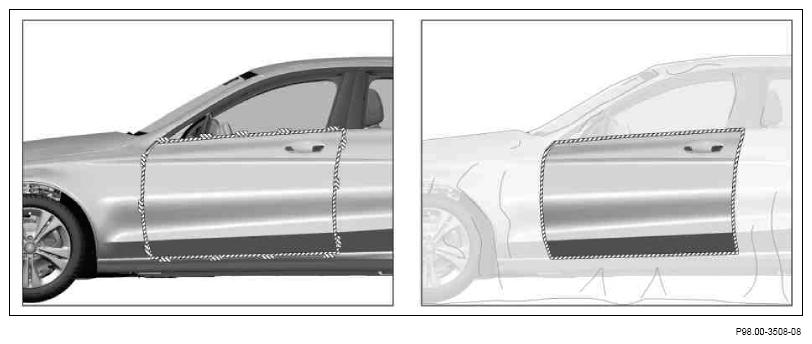

Shown on model 205.0, front door in paint stage 2/3 on left side of vehicle

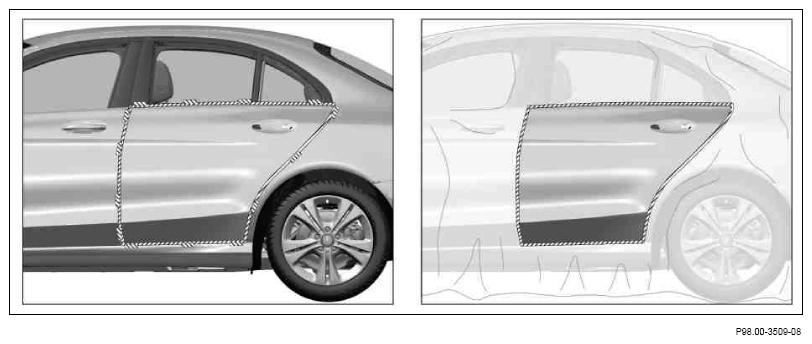

Shown on model 205.0, rear door in paint stage 2/3 on left side of vehicle
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A . | ||
| General information on masking for paintwork | AH98.00-P-0200-01BK . | ||
| Cover up, mask off front door in paint stage 2 or 3 | |||
| 1 | Completely remove outside mirror. | Model 205.3/4 | AR88.70-P-9000CLW |
| Model 205.0/1/2 Model 253 Model 293 |
AR88.70-P-9000LW . | ||
| 2 | Remove outer sealing rail for side window on front door. | Fig 1 | |
| 3 | Remove outside door handle from front door. | Model 205, 253 Model 293 Model 205, 253 |
AR72.10-P-2400LW . |
| 4 | Mask off all openings on front door with masking tape. | ||
| 5 | Mask off front door all the way round. | ||
| 6 | Cover areas of vehicle that are not to be painted using film. | ||
| Cover up, mask off rear door in paint stage 2 or 3 | |||
| 7 | Remove outer sealing rail for side window of rear door. | Model 205.0/1/2, 253 Model 293 |
Fig 1. |
| 8 | Remove outside door handle from rear door. | Model 205.0/1/2, 253 Model 293 Model 205.0/1/2, 253 |
AR72.12-P-2410LW . |
| 9 | Mask off all openings on rear door using masking tape. | Model 205.0/1/2, 253 Model 293 |
|
| 10 | Mask off rear door all the way around. | Model 205.0/1/2, 253 Model 293 |
|
| 11 | Cover areas of vehicle that are not to be painted using film. | Model 205.0/1/2, 253 Model 293 |
