Assembly And Covering Work When Painting The Center Roof Paneling - Ar98.00-P-0209LWS
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.2, 253.9
Model 293
MODIFICATION NOTES
| 06.07.2018 | Detailed description of the work procedure. |

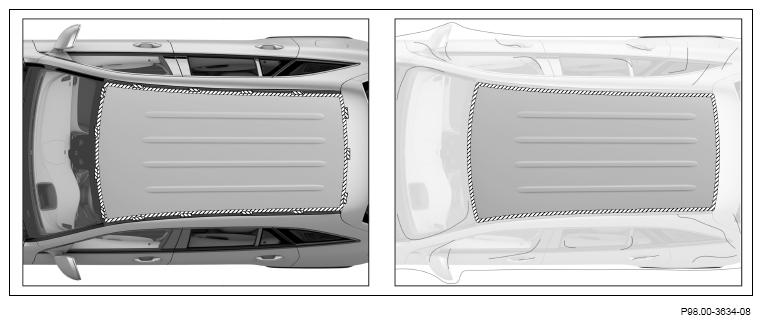

Shown on model 253.9 except code 413 (Panoramic sliding sunroof) in paint stage 2/3

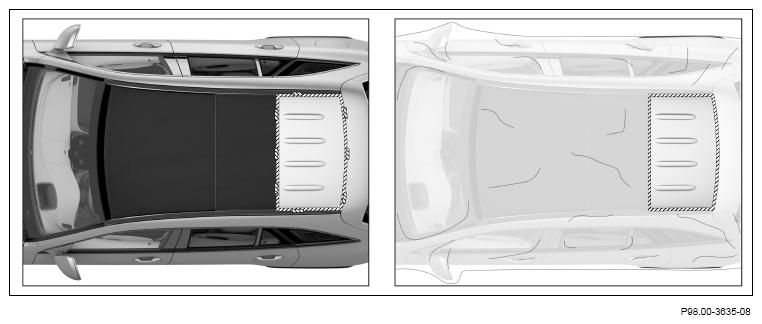

Shown on model 253.9 with code 413 (Panoramic sliding sunroof) in paint stage 2/3

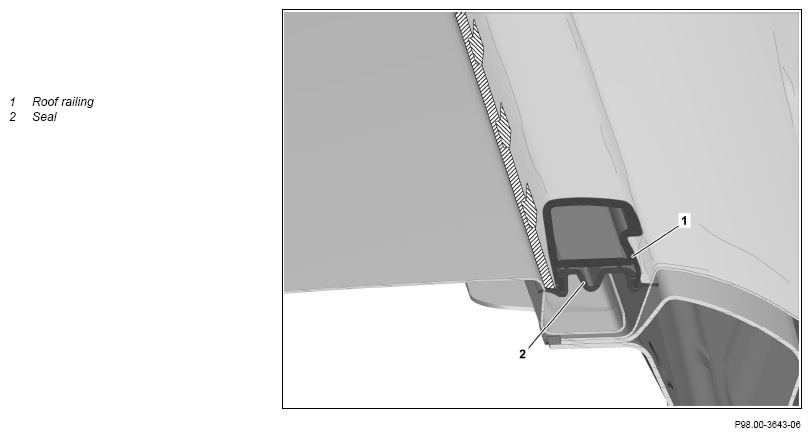

Sectional view of masking off, covering in the area of the roof railing (1), shown on model 253.9
| Topical note | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| General information on masking for paintwork | AH98.00-P-0200-01BK . | ||
| Covering, masking off in paint stage 2/3 or 1E | |||
| 1.1 | Lift seal (2) in area of roof railing (1) at inside roof paneling, underlay with suitable spacer and mask off. | Paint stage 3, if the damaged area is not in the area of the roof railing (1), or paint stage 2. | |
| 1.2 | Remove roof railing (1). | Model 205.2, 253.9, 293 Paint stage 3, if the damaged area is in the area of the roof railing (1), or paint stage 1E. |
|
| Model 205.2, 253.9 | AR77.40-P-5000LW . | ||
| 2 | Remove windshield. | Model 205.2, 253.9, 293 except code 413 (Automatic panoramic sliding sunroof) Paint stage 3, if the damaged area is in the area of the windshield, or paint stage 1E. |
|
| Model 205.2, 253.9 except code 413 (Automatic panoramic sliding sunroof) |
AR67.10-P-1000LW . | ||
| 3 | Remove panoramic sliding sunroof. | Model 205.2, 253.9, 293 with code 413 (Automatic panoramic sliding sunroof) Paint stage 3, if the damaged area is in the area of the panoramic sliding sunroof, or paint stage 1E. |
|
| Model 205.2, 253.9 with code 413 (Automatic panoramic sliding sunroof) |
AR77.21-P-0750LF . | ||
| 4 | Remove cover from rear roof frame. | ||
| 5 | Remove liftgate. | Model 205.2, 253.9, 293 Paint stage 1E. | |
| Model 205.2, 253.9 | AR72.20-P-1020LW . | ||
| 6 | Mask off mating surfaces around center roof paneling. | ||
| 7 | Cover areas of vehicle that are not to be painted using film. |
