Assembly And Covering Work When Painting The Center Roof Paneling - Ar98.00-P-0209LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/1, 253.3 except code 413 (Automatic panoramic sliding sunroof)
MODIFICATION NOTES
| 06.07.2018 | Detailed description of the work procedure. |

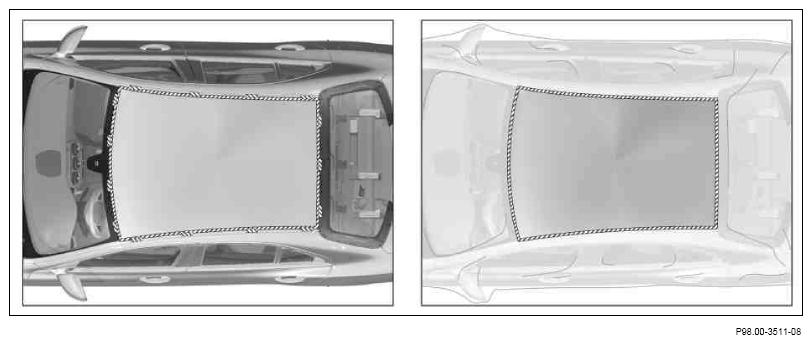

Shown on model 205.0 in paint stage 2/3
| Topical note | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| General information on masking for paintwork | AH98.00-P-0200-01BK . | ||
| Mask off, cover in paint stage 2 or 3 | |||
| 1 | Remove drip rails. | Model 205.0/1, 253.3 except code 413 (Automatic panoramic sliding sunroof) Model 253.3 except code 413 (Automatic panoramic sliding sunroof) |
AR88.80-P-4000LW . |
| 2 | Remove windshield. | Paint stage 3, if damaged point is in area of windshield. | AR67.10-P-1000LW . |
| 3 | Remove rear window. | Model 205.0/1 except code 413 (Automatic panoramic sliding sunroof) Paint stage 3, if damaged point is in area of rear window. |
AR67.20-P-2000LW |
| 4 | Remove liftgate. | Model 253.3 except code 413 (Automatic panoramic sliding sunroof) Paint stage 3, if damaged point is in area of liftgate. |
AR72.20-P-1020LWX . |
| 5 | Mask off mating surfaces around center roc paneling. | ||
| 6 | Cover areas of vehicle that are not to be painted using film. |
