Prepare Poly-V-Belt Tensioning Device For Installation - AR13.25-P-3220-01MRH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264
with code B01 (48V technology)
Pre-tension the tensioning device if the poly-V belt has ripped as the device will have been fully released.
Otherwise it is not possible to guarantee sufficient belt tensioning.

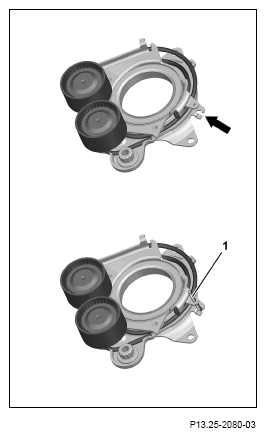

- Turn the tensioning pulley bracket to installation position (arrow) and insert the installation pin (1).

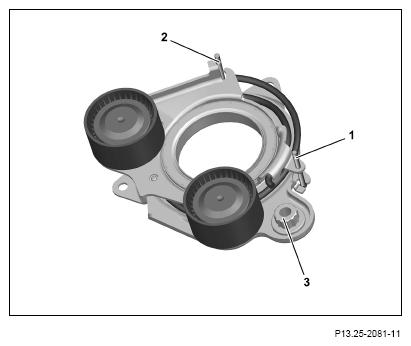

- Turn the tensioning device on the multipoint unit (3) counter-clockwise and insert the installation pin (2) into the installation bore hole.
In this process, the installation pin (1) must remain installed.
- Remove the installation pin (1).
Only remove the installation pin (2) after having positioned the poly-V belt.
