Remove/Install Trim Strip On Dashboard - AR68.10-P-1180LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 253
| Remove/install | |||
| 1.1 | Remove cover on center console | Model 205 with transmission 722, 724, 725 Model 253 with transmission 724, 725 |
AR68.20-P-2350LW |
| 1.2 | Remove cover for upper control panel control unit | Model 205 with transmission 716 Model 253 with transmission 716 |
AR68.20-P-2313LW |
| 2 | Remove audio/COMAND display (A40/8) | AR82.60-P-7722LW | |

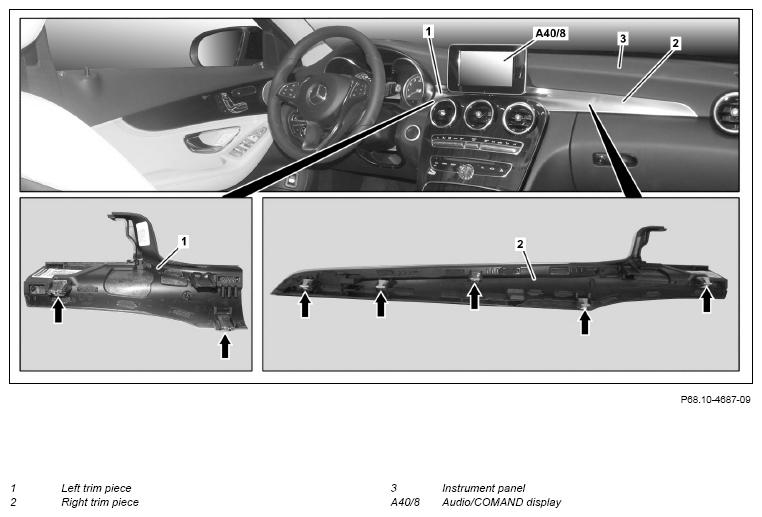

| 3 | Unclip left trim piece (1) or right trim piece (2) on sheet metal clips (arrows) from instrument panel (3) | Fig 1 | |
| 4 | Install in the reverse order |
