Remove/Install Lock Cylinder On Glove Compartment Lock - AR68.10-P-1250W

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 166, 172.4, 204, 205, 207, 212, 213, 218, 238, 253, 292, 293

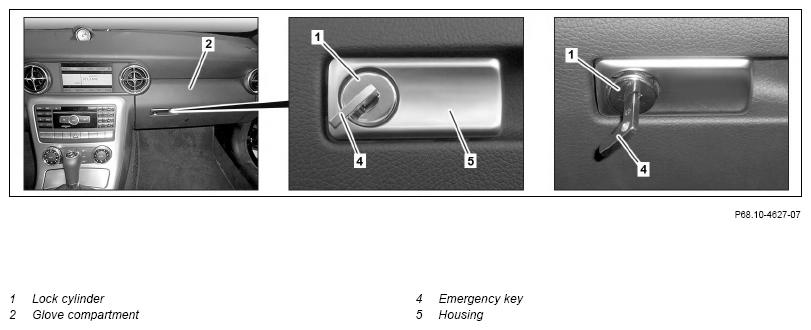

G14547131Courtesy of MERCEDES-BENZ USA

Shown on model 172.4

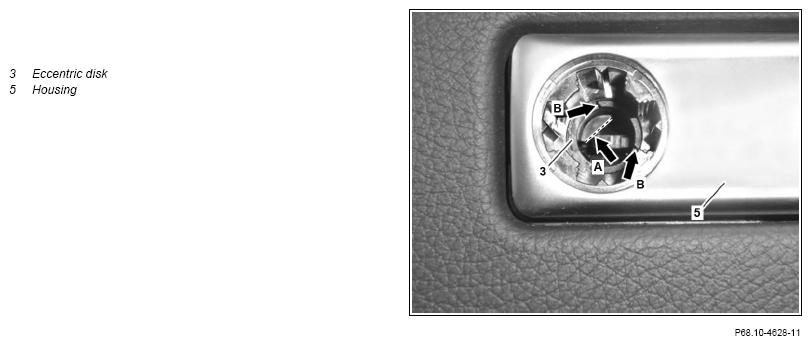

G14547132Courtesy of MERCEDES-BENZ USA

Shown on model 172.4

REMOVING Remove
1 Insert emergency key (4) into lock cylinder (1) and turn approx. 45° as shown.
2 Remove lock cylinder (1) with emergency key (4) from housing (5). IMPORTANT Hold housing (5).
INSPECT Check
3 Check position of edge (arrow A) of eccentric disk (3) in housing (5). IMPORTANT The edge (arrow A) of the eccentric disc (3) must be at approx. 45° as shown in the figure.
IMPORTANT Model 166.### 2#, 172.4## 2#, 204.### 2#, 205.### 2#, 207.### 2#, 212.### 2#, 213.### 2#, 218.### 2#, 238.### 2#, 253.### 2#, 292.### 2#, 293.### 2# The positions of the edges (arrows A and B) are turned 180°.
4 Correct position of eccentric disk (3) at edges (arrow B). If required.
Do not press to eccentric disk (3) in axial direction.
Otherwise the eccentric disk (3) can be pressed off of the housing (5).
IMPORTANT Turn eccentric disk (3) at edges (arrow B).
INSTALLING Install
5 Insert lock cylinder (1) into housing (5) in 45° position with the emergency key (4). IMPORTANT Lock cylinder (1) should arrest noticeably.
6 Remove emergency key (4) from lock cylinder (1).
