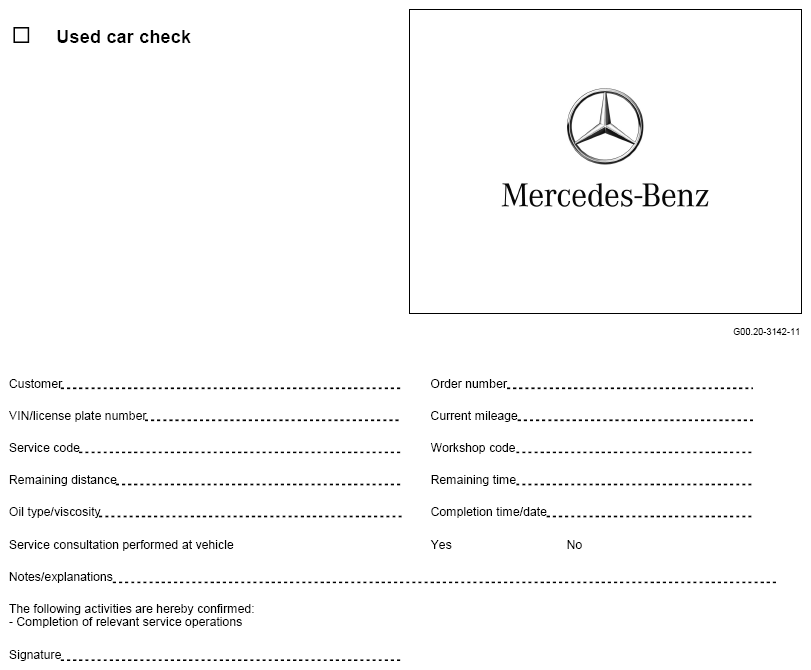

Used Vehicle Check - AP00.20-P-0084A

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463

Courtesy of MERCEDES-BENZ USA

U Completed [X]			Input condition not OK:	ⓧ
		General
□		Check vehicle for any unresolved service measures.	................................................. To be performed by the service advisor. If problems are determined, ↓ conduct unresolved service measures. After obtaining special order.	◦
	□	If the vehicle needs to be moved, pay attention to engine and transmission operation.	................................................. If problems are determined, ↓ Perform fault detection and extended diagnosis. After obtaining special order.	◦
		Vehicle exterior
	□	Check condition of vehicle exterior.	.................................................	◦	AP60.00-P-6048U
	□	Check condition of windshield.	.................................................	◦	AP67.10-P-6750A
	□	Check exterior lighting for proper operation.	.................................................	◦	AP82.10-P-8252EW
	□	Check windows for cracks, stone chipping, opacity and any other damage, and enter into table.	................................................. Vehicle glazing, Outside mirrors, Headlamp and rear lamp covers.	◦
	□	Check condition of wiper blades.	.................................................	◦	AP82.30-P-8253G
	□	Check and correct headlamp adjustment.	.................................................	◦	AP82.10-P-8249U
	□	Check due date for main inspection.	................................................. Enter due date for main inspection here:	◦
		Vehicle interior
	□	Check warning and function indicator lamps in instrument cluster.	.................................................	◦	AP54.30-P-5449U
	□	Check interior lighting for proper operation.	.................................................	◦
	□	Check horn for proper operation.	.................................................	◦
	□	Check windshield wipers, windshield washer system and, if necessary, headlamp cleaning system for proper operation.	.................................................	◦	AP82.30-P-8249U
	□	Check operating instructions and service booklet for completeness and condition.	.................................................	◦
	□	Check date when next service is due.	................................................. Enter due date for next service here: ____________________	◦
	□	Check function of all electrical and mechanical components and special equipment.	................................................. Equipment-dependent. Locks, Central locking, Power windows, Soft top or Vario roof operation, Seat adjustment and heating, Mirrors, Seat belts, Steering wheel locking, Heater and A/C system, Radio and communication systems, Caps and flaps on stowage boxes/trays, Cup holders.	◦
	□	Check vehicle's interior equipment for condition, soiling and any bad odors.	................................................. Equipment-dependent. Seats, Trim, Floor covering, Roof paneling.	◦
		Trunk
	□	Check luggage compartment or cargo area for damage, wear and soiling.	................................................. Equipment-dependent. Trim, Flaps.	◦
	□	Check content of trunk or load compartment for condition and completeness.	................................................. Equipment-dependent. Hazard warning triangle, Vehicle tool kit, Trailer hitch, EASY-PACK load-securing kit.	◦
	□	Check TIREFIT tire sealant.	................................................. Vehicle with TIREFIT. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle model designation) Model 463 with code ZQ0 (G 500 4x42) Enter expiration date here: Replace TIREFIT, invoice as additional operation.	◦	AP40.10-P-4054R
	□	Check/correct tire pressure spare wheel and enter set tire pressure into table.	................................................. Vehicle with spare wheel. Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293	◦	AP40.15-P-4061A
				Model 463 as of model year 2019 Model 171, 203, 209, 211, 219	AP40.15-P-4061B
				Model 243	AP40.15-P-4061EQ
				Model 461	AP40.15-P-4060G
				Model 463 up to model year 2019
	□	Check expiration date of first-aid kit (soft sided).	................................................. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463 Enter expiration date here: Replace first aid bag, invoice as an additional operation.	◦	AP68.00-P-6850EW
	□	Check that included charging cables are in good condition and are not damaged.	................................................. Model 118.386/686, 177.086/186, 247.086/786	◦	AP54.10-P-5458E
			Model 166.063, 167.117/317, 205.013/047/053/054/147/213/247/253, 213.011/016/050/053/054/153/155/2 11/216/253, 222.163/173, 242.890, 253.311/353/354/911/953/954		AP54.10-P-5458B
				Model 167.154/354 except code 830 (China version) Model 167.154/354 with code 830 (China version)	AP54.10-P-5458H
				Model 169.090	AP54.10-P-5458EZ
				Model 243	AP54.10-P-5458F
				Model 253.99	AP54.10-P-5458C
				Model 290.679	AP54.10-P-5458GT
				Model 293	AP54.10-P-5458D
		Engine compartment
	□	Check all visible parts in engine compartment for damage and fluid loss.	................................................. Model 117, 156, 169, 176, 242, 245, 246	◦	AP00.20-P-0055AK
				Model 118, 177, 247	AP00.20-P-0055I
				Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251	AP00.20-P-0055EW
				Model 166, 292	AP00.20-P-0055D
				Model 167	AP00.20-P-0055H
				Model 190	AP00.20-P-0055B
				Model 205	AP00.20-P-0055C
				Model 213, 238, 253 (except 253.99), 257, 290	AP00.20-P-0055E
				Model 217, 222	AP00.20-P-0055A
				Model 243	AP00.20-P-0055M
				Model 253.99	AP00.20-P-0055G
				Model 293	AP00.20-P-0055J
				Model 461	AP00.20-P-0053AB
				Model 463 up to model year 2019	AP00.20-P-0055F
				Model 463 as of model year 2019	AP00.20-P-0055GA
	□	Check engine oil level.	................................................. Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	AP18.00-P-1848U
	□	Check main circuit coolant level in expansion reservoir.	.................................................	◦	AP20.30-P-2049U
	□	Windshield washer system: Check/correct fluid level.	................................................. When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.	◦	AP82.35-P-8249U
□		Underside of vehicle
	'	Check all major assemblies, systems and component parts for visible damage, wear and fluid loss.	.................................................	◦	AP60.00-P-6049U
			Tires, wheels
	□	Check tires, disk wheels and spare wheel for condition, wear, damage and ease of movement.	................................................. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293, 461, 463	◦	AP40.10-P-4048U
	□	Correct tire pressure and enter set tire pressure in table.	.................................................	◦
				Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	AP40.15-P-4061A
				Model 171, 203, 209, 211, 219	AP40.15-P-4061B
				Model 243	AP40.15-P-4061EQ
				Model 461	AP40.15-P-4060G
				Model 463 up to model year 2019
	□		Brake system
		Perform brake test and enter result in table.	................................................. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463	◦
				Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293	AP42.00-P-4290BA
				Model 463 as of model year 2019
				Model 243	AP42.00-P-4290EQ
				Model 461 Model 463 up to model year 2019	AP42.00-P-4290G
		□	Concluding work Conduct a road test.
		□	Miscellaneous Enter any other faults into table.

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK.
Condition not OK.

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle	Spare tire
bar/psi

REMARKS

Item

Comment

DAMAGE

Item

Damage

MISCELLANEOUS
