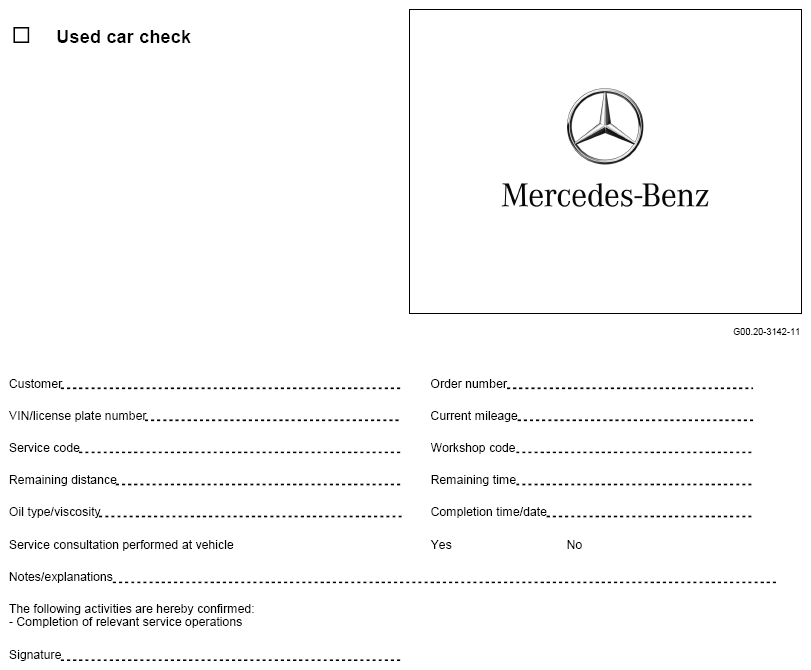

Used Car Check (Young Stars) - AP00.20-P-0085A

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463

Courtesy of MERCEDES-BENZ USA

U Completed [X]		Input condition not OK:	ⓧ
		General
□	Check vehicle for any unresolved service measures.	.................................... To be performed by the service advisor. If problems are determined, ↓ conduct unresolved service measures. After obtaining special order. ◦	◦
□	If the vehicle needs to be moved, pay attention to engine and transmission operation.	.................................... If problems are determined, ↓ Perform fault detection and extended diagnosis. After obtaining special order.	◦
	Vehicle exterior
□	Check condition of vehicle exterior.	....................................	◦	AP60.00-P-6048U
□	Check condition of windshield.	....................................	◦	AP67.10-P-6750A
□	Check exterior lighting for proper operation.	....................................	◦	AP82.10-P-8252EW
□	Check windows for cracks, stone chipping, opacity and any other damage, and enter into table.	.................................... Vehicle glazing, Outside mirrors, Headlamp and rear lamp covers.	◦
□	Check condition of wiper blades.	....................................	◦	AP82.30-P-8253G
□	Check and correct headlamp adjustment.	....................................	◦	AP82.10-P-8249U
□	Check due date for main inspection.	.................................... Enter due date for main inspection here: If due date of main inspection is ≤ 21 months, ↓ Perform main inspection.	◦
	Vehicle interior
□	Check warning and function indicator lamps in instrument cluster.	....................................	◦	AP54.30-P-5449U
□	Check interior lighting for proper operation.	....................................	◦
□	Check horn for proper operation.	....................................	◦
□	Check windshield wipers, windshield washer system and, if necessary, headlamp cleaning system for proper operation.	....................................	◦	AP82.30-P-8249U
□	Read out fault memory and then delete.	.................................... Model 117, 156, 164, 166, 169, 171.4, 172, 176, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 231, 242, 245, 246, 251, 292, 461	◦	AD00.00-P-2000-04A
			Model 463 up to model year 2019 Model 118, 177, 243, 247	AD00.00-P-2000-06MFA
			Model 167	AD00.00-P-2000-06ME
			Model 190, 205, 213, 217, 222, 253	AD00.00-P-2000-04B
			Model 463 as of model year 2019 Model 257, 290, 293	AD00.00-P-2000-06FR
			Model 238	AD00.00-P-2000-06LWO
□	Check kilometer reading for plausibility.	.................................... Maintenance history/service booklet plausible, Vehicle degree of wear relative to kilometer reading plausible, Readout of fault memory plausible.	◦
□	Check operating instructions and service booklet for completeness and condition.	....................................	◦
□	Check date when next service is due.	.................................... Enter due date for service here: __________________	◦
		If the time remaining until the next service is ≤ 7500 km (4500 mi) or 6 months, ↓ bring service forward.
□	Check function of all electrical and mechanical components and special equipment.	.................................... Equipment-dependent. Locks, Central locking, Power windows, Soft top or Vario roof operation, Seat adjustment and heating, Mirrors, Seat belts, Steering wheel locking, Heater and A/C system, Radio and communication systems, Caps and flaps on stowage boxes/trays, Cup holders.	◦
□	Check vehicle's interior equipment for condition, soiling and any bad odors.	.................................... Equipment-dependent. Seats, Trim, Floor covering, Roof paneling.	◦
	Trunk
□	Check luggage compartment or cargo area for damage, wear and soiling.	.................................... Equipment-dependent. Trim, Flaps.	◦
□	Check content of trunk or load compartment for condition and completeness.	.................................... Equipment-dependent. Hazard warning triangle, Vehicle tool kit, Trailer hitch, EASY-PACK load-securing kit.	◦
□	Check TIREFIT tire sealant.	.................................... Vehicle with TIREFIT. Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 with code LQ0 (G650 Landaulet) Model 463 with code MUK2 (USA or Canada vehicle model designation) Model 463 with code ZQ0 (G 500 4x42) Enter expiration date here: Replace TIREFIT, invoice as additional operation.	◦	AP40.10-P-4054R
□	Check/correct tire pressure spare wheel and enter set tire pressure into table.	.................................... Vehicle with spare wheel. Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	AP40.15-P-4061A
		Model 171, 203, 209, 211, 219		AP40.15-P-4061B
		Model 243		AP40.15-P-4061EQ
		Model 461		AP40.15-P-4060G
		Model 463 up to model year 2019
□	Check expiration date of first-aid kit (soft sided).	.................................... Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 463 Enter expiration date here: Replace first aid bag, invoice as an additional operation.	◦	AP68.00-P-6850EW
□	Check that included charging cables are in good condition and are not damaged.	.................................... Model 118.386/686, 177.086/186, 247.086/786	◦	AP54.10-P-5458E
			Model 166.063, 167.117/317, 205.013/047/053/054/147/213/247/253, 213.011/016/050/053/054/153/155/211/216/253, 222.163/173, 242.890, 253.311/353/354/911/953/954	AP54.10-P-5458B
			Model 167.154/354 except code 830 (China version) Model 167.154/354 with code 830 (China version)	AP54.10-P-5458H
			Model 169.090	AP54.10-P-5458EZ
			Model 243	AP54.10-P-5458F
			Model 253.99	AP54.10-P-5458C
			Model 290.679	AP54.10-P-5458GT
			Model 293	AP54.10-P-5458D
	Engine compartment
□	Check all visible parts in engine compartment for damage and fluid loss.	.................................... Model 117, 156, 169, 176, 242, 245, 246	◦	AP00.20-P-0055AK
			Model 118, 177, 247	AP00.20-P-0055I
			Model 164, 171, 172, 197.3/4, 203, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 251	AP00.20-P-0055EW
			Model 166, 292	AP00.20-P-0055D
			Model 167	AP00.20-P-0055H
			Model 190	AP00.20-P-0055B
			Model 205	AP00.20-P-0055C
			Model 213, 238, 253 (except 253.99), 257, 290	AP00.20-P-0055E
			Model 217, 222	AP00.20-P-0055A
			Model 243	AP00.20-P-0055M
			Model 253.99	AP00.20-P-0055G
			Model 293	AP00.20-P-0055J
			Model 461	AP00.20-P-0053AB
			Model 463 up to model year 2019	AP00.20-P-0055F
			Model 463 as of model year 2019	AP00.20-P-0055GA
□	Check engine oil level.	.................................... Engine 111, 112, 113, 133, 139, 152, 156, 157, 159, 176, 177, 178, 256, 260, 264, 266, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 282, 607, 608, 611, 612, 626, 628, 629, 640, 642, 646, 647, 648, 651, 654, 656	◦	AP18.00-P-1848U
□	Check main circuit coolant level in expansion reservoir.	....................................	◦	AP20.30-P-2049U
□	Windshield washer system: Check/correct fluid level.	....................................	◦	AP82.35-P-8249U
			When using cleaning compounds for summer/winter, and depending on the ambient temperature, observe the mixing ratio.
□	Underside of vehicle Check all major assemblies, systems and component parts for visible damage, wear and fluid loss.	....................................	◦	AP60.00-P-6049U
	Tires, wheels
□	Check tires, disk wheels as well as spare wheel for condition, wear and damage as well as ease of movement.	.................................... Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293, 461, 463	◦	AP40.10-P-4048U
□	Correct tire pressure and enter set tire pressure in table.	.................................... Model 117, 118, 156, 164, 166, 167, 169, 172, 176, 177, 190, 197.3/4, 204, 205, 207, 212, 213, 216, 217, 218, 221, 222, 230, 231, 238, 242, 245, 246, 247, 251, 253, 257, 290, 292, 293 Model 463 as of model year 2019	◦	AP40.15-P-4061A
			Model 171, 203, 209, 211, 219	AP40.15-P-4061B
			Model 243	AP40.15-P-4061EQ
			Model 461	AP40.15-P-4060G
			Model 463 up to model year 2019
	Brake system
□	Perform brake test and enter result in table.	.................................... Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 243, 245, 246, 247, 251, 253, 257, 290, 292, 293, 461, 463 Model 117, 118, 156, 164, 166, 167, 169, 171, 172, 176, 177, 190, 197.3/4, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245 (except 245.286), 246, 247, 251, 253, 257, 290, 292, 293	◦	AP42.00-P-4290BA
			Model 463 as of model year 2019
			Model 243	AP42.00-P-4290EQ
			Model 461	AP42.00-P-4290G
			Model 463 up to model year 2019
	□	Concluding work Conduct a road test.	.................................... ◦
	□	Miscellaneous Enter any other faults into table.	.................................... ◦

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK.
Condition not OK.

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle	Spare tire
bar/psi

REMARKS

Item

Comment

DAMAGE

Item

Damage

MISCELLANEOUS
