(Perform Special Service, Gas System Test - AP00.20-P-1310E)

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253.99

MODIFICATION NOTES

16.01.2020

Adaptation of wording

Courtesy of MERCEDES-BENZ USA

GAP	H	E	Input condition not OK:		ⓧ
Completed
[X]	[X]	[X]

			Perform at every "Special service, perform gas system test"
□	□	□	Perform check before driving into working area.	...............	◦	AP00.20-P-0036A
			Perform gas system test for first time after 3 years, then every 2 years or each time after opening of gas carrying component parts in the fuel cell system or after an accident or a fire or thermal exposure > 85°C/185 □ on the gas tank, gas carrying lines, connections and valves
□			Check requirement for gas system test.	...............	◦	AP00.20-P-0037A
□			Check fuel cell system using on-board hydrogen sensors.	...............	◦	AP06.00-P-0655A
□			Check condition of gas cylinders.	...............	◦	AP47.10-P-1200C
□			Check gas carrying lines, connections and valves.	...............	◦	AP47.25-P-0100E

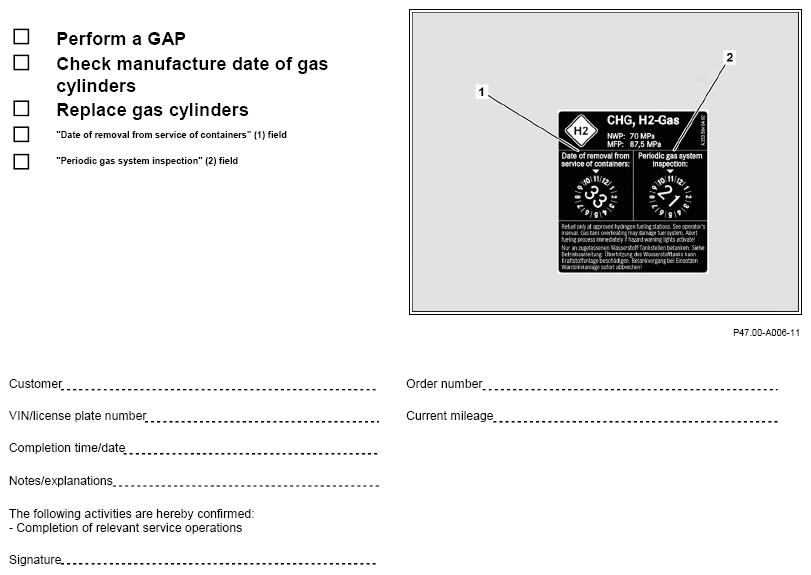

□			The filled-out service sheet "Special service, perform gas system test" is to have the company stamp placed next to the signature, then be handed over to the customer and a copy of it archived in a tamperproof manner along with the given work order. If there are no defects present, attach corresponding test badge in the "Periodic gas system inspection" (2) field in the fuel filler flap.	............... Along with the service sheet "Special service, perform gas system test", the country-specific legislation with regard to recurring gas system tests and the documentation thereof must be observed. In Germany the GAP must also be documented along with the service sheet "Special service, perform gas system test" as with 41 a of the StVZO (German vehicle licensing regulations).	◦
			Check the manufacturing date of the gas cylinders, for the first time after 7 years, and then annually
	□		Check the manufacturing date of the gas cylinders.	...............	◦	AP47.10-P-1201E
			Replace the gas cylinders, at the latest every 10 years or if 10 years are reached or exceeded during the next service interval or if the gas cylinder has been damaged and then needs to be replaced
		□	Replace the gas cylinders.	............... After replacing the gas cylinders, attach a corresponding test badge for the expiration date of the oldest gas cylinder in the "Date of removal from service of containers" (1) field in the fuel filler flap.	◦	AP47.10-P-1205E
