Remove/Install Telestart Receiver - AR83.70-P-0003LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/2
with code 228 (Additional warm water heating)
with code B24 (Remote control for Auxiliary heating)
Model 253
with code 228 (Additional warm water heating)
with code B24 (Remote control for Auxiliary heating)
Shown on model 205.0
Fig 1: Telestart/Stationary Heater Radio Remote Control Receiver Components Location - Model 253 With Codes 228, B24 (Shown On Model 205.0)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove side paneling in left trunk | Model 205.0 with code 228 (Additional warm water heating) with code B24 (Remote control for Auxiliary heating) | AR68.30-P-4800LW |
| 1.2 | Loosen side paneling from left side of load compartment in rear area | Model 205.2 with code 228 (Additional warm water heating) with code B24 (Remote control for Auxiliary heating) Model 253 with code 228 (Additional warm water heating) with code B24 (Remote control for Auxiliary heating) |
|
| Model 205.2 with code 228 (Additional warm water heating) with code B24 (Remote control for Auxiliary heating) | AR68.30-P-1180LWS | ||
| Model 253 (except 253.992/993) with code 228 (Additional warm water heating) with code B24 (Remote control for Auxiliary heating) | AR68.30-P-1180LWG | ||
| Model 253.992/993 with code 228 (Additional warm water heating) with code B24 (Remote control for Auxiliary heating) | AR68.30-P-1180RFW | ||

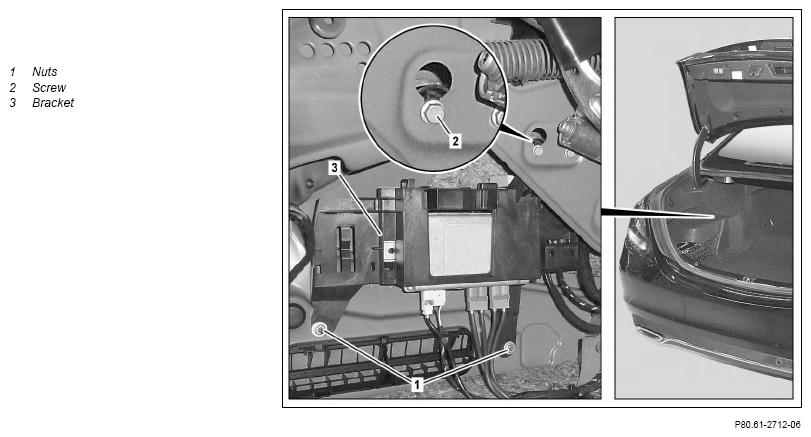

| 2 | Unscrew nuts (1), loosen screw/bolt (2) and place bracket (3) to one side with lines connected | ||

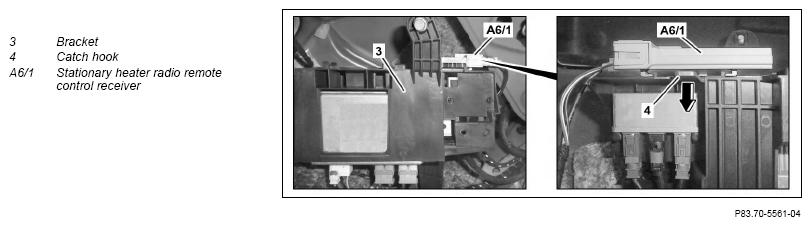

| 3 | Press catch hook (4) downward (arrow) and move out stationary heater radio remote control receiver (A6/1) | ||
| 4 | Disconnect antenna line and electrical connector from stationary heater radio remote control receiver (A6/1) | ||
| 5 | Install in the reverse order | ||
| 6 | Teach in stationary heater radio remote control transmitter | When replacing the stationary heater radio remote control receiver (A6/1). | AR83.70-P-0013-01LC |
