Remove/Install Right Side Air Vent/Outlet Temperature Sensor - AR83.30-P-8082LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 253
Model 293
Shown on model 205

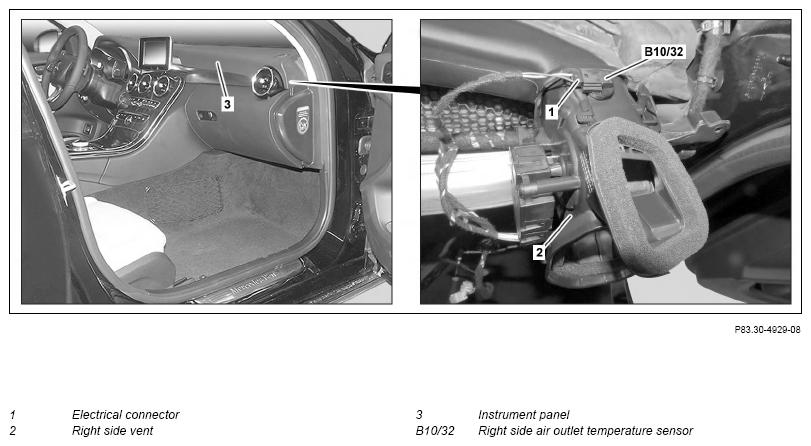

Fig 1: Right Side Air Vent/Outlet Temperature Sensor Components Location - Model 253 (Shown On Model 205)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove instrument panel (3). | Model 205, 253 | AR68.10-P-1000LW |
| Model 293 | AR68.10-P-1000EQ | ||
| 2 | Disconnect electrical connector (1). | ||
| 3 | Turn air outlet temperature sensor of right side air vent (B10/32) 90° counterclockwise and remove from right side air vent (2). | ||
| 4 | Install in the reverse order. |
