Remove/Install Right A-Pillar Air Distribution Actuator Motor - AR83.10-P-2047LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 253
Model 293

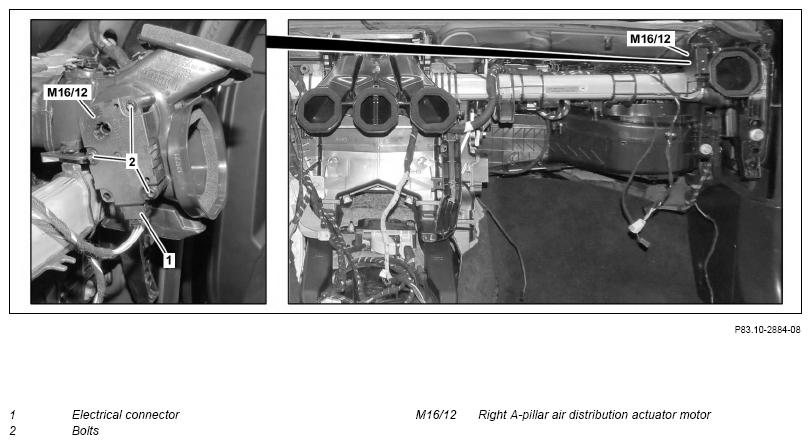

Fig 1: Right A-Pillar Air Distribution Actuator Motor Components Location - Model 253 (Shown On Model 205)
Shown on model 205 with code 581 (Automatic air conditioning), with instrument panel removed
| Remove/install | |||
| 1 | Remove instrument panel. | Model 205, 253 | AR68.10-P-1000LW |
| Model 293 | AR68.10-P-1000EQ | ||
| 2 | Disconnect electrical connector (1). | ||
| 3 | Unscrew screws (2) and remove right A-pillar air distribution actuator motor (M16/12). | ||
| 4 | Install in the reverse order. | ||
| 5 |
Connect diagnostic system, teach-in and normalize right A-pillar air distribution actuator motor (M16/12), and clear fault memory. | Model 205, 253 | AD00.00-P-2000-04B |
| Model 293 Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors |
AD00.00-P-2000-06FR |
