Remove/Install Rear Passenger Compartment Center Air Vent/Outlet Temperature Sensor - AR83.30-P-8089LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

with code 581 (Automatic air conditioning)

Model 253

with code 581 (Automatic air conditioning)

Model 293

with code 581 (Automatic air conditioning)

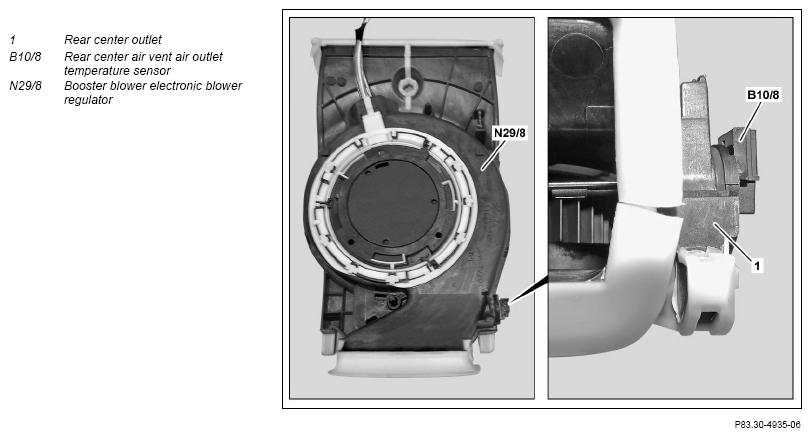

Fig 1: Rear Center Air Vent Outlet Temperature Sensor Components Location - Model 253 With Code 581

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove center console.	Model 253 with transmission 724, 725 with code 581 (Automatic air conditioning) Model 293 with code 581 (Automatic air conditioning)	AR68.20-P-2000LWG
		Model 205.0/2 with transmission 716 with code 581 (Automatic air conditioning) Model 253 with transmission 716 with code 581 (Automatic air conditioning)	AR68.20-P-2000LWA
		Model 205 with transmission 722, 724, 725 with code 581 (Automatic air conditioning)	AR68.20-P-2000LW
2	Remove booster blower electronic blower regulator (N29/8) from center console.
3	Rotate rear center air vent air outlet temperature sensor (B10/8) through 90° in counterclockwise direction and pull out of rear center air vent (1).
4	Install in the reverse order.
