Remove/Install Left A-Pillar Air Distribution Actuator Motor - AR83.10-P-2046LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 253

Model 293

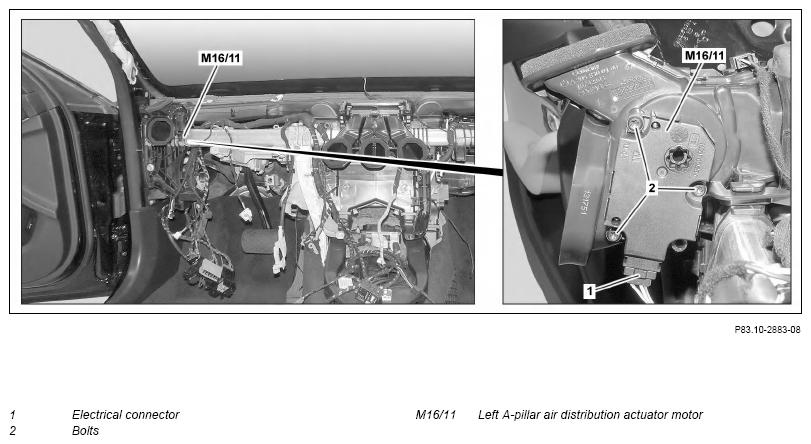

Fig 1: Left A-Pillar Air Distribution Actuator Motor Components Location - Model 253 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205 with CODE 581 (automatic air conditioning)

	Remove/install
1	Remove instrument panel.	Model 205, 253	AR68.10-P-1000LW
		Model 293	AR68.10-P-1000EQ
2	Disconnect electrical connector (1).
3	Unscrew screws (2) and remove left A-pillar air distribution actuator motor (M16/11).
4	Install in the reverse order.
5	Connect diagnostic system, teach-in and normalize left A-pillar air distribution actuator motor (M16/11), and read out fault memory.
		Model 205 Model 253	AD00.00-P-2000-04B
		Model 293 Menu point: Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors	AD00.00-P-2000-06FR
