Remove/Install Front Evaporator Shutoff Valve - AR83.30-P-5510LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.012/013/047/053/054/147/212/213/247/253
Model 253.311/353/354/911/953/954
Model 293
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234y refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notes on handling refrigerant R134a | AH83.30-P-0003-01KOA | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Discharge air conditioning system. | Model 205.012/013/047/053/054/147/212/213/247/253 Model 253.311/353/354/911/953/954 |
AR83.30-P-1760LW |
| Model 293 | AR83.30-P-1760EQ | ||
| 2 | Remove windshield wiper system. | AR82.30-P-6400LW | |

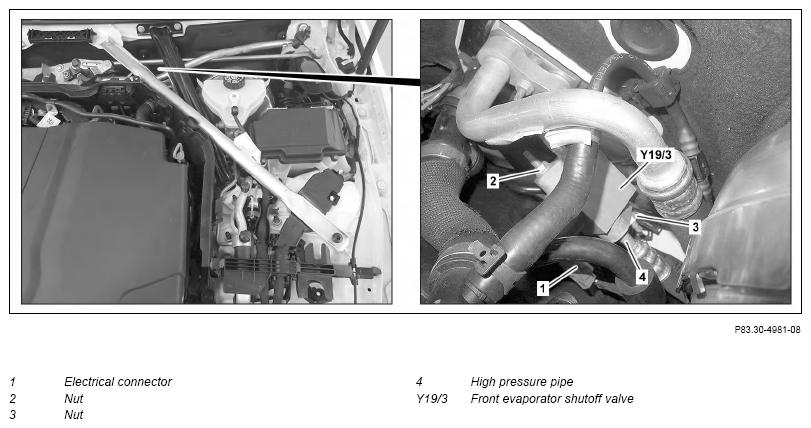

| 3 | Disconnect electrical connector (1). | ||
| 4 | Unbolt nut (2). | Model 253.311/353/354/911/953/954Nut, refrigerant line to front evaporator shutoff valve |
*BA83.30-P-1009-01Q |
| *BA83.30-P-1007-01V | |||
| 5 | Remove front evaporator shutoff valve (Y19/3) from high-pressure line and seal openings. | Fig 2 | |
| 6 | Unscrew nut (3). | Model 253.311/353/354/911/953/954Nut, refrigerant line to front evaporator shutoff valve |
*BA83.30-P-1009-01Q |
| *BA83.30-P-1007-01V | |||
| 7 | Remove front evaporator shutoff valve (Y19/3) from high-pressure line (4) and seal openings. | Fig 2 | |
| 8 | Install in the reverse order. |
AIR CONDITIONING
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA83.30-P-1007-01V | Nut, refrigerant line to front evaporator shutoff valve | Nm | 12 |
AIR CONDITIONING
| Number | Designation | Model 205 | Model 253 | |
|---|---|---|---|---|
| BA83.30-P-1009-01Q | Nut, refrigerant line to front evaporator shutoff valve | Nm | 12 | 12 |
