Remove/Install Evaporator Temperature Sensor - AR83.30-P-8085LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 253

Model 293

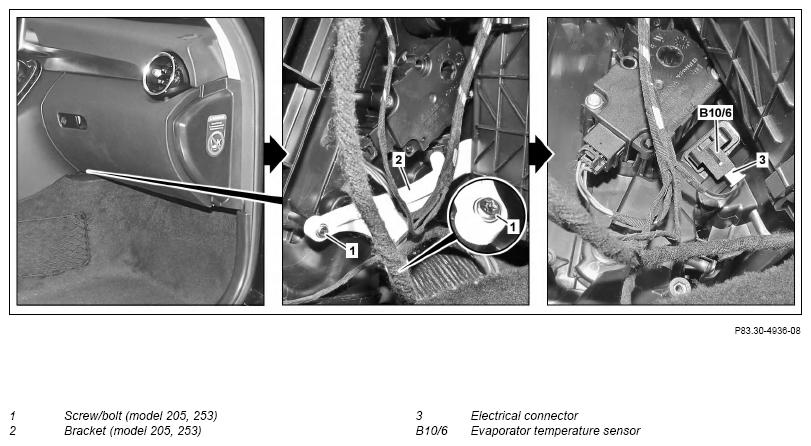

Fig 1: Evaporator Temperature Sensor Components Location - Model 253 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205 with CODE 581 (automatic air conditioning)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove trim under front passenger side instrument panel.	Model 205, 253	AR68.10-P-1520LW
		Model 213	AR68.10-P-1502LWE
		Model 293	AR68.10-P-1502EQ
2	Unscrew screw/bolts (1).	Model 205, 253
3	Remove holder (2) and place to one side.	Model 205, 253
4	Disconnect electrical connector (3).
5	Remove evaporator temperature sensor (B10/6).
6	Install in the reverse order.
