Remove/Install Electric Expansion Valve - AR83.30-P-5522LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205.013/053/054/213/253

Model 253.311/353/354/911/953/954

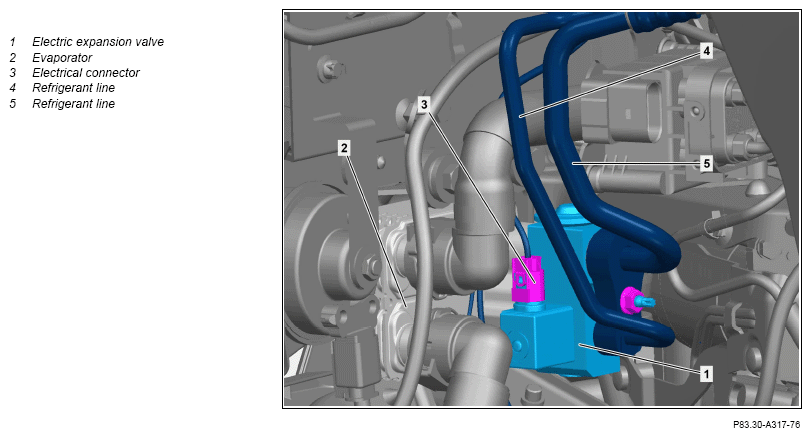

Fig 1: Electric Expansion Valve Components Location - Model 253.953

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01KOA
Notice	Procedure for a damaged or leaky air conditioning system		AH83.30-P-0004-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Discharge air conditioning system.		AR83.30-P-1760LW
2	Remove front left wheel and tire assembly.		AR40.10-P-1102A
3	Remove front section of left front fender liner.	Only install front section of left front fender liner after leak test.	AR88.10-P-1300LW
4	Release and disconnect electrical connection (3).
5	Remove refrigerant lines (4, 5) from electric expansion valve (1) and seal openings with suitable stop plugs.
	Compressor oils (specification 362.1)	Install new seal and wet with compressor oil.	BB00.40-P-0362-01A
		Nut, refrigerant line to expansion valve	*BA83.30-P-1003-01Q
		Assembly tool	Fig 2
		Record plug	Fig 3
6	Remove electric expansion valve (1) from evaporator (2) and seal openings with suitable stop plugs.
	Compressor oils (specification 362.1)	Install new seal and wet with compressor oil.	BB00.40-P-0362-01A
		Bolt, expansion valve to retaining plate	*BA83.30-P-1005-01Q
		Assembly tool	Fig 2
		Record plug	Fig 3
7	Install in the reverse order.

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1003-01Q	Nut, refrigerant line to expansion valve	Nm	12	12

AIR CONDITIONING

Number	Designation		Model 205	Model 253
BA83.30-P-1005-01Q	Bolt, expansion valve to retaining plate	Nm	7	7

Fig 2: Identifying Assembly Tool (000 589 93 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
