Remove/Install Center Air Vent - AR83.10-P-4503LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 253

Shown on model 205

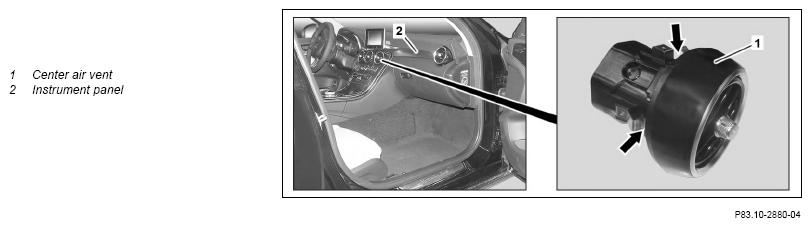

Fig 1: Center Air Vent Components Location - Model 253 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Insert extraction hooks into side cutouts (arrows) on center air vent (1) and pull center air vent (1) out of instrument panel (2)	Make sure that the marking "TOP" on the center air vent (1) is pointing upward. Extraction hook	Fig 2
2	Install in the reverse order

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
