Remove/Install Blower Motor - AR83.25-P-1200LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
Model 213
Model 253

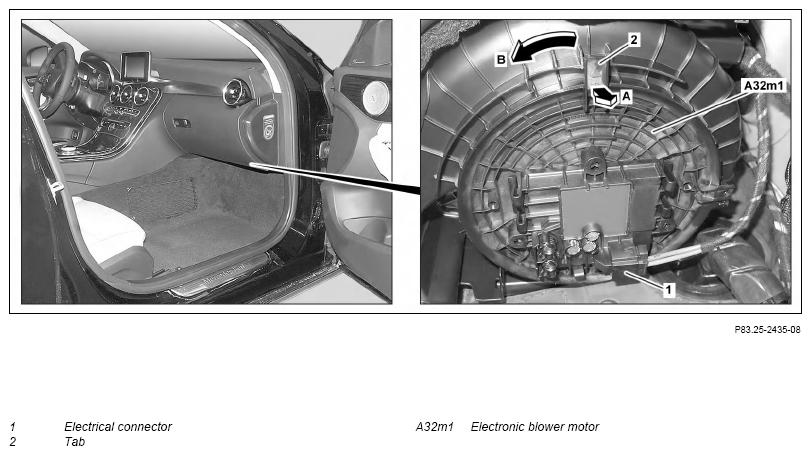

Shown on model 205
| Remove/install | |||
| 1 | Remove cover beneath instrument panel at passenger side | Model 205, 253 | AR68.10-P-1520LW |
| Model 213 | AR68.10-P-1502LWE | ||
| 2 | Disconnect electrical connector (1) | ||
| 3 | Release tab (2) (arrow A) | ||
| 4 | Turn electronic blower motor (A32m1) to end stop (arrow B) | ||
| 5 | Remove electronic blower motor (A32m1) downwards | Otherwise an imbalance may be created at the fan wheel. |
|
| 6 | Install in the reverse order |
