Remove/Install Air Vent Ionizer - AR83.40-P-0150LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

with code P21 (Air quality package)

Model 213

with code P21 (Air quality package)

Model 253

with code P21 (Air quality package)

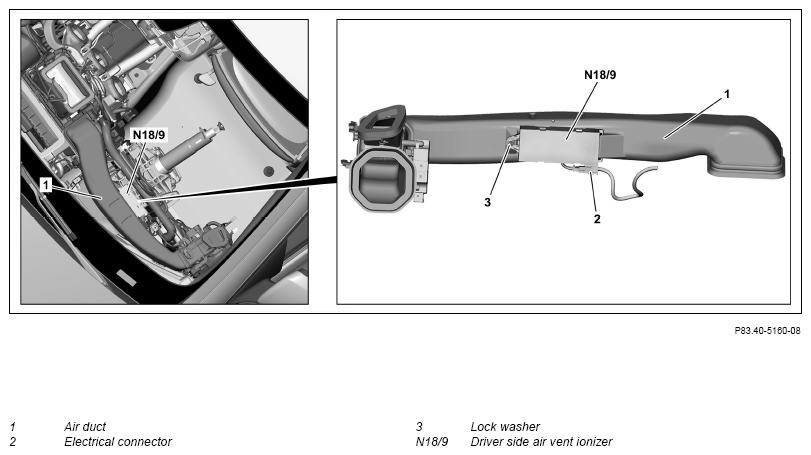

Fig 1: Air Vent Ionizer Components Location - Model 253 With Code P21 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0 except code 463 (Head-up display)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove dashboard	Model 205, 213, 253 with code P21 (Air quality package) except code 463 (Head-up display) Model 205, 253 with code P21 (Air quality package) except code 463 (Head-up display)	AR68.10-P-1000LW
		Model 213 with code P21 (Air quality package) except code 463 (Head-up display)	AR68.10-P-1000LWE
1.2	Remove head-up display	Model 205, 213, 253 with code 463 (Head-up display) with code P21 (Air quality package)	AR54.30-P-6400LW
2	Disconnect electrical connection (2)
3	Remove lock washer (3)	Replace lock washer (3).
4	Remove driver side air vent ionizer (N18/9) from air duct (1)
5	Install in the reverse order
