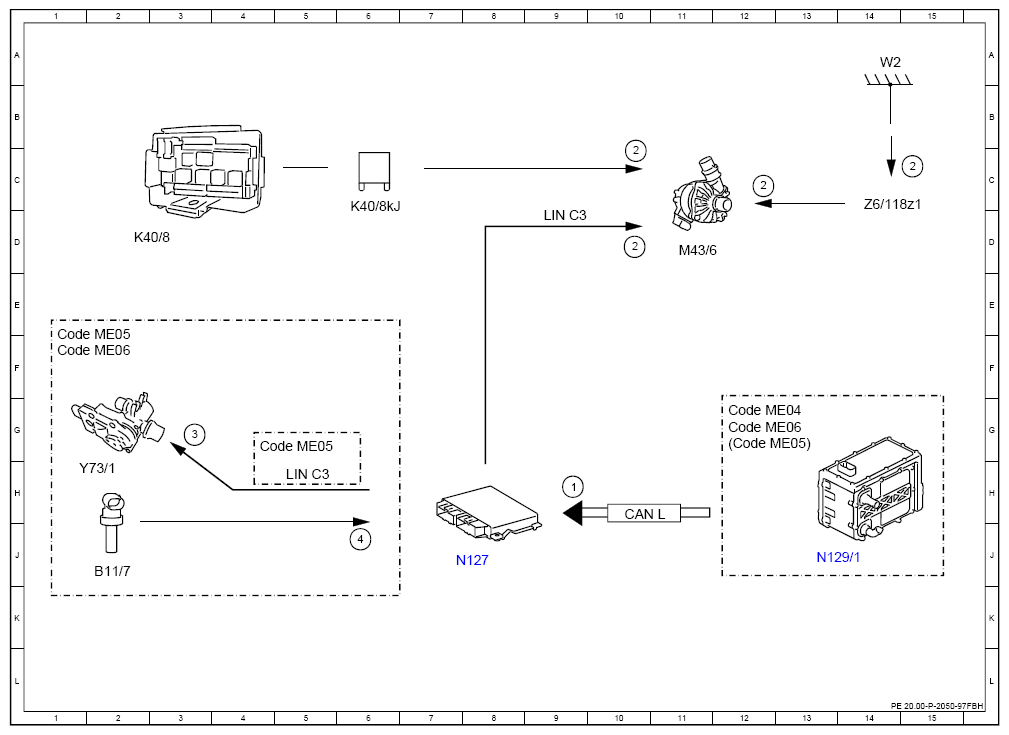

Electrical Function Schematic For Power Electronics And DC/DC Converter Cooling Circuit - PE20.00-P-2050-97FBH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.920 in model 205.047/147/247
Engine 274.920 in model 253.353/953
Engine 274.920 in model 253.354/954
Engine 651.921 in model 205.012/212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Low-temperature circuit temperature sensor, signal | 9H |
| 2 | Low temperature circuit circulation pump 1, actuation | 10C |
| 2 | Low temperature circuit circulation pump 1, actuation | 10D |
| 2 | Low temperature circuit circulation pump 1, actuation | 12C |
| 2 | Low temperature circuit circulation pump 1, actuation | 14C |
| 3 | Low-temperature circuit switchover valve, actuation | 3G |
| 4 | Low-temperature circuit temperature sensor, signal | 6J |
| B11/7 | Low-temperature coolant circuit 2 temperature sensor | 2J |
| CAN L | Hybrid CAN | 10H |
| Code ME04 | Hybrid drive 20 KW VARIANT | 12G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 12G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 4G |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 1F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 12G |
| K40/8 | Engine fuse and relay module | 2D |
| K40/8kJ | CPC relay | 6D |
| LIN C3 | Drivetrain LIN | 9D |
| LIN C3 | Drivetrain LIN | 5H |
| M43/6 | Low temperature circuit circulation pump 1 | 11D |
| N127 | Drivetrain control unit | 8J |
| N129/1 | Power electronics control unit | 13J |
| W2 | Right front ground point (at lamp unit) | 14A |
| Y73/1 | Low-temperature circuit switchover valve | 1H |
| Z6/118z1 | Right front ground line connector sleeve (in wiring harness) | 14C |
