Remove/Install Low-Temperature Circuit Switchover Valve - AR20.00-P-1050MRA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274 in model 205, 253
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Shown on model 205
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front lower engine compartment paneling. | AR61.20-P-1105LW | |
| 2 | Drain coolant of low-temperature circuit. | AR09.41-P-6834LW | |

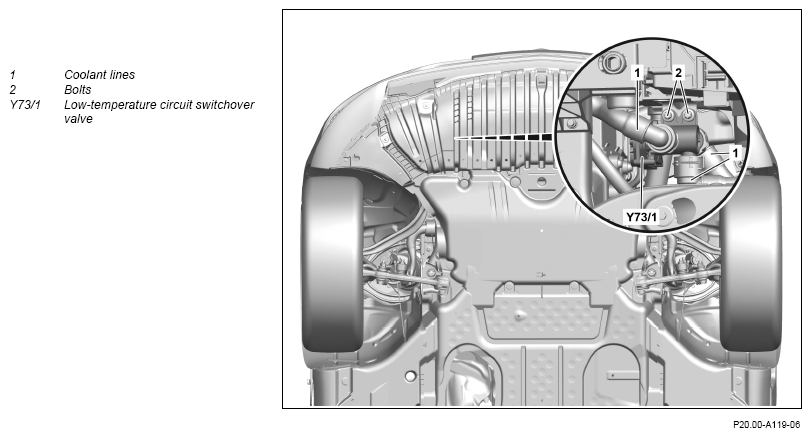

| 3 | Remove screws (2). | ||
| 4 | Remove coolant lines (1) at low-temperature circuit switchover valve (Y73/1) and seal openings with suitable protective covers. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 5 | Remove low-temperature circuit switchover valve (Y73/1) until electrical connector is accessible. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 6 | Release and disconnect electrical connector a low-temperature circuit switchover valve (Y73/1). | ||
| 7 | Install in the reverse order. |
