Remove/Install Coolant Thermostat - AR20.10-P-2461MRI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 253
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove air intake pipe. | AR09.10-P-8131MRI | |
| 2 | Drain off coolant. | AR20.00-P-1142MRI | |

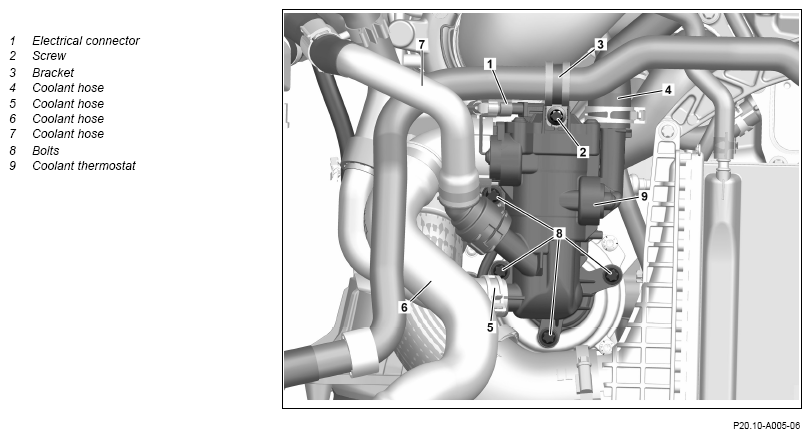

| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove screw (2) and remove bracket (3) from coolant thermostat (9). | *BA20.10-P-1005-01CA | |
| 5 | Remove coolant hoses (6, 7) from coolant thermostat (9), place to one side and seal. | AR20.20-P-7441-01RQ | |
| Fig 3 | |||
| 6 | Remove coolant hoses (4, 5) from coolant thermostat (9), place to one side and seal. | Fig 3 | |
| Fig 2 | |||
| 7 | Remove screws (8). | *BA20.10-P-1003-01CA | |
| 8 | Detach coolant thermostat (9) from coolant pump and remove. | ||
| 9 | Install in the reverse order. |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA20.10-P-1003-01CA | Bolt, coolant thermostat to coolant pump | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA20.10-P-1005-01CA | Screw, coolant hose clamp to coolant thermostat | M6 | Nm | 8 |
