Remove/Install Belt-Driven Starter-Alternator Coolant Pump - AR20.10-P-1282MRI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 253
with code B01 (48V technology)
MODIFICATION NOTES
| 17.05.2019 | Special tool updated. | Operation step 6. | |
| 17.05.2019 | Basic data object updated. | Operation steps 2, 5 and 8. |

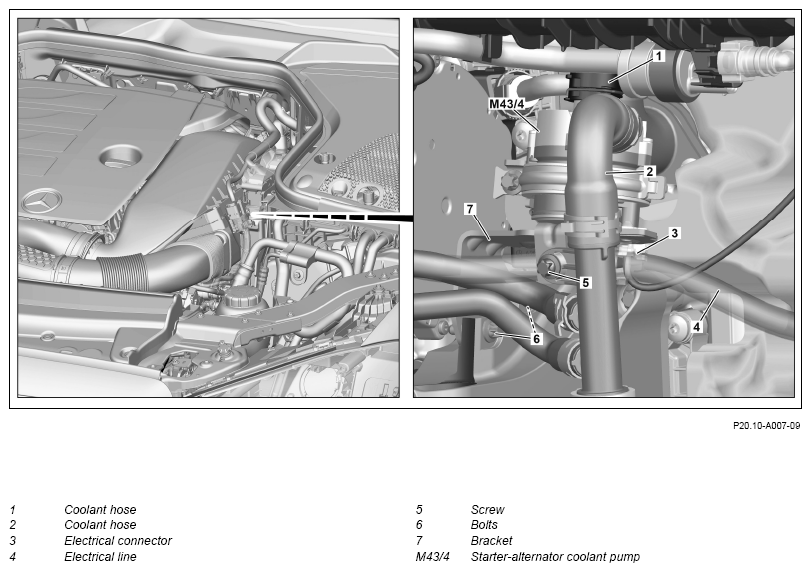

Fig 1: Belt-Driven Starter-Alternator Coolant Pump Components Location - Engine 264 In Model 253 With Code B01 (Shown On Model 205)
Shown on model 205 with code B01 (48V technology)
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open Cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Drain off coolant. | AR20.00-P-1142MRI | |
| 2 | Remove screw (5). | *BA20.20-P-1003-02B | |
| 3 | Unclip electric line (4) from bracket (7). | ||
| 4 | Release and disconnect electrical connection (3). | ||
| 5 | Remove screw/bolts (6). | *BA22.10-P-1004-02D | |
| 6 | Remove coolant hoses (1, 2) from starter-alternator coolant pump (M43/4) and electric coolant pump 2 (M43/1) and seal with suitable protective covers. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 7 | Remove starter-alternator coolant pump (M43/4) and electric coolant pump 2 (M43/1) with the bracket (7). | ||
| 8 | Remove starter-alternator coolant pump (M43/4) and electric coolant pump 2 (M43/1) from bracket (7). | When installing a new starter-alternator coolant pump (M43/4) or electric coolant pump 2 (M43/1). | |
| *BA20.20-P-1004-02B | |||
| 9 | Install in the reverse order. |
ENGINE RADIATOR, COOLANT HOSES AND LINES
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA20.20-P-1003-02B | Screw, coolant line to coolant pump holder | M6 | Nm | 8 |
ENGINE RADIATOR, COOLANT HOSES AND LINES
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA20.20-P-1004-02B | Screw, coolant pump holder to engine carrier | M6 | Nm | 8 |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BA22.10-P-1004-02D | Bolt, bracket to engine support | M6 | Nm | 8 |
