Remove/Install Lens Hood On Windshield - AR67.10-P-2000EQ
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253, 293
MODIFICATION NOTES
| 19.01.2022 | Work procedure changed. | Operation step 6, 7. |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Remove multifunction camera. | Model 293 | AR54.21-P-3000EQ |
| Model 253 | AR54.21-P-3000LF | ||

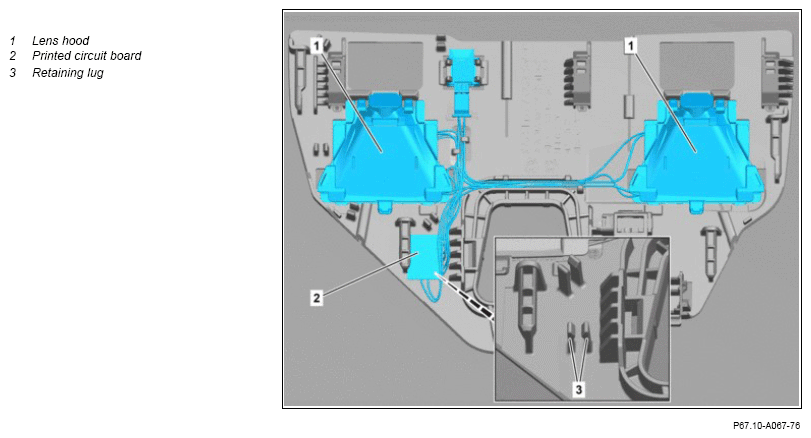

| 2 | Release and disconnect electrical connector of lens hood (1). | ||
| 3 | Remove printed circuit board (2). | If installed. | |
| 4 | Remove lens hood (1). | Fig 2 | |
| Clean | |||
| 5 | Clean windshield in area of lens hood (1). | *BR00.45-Z-1025-04A | |
| Install | |||
| 6 | Cut back retaining lugs (3) flush with the carrier plate using a suitable tool. | If retaining lugs (3) are present. | |
| 7.1 | Install lens hood (1). | If printed circuit board (2) is not present at electrical connector of lens hood (1). |
|
| 7.2 | Install lens hood (1). | If printed circuit board (2) is present at electrical connector of lens hood (1). | |
| 8 | Fasten printed circuit board (2) to carrier plate. | ||
| 9 | Connect electrical connector for lens hood (1). | ||
| 10 | Install multifunction camera. | Model 293 | AR54.21-P-3000EQ |
| Model 253 | AR54.21-P-3000LF |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
