Apply Glue To Rear Side Window - AR67.30-P-4000-07LWS
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.2/3
Model 213.1/2
Model 223.9
Model 253, 293
| Notice | Notes on handling adhesive | AH67.00-P-1000-01A |
The bonding area must be free of dust and grease.
Otherwise the adhesive force of the adhesive material starts to decrease.
Use only repair kit specified in EPC.

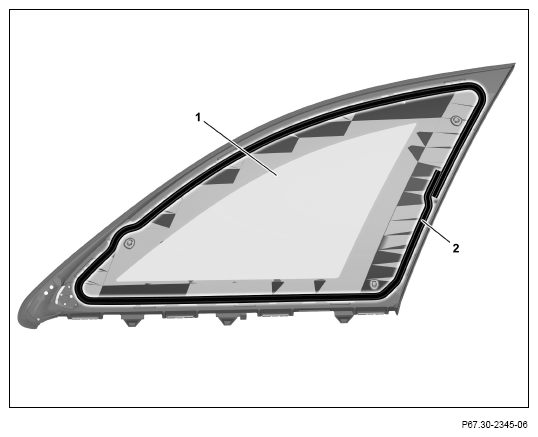

- Uniformly apply bead of adhesive material (2) to triangular window (1) at a height (b) of approx. 13 mm.
Triangular window (1) must be inserted within 10 min after applying the adhesive material (2)
Otherwise the adhesive force of the adhesive material (2) will be impaired.
Completely press out adhesive material (2) not required after applying and dispose of.
Shown on MODEL 205.2
