Align Windshield In Body Opening - AR67.10-P-1000-04G
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 117, 156, 169, 170, 171, 172.4, 176, 205, 207, 209, 218, 230.4, 231, 242, 245.2, 246, 253, 293
Model 212
except code Z04 (Light armoring)
Model 212, 218
Model 207, 209, 231
Model 117, 156, 169, 170, 171, 172, 176, 205, 230, 242, 245, 246, 253, 293
- Place windshield (1) down on windshield rubber spacers on body flange.
- Center windshield (1) in body opening.

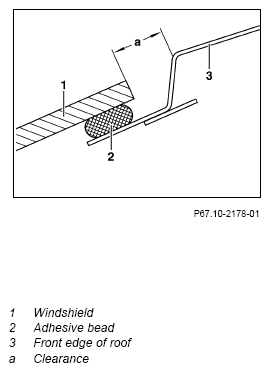

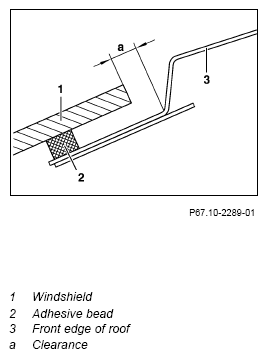

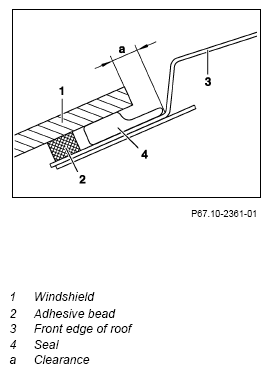

- Adjust gap dimension (A) with
feeler gauge.

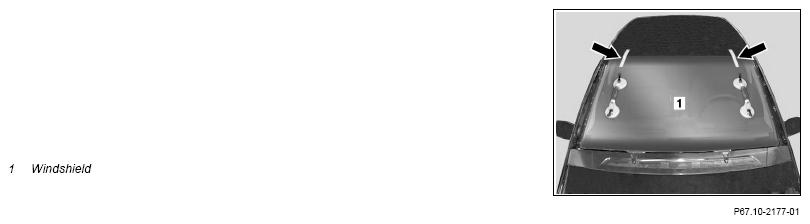

- Glue on strips of adhesive tape (arrows).
- Cut through adhesive strips (arrows) at top of windshield (1)
- Remove windshield (1) from vehicle.
Shown on model 169.0
