Rear Window Heater, Basic Function - GF67.29-P-2006A
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model all (CAR)

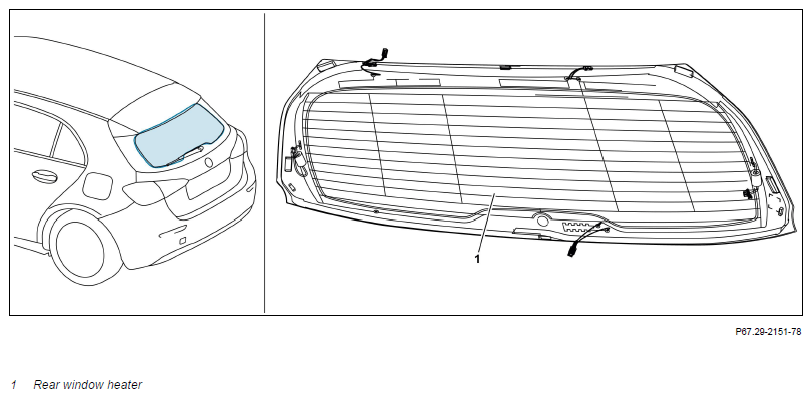

Location
The rear window heater is installed on the inside of the rear window.
Task
The rear window heater consists of multiple conductor tracks on the rear window. When a voltage is applied, these conductor tracks heat up due to the electrical resistance. This heat is used to defrost, for example, ice or snow on the rear window or counteract a fogging up of the rear window.
Depending on the vehicle, the rear window heater is actuated by the signal acquisition and actuation module or by the rear signal acquisition and actuation module.
| Component description | |||
| Rear window heater, component description | Model 223 | GF67.29-P-5001A | |
| Model 243 | GF67.29-P-5001B | ||
| Model 206 | GF67.29-P-5001C | ||
| Model 297 | GF67.29-P-5001D | ||
| Model 295 | GF67.29-P-5001E |
