Model 117, 118, 156, 166, 167, 176, 177, 205, 213, 217, 222, 223, 236, 238, 242, 246, 247, 253, 257, 290, 293, 295, 297
Refer to the superordinate service document for further information.
Observe safety information in the superordinate service document.
Shown on model 223
 Courtesy of MERCEDES-BENZ USA
|
 Courtesy of MERCEDES-BENZ USA
|
Shown on model 177
- Place damping (1) on a clean base.
- Apply adhesive beads (2) as shown.
Model 177, 236 Apply adhesive beads (2) to edges of the structure (3) with precision.

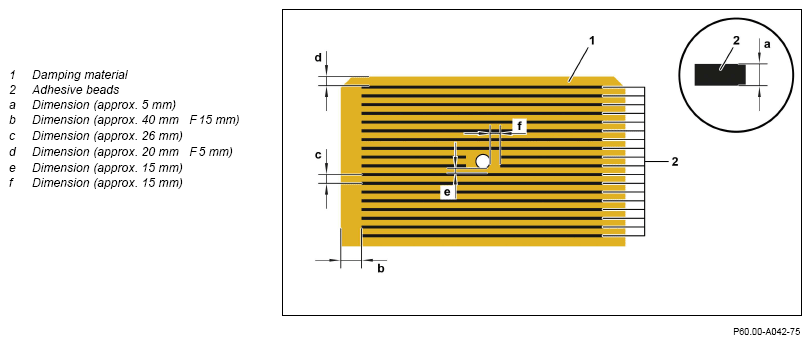

Model 117, 118, 156, 166, 167, 176, 205, 213, 217, 222, 223, 238, 242, 246, 247, 253, 257, 290, 293, 297 Make sure to observe specified dimensions (a, b, c, d, e, f) for installation of damping (1) without edges of the structure (3).
Otherwise, excess adhesive and the short curing time can lead to paint damage when removing excess adhesive.

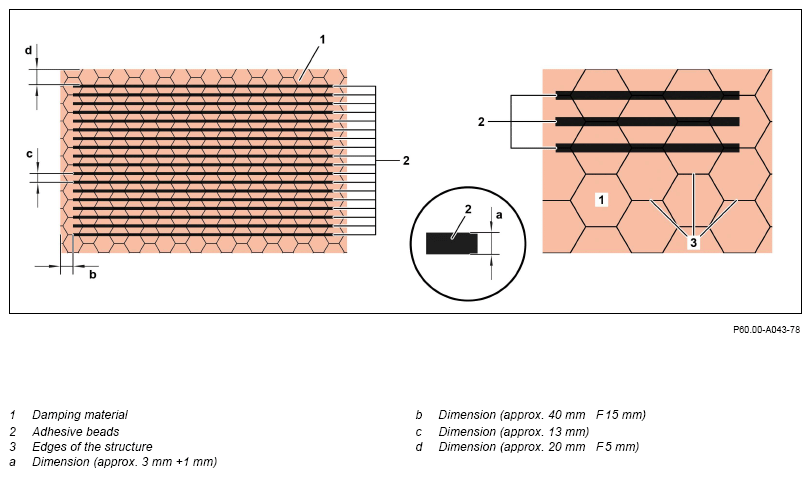

Model 177, 236 Make sure to observe specified dimensions (a, b, c, d) for installation of damping (1) with edges of the structure (3).
Otherwise, excess adhesive and the short curing time can lead to paint damage when removing excess adhesive.
Observe manufacturer's specifications for the use and processing time of adhesive.
Apply adhesive beads (2) without interruption.
