Attach Vehicle Identification Number - Ar60.00-P-0800RQA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 166, 167, 190, 197, 205, 206, 213, 222, 231, 238, 253, 290, 292, 293, 297
Example
| Product liability, trademark and traffic laws | AH60.00-P-0800-01Z . | ||
| Attachment | |||
| 1 | Take position of vehicle identification number (2) from the operator's manual. | ||
| 2 | Measure distance of guide holes (3) from marking unit (1) and transfer. | If punch marks for the guide holes (3) are not present. |

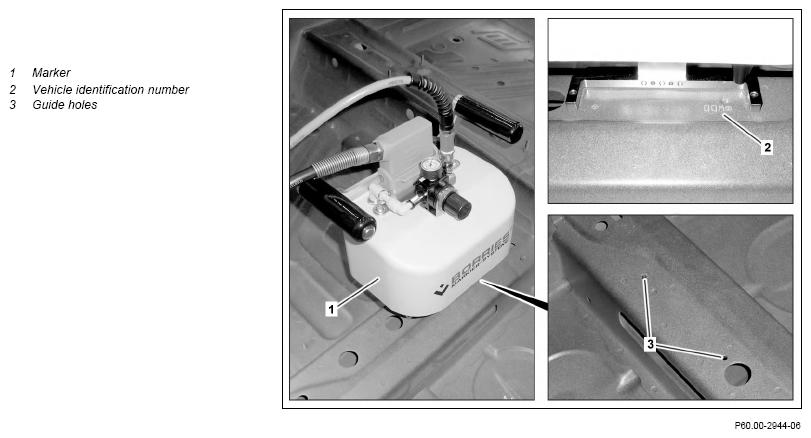

Fig 1. |
| 3 | Drill guide bores (3) for marking unit (1) with Ø 5 mm. | ||
| 4 | Prepare marking unit (1) and enter vehicle identification number (2) on marking unit (1). | Fig 1. | |
| 5 | Insert marking unit (1) into the previously drilled guide holes (3). | ||
| 6 | Emboss vehicle identification number (2 with marking unit (1). | ||
| 7 | Cross out vehicle identification number (2) and emboss in reserve field. | Only if vehicle identification number (2) was punched in incorrectly previously. |
Fig 1. |
| 8 | Coat guide holes (3) with zinc dust paint. | 1K-zinc dust paint | *BR00.45-Z-1056-07A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
