Check Outside Of Vehicle In Visible Area For Signs Of Damage - AP60.00-P-0050F

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253

G14470491Courtesy of MERCEDES-BENZ USA
IMPORTANT Damage and stress caused to paintwork by external influences   AH98.00-P-8070-02A .
INSPECT Check
1 Check vehicle body and detachable parts for damage and completeness IMPORTANT Dent/deformation,
Component missing,
Crack/scratch,
Other damage.
If there are problems:
↓
Rectify the damage, subject to separate repair order, if necessary.

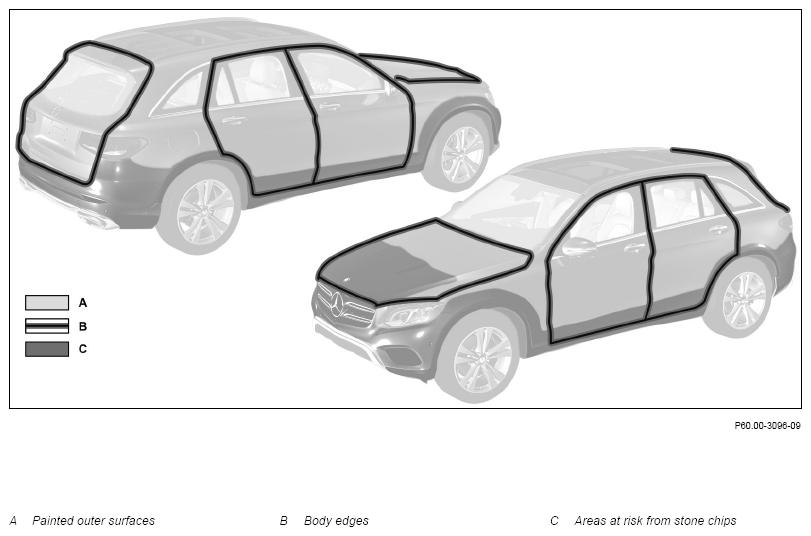

2 Check vehicle paintwork for damage and check vehicle body for corrosion IMPORTANT The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings.
IMPORTANT Stone chipping,
Scratch,
Environmental influences,
Paint peeling off.
If there are problems:
↓
Proceed in accordance with the country-specific regulations for mobility and body shell complaints subject to separate repair order.
REFER TO FORMS     OF98.00-P-3000-01JA .
3 Check exterior lights glazing for damage IMPORTANT Water entry,
Reflector dull,
Component missing,
corrosion,
Crack/scratch,
Other damage.
If there are problems:
↓
If necessary, rectify the problem, subject to separate repair order.
