Transmission Cooling, Basic Function - GF27.55-P-1000B

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model all with transmission 725

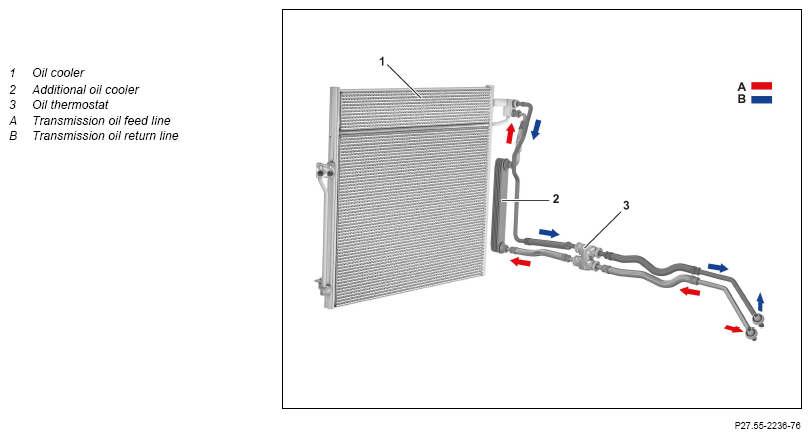

Transmission oil cooling circuit

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

General
Function requirements
Function

General

Transmission oil cooling is tasked with the function of maintaining a constant transmission oil temperature. This prevents overheating damage to the automatic transmission.

Function requirements

Primary pump
- Engine in operation
Electric auxiliary oil pump
- Ignition ON (circuit 15)

Function

The transmission oil is drawn out of the oil pan by a mechanical primary pump in the automatic transmission and then pumped to the oil thermostat via the feed. At a transmission oil temperature < 90°C, the oil thermostat routes the transmission oil back to the automatic transmission via the return line. At a transmission oil temperature of > 90°C, the oil thermostat opens and transmission oil flows through the additional oil cooler and the oil cooler before it flows back to the automatic transmission through the return line. In order to ensure needs-based cooling, the electric auxiliary oil pump is actuated in addition to the primary pump, depending on the situation.
