Overview Of System Components Of Automatic Transmission (AT) - GF27.10-P-9992ANI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0 in model 253
Show on model 253.9

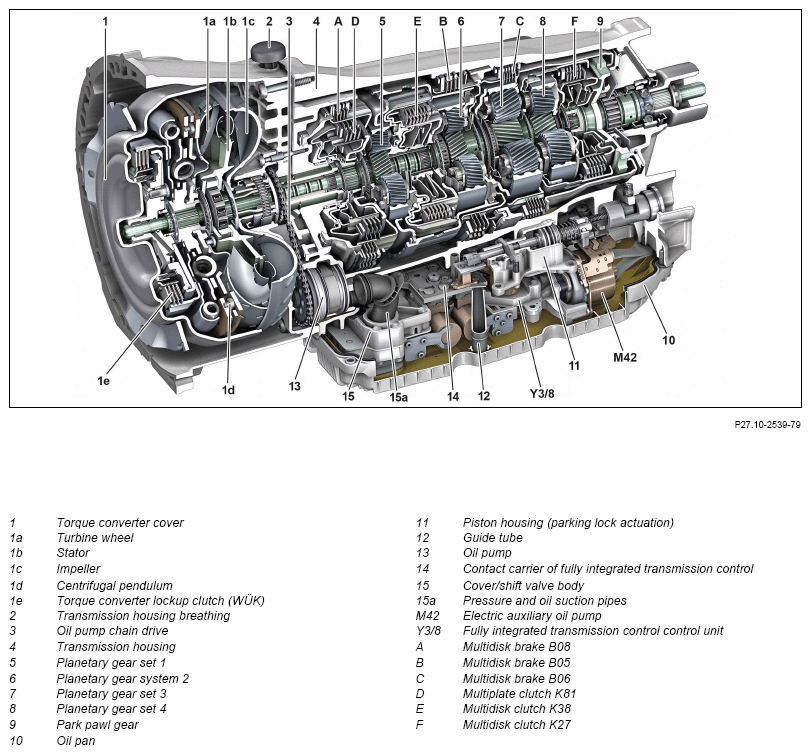

Sectional view of automatic transmission with torque converter and integrated centrifugal pendulum in transmission 725.004/008/041/044/048/054/058

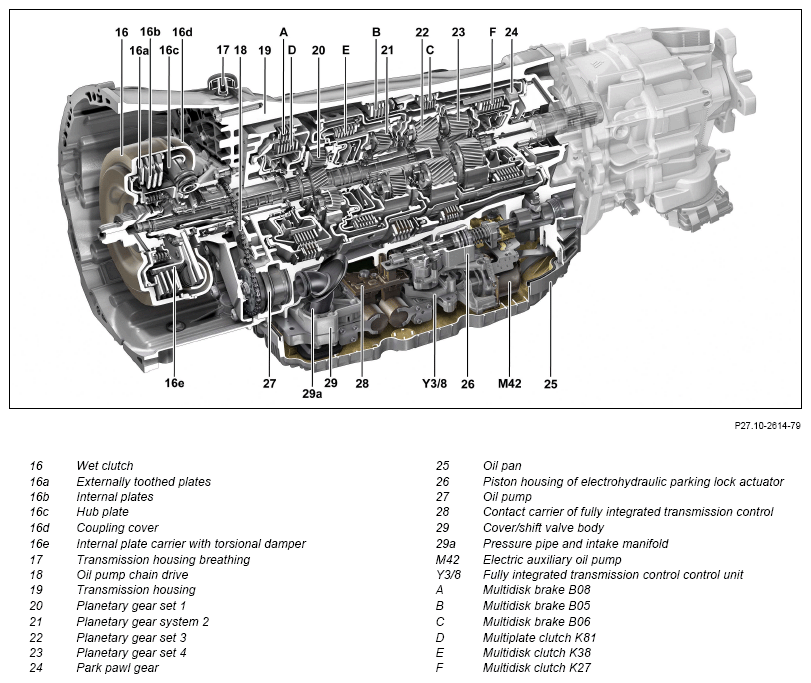

Sectional view of automatic transmission with wet clutch in transmission 725.096

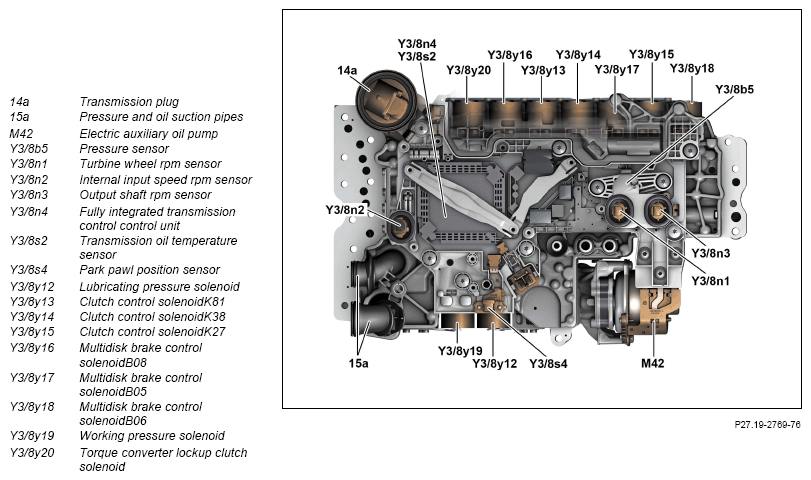

View of fully integrated transmission control controller unit in transmission 725.004/008/041/044/048/054/058

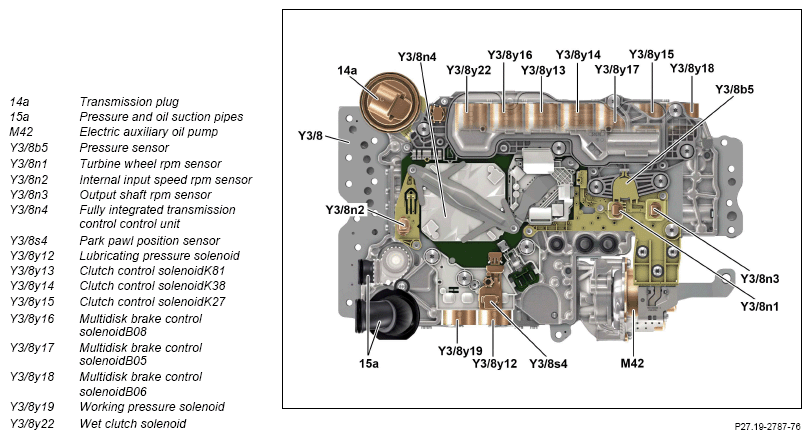

View of fully integrated transmission control controller unit in transmission 725.096
View of shift valve housing from above in transmission
725.004/008/041/044/048/054/058

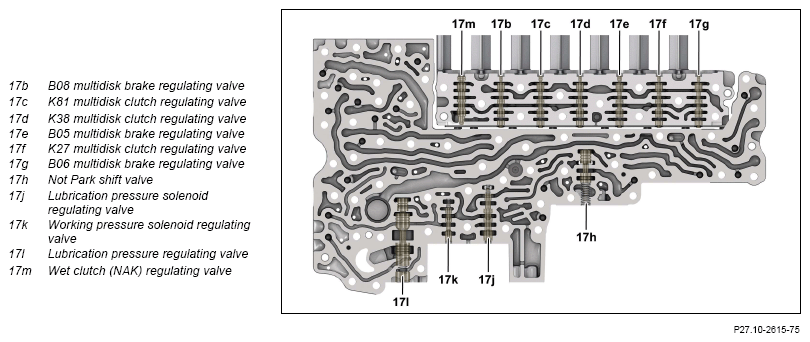

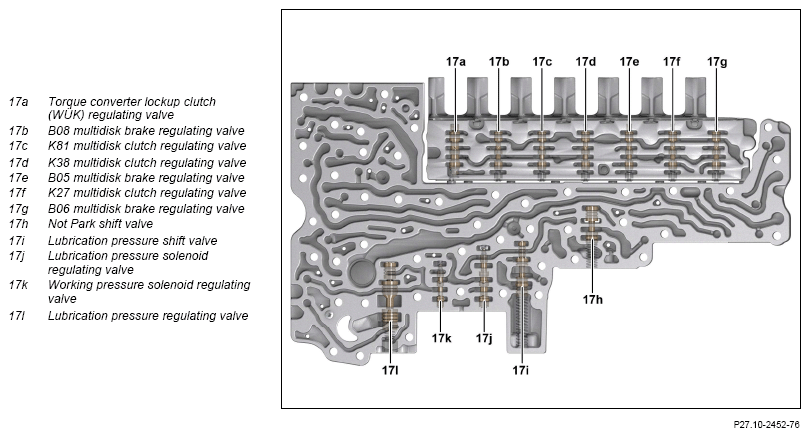

View of shift valve housing from above in transmission 725.096

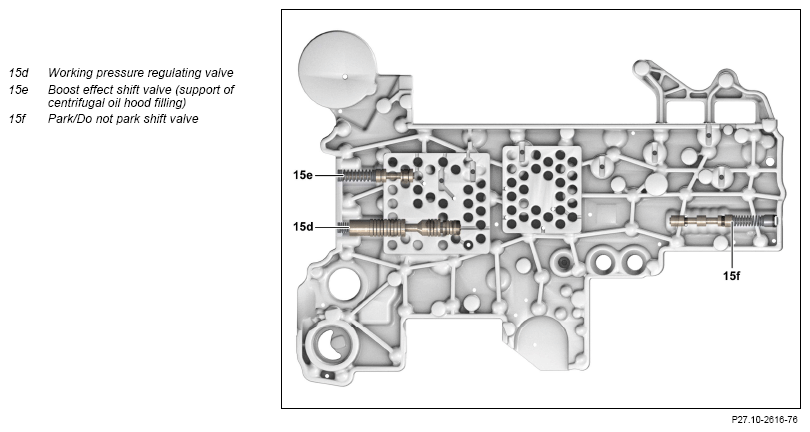

Top view of valve housing

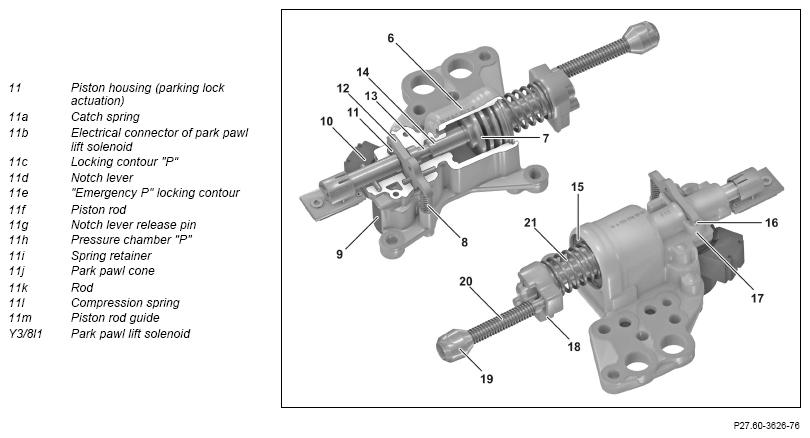

Sectional view of electrohydraulic park pawl actuation

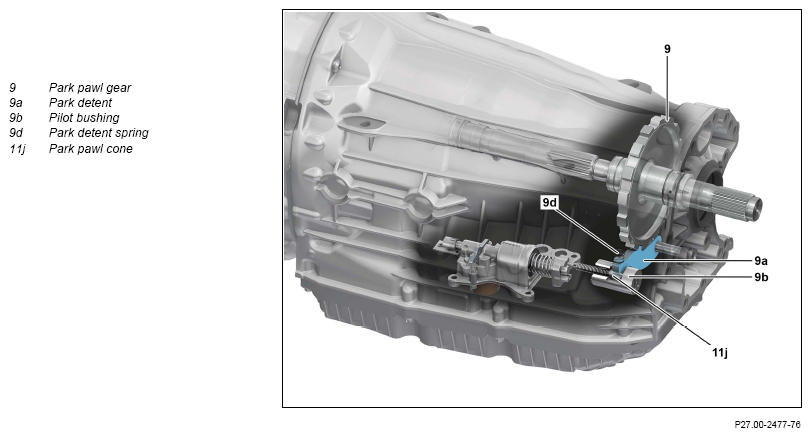

View of automatic transmission from rear left (shown with engaged drive range "P")

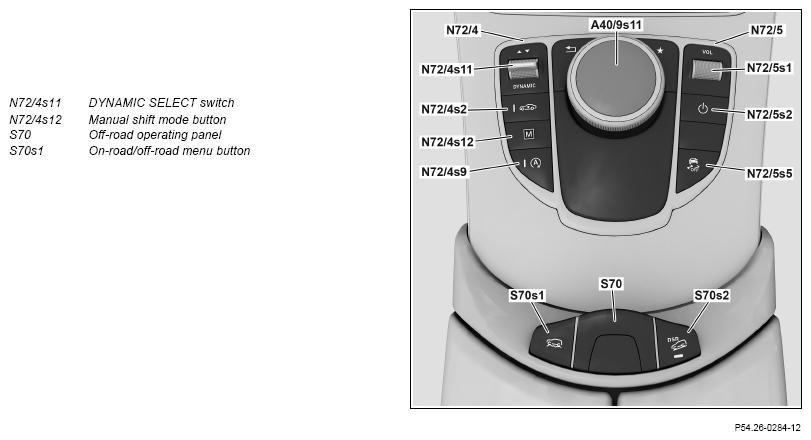

View of center console in vehicle with code 430 (Off-road package), shown except code 448 (Touchpad) and except code 446 (Touchpad only)

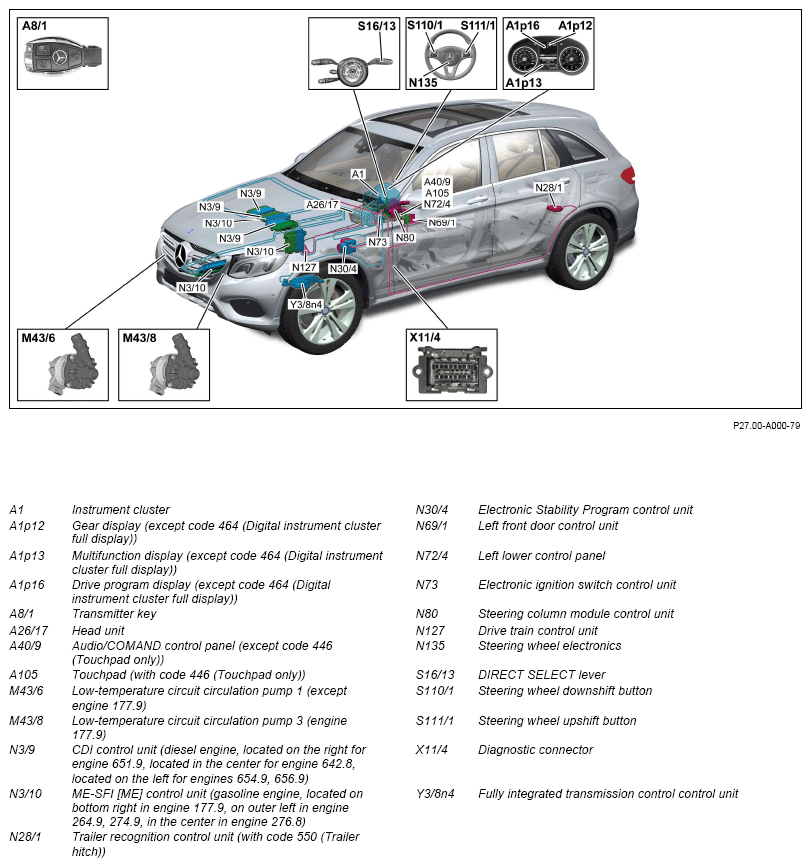

| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Transmission 725.0 in model 253 up to model year 2020 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Transmission 725.0 in model 253 up to model year 2020 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Transmission 725.0 in model 253 up to model year 2020 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Transmission 725.0 in model 253 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Transmission 725.0 in model 253 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Transmission 725.0 in model 253 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND control panel | Transmission 725.0 in model 253 up to model year 2020 A40/9 |
GF54.21-P-4501RF | |
| Touchpad, component description | Transmission 725.0 in model 253 as of model year 2020 with code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| Component description for CDI control unit | Model 253 with engine 651.9 with transmission 725.0 N3/9 |
GF07.16-P-6000OLD | |
| Transmission 725.0 in model 253 with engine 642.8 N3/9 |
GF07.16-P-6000OGY | ||
| Transmission 725.0 in model 253 (except 253.311/911) with engine 654.9 Transmission 725.0 in model 253 with engine 656.9 N3/9 |
GF07.16-P-6000ORF | ||
| Transmission 725.0 in model 253.311/911 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Engine 274.9 in model 253 (except 253.353/953) with transmission 725.0 N3/10 | GF07.61-P-6000MRA | |
| Model 253 with engine 276.8 with transmission 725.0 N3/10 |
GF07.61-P-6000MMV | ||
| Transmission 725.0 in model 253 with engine 177.9 N3/10 |
GF07.61-P-6000MNA | ||
| Transmission 725.0 in model 253 with engine 264.9 N3/10 |
GF07.61-P-6000MRS | ||
| Component description for trailer recognition control unit | Model 253 with transmission 725.0 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 253 (except 253.353/953) with transmission 725.0 N30/4 |
GF42.45-P-5119RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Lower control panel, component description | N72/4 | GF54.25-P-4270RF | |
| Component description for the electronic ignition lock control unit | Transmission 725.0 in model 253 up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Transmission 725.0 in model 253 as of model year 2020 N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Transmission 725.0 in model 253 up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Transmission 725.0 in model 253 as of model year 2020 N80 |
GF54.21-P-6051RFM | ||
| Drivetrain control unit, component description | Transmission 725.0 in model 253 with engine 177.9 N127 |
GF54.21-P-2141MNA | |
| Transmission 725.0 in model 253 (except 253.353/953) with engine 274.9 N127 |
GF54.21-P-2141MRA | ||
| Transmission 725.0 in model 253 with engine 264.9 N127 |
GF54.21-P-2141MRS | ||
| Engine 642.8 in model 253 with transmission 725.0 Engine 651.9 in model 253 with transmission 725.0 N127 |
GF54.21-P-21410LD | ||
| Transmission 725.0 in model 253 with engine 654.9 Transmission 725.0 in model 253 with engine 656.9 N127 |
GF54.21-P-21410RH | ||
| Model 253 with engine 276.8 with transmission 725.0 N127 |
GF54.21-P-2141RF | ||
| Steering wheel electronics control unit, component description | Transmission 725.0 in model 253 as of model year 2020 N135 |
GF82.90-P-4006RFM | |
| Component description for fully integrated transmission control unit | Y3/8n4 | GF27.60-P-5165ANI | |
| Table of contents for function description of automatic transmission (AT) | GF27.10-P-0999ANI |
