Remove/Install Tire Pressure Monitoring System Control Unit - AR40.15-P-0100LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205, 253 (except 253.992/993) with code 475 (Tire pressure monitoring system)

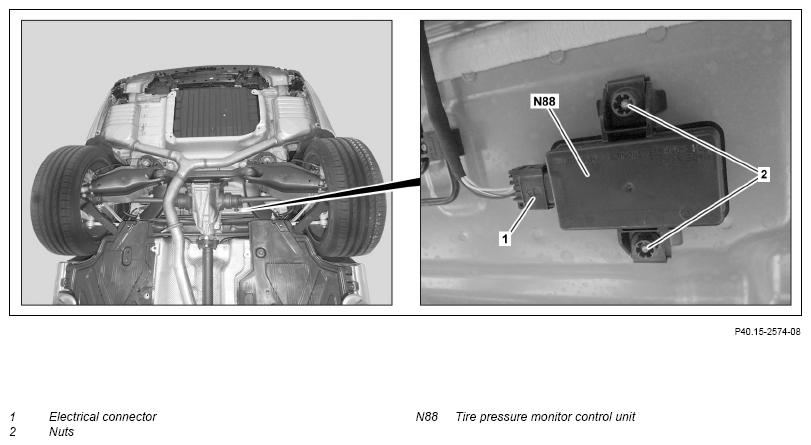

Shown on Model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Commission tire pressure monitoring system control unit (N88). | When removing tire pressure monitoring system control unit (N88). | AD00.00-P-2000-04B |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Raise vehicle | AR00.60-P-1006A | |
| 4 | Disconnect electrical connection (1) | ||
| 5 | Unscrew nuts (2) and remove tire pressure monitor control unit (N88) | ||
| 6 | Install in the reverse order | ||
| 7 | Restart tire pressure monitor | Model 205 as of model year 2019 with code 475 (Tire pressure monitoring system) Model 253 (except 253.992/993) as of model year 2020 with code 475 (Tire pressure monitoring system) |
AR54.30-P-1001-01EQ |
| Model 205 up to model year 2019 with code 475 (Tire pressure monitoring system) Model 253 (except 253.992/993) up to model year 2020 with code 475 (Tire pressure monitoring system) |
AR54.30-P-1001-01LWG |
