Rim Designation - GF40.10-P-1010-01A

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL all

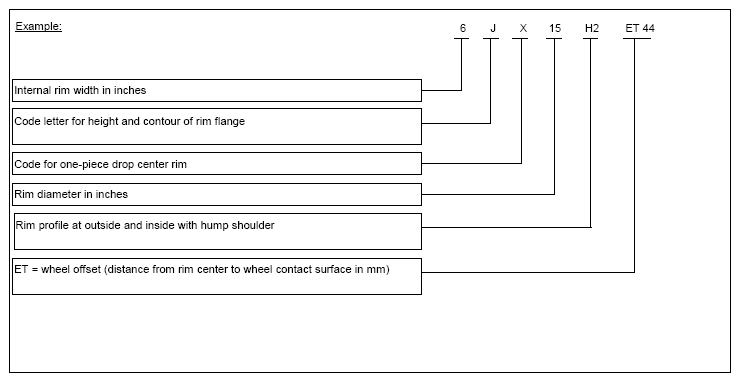

G13955448Courtesy of MERCEDES-BENZ USA

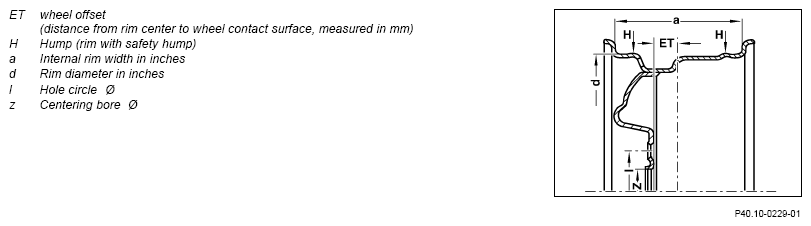

G14136365Courtesy of MERCEDES-BENZ USA

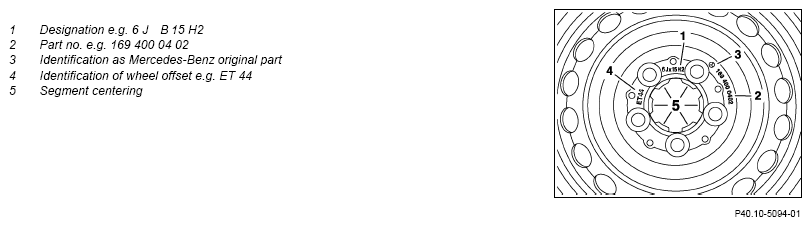

Sheet-steel disk wheel

G14136366Courtesy of MERCEDES-BENZ USA

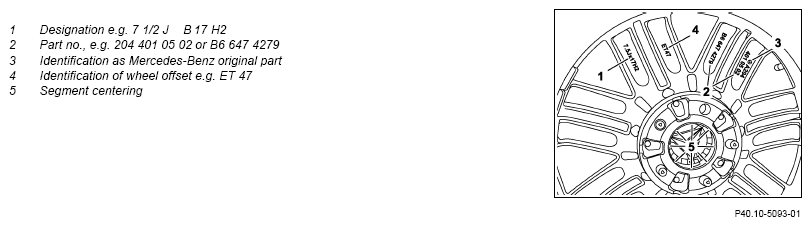

Light alloy rim

G14136367Courtesy of MERCEDES-BENZ USA
