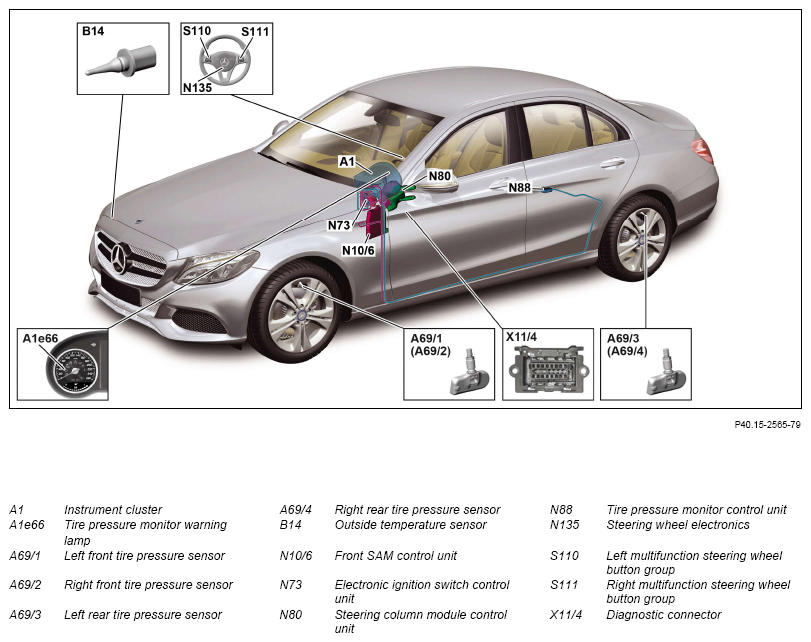

Overview Of System Components For Tire Pressure Monitor (RDK) - GF40.15-P-9999RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205, 253 with code 475 (Tire pressure monitoring system)
Shown on MODEL 205.0
| Component description for instrument cluster | A1, A1e66 | GF54.30-P-6000RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 475 (Tire pressure monitoring system) Model 253 (except 253.99) up to model year 2020 with code 475 (Tire pressure monitoring system) N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 with code 475 (Tire pressure monitoring system) Model 253 (except 253.99) as of model year 2020 with code 475 (Tire pressure monitoring system) Model 253.99 with code 475 (Tire pressure monitoring system) N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 with code 475 (Tire pressure monitoring system) Model 253 (except 253.99) up to model year 2020 with code 475 (Tire pressure monitoring system) N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 with code 475 (Tire pressure monitoring system) Model 253 (except 253.99) as of model year 2020 with code 475 (Tire pressure monitoring system) Model 253.99 with code 475 (Tire pressure monitoring system) N80 |
GF54.21-P-6051RFM | ||
| Component description for tire pressure monitor control unit | N88 | GF40.15-P-5124RF | |
| Contents, function description, tire pressure monitor | MODEL 205, 253 with code 475 (Tire pressure monitoring system) | GF40.15-P-0999RF |
