Overview Of Components In Tire Pressure Loss Warning (RDW) System - GF40.15-P-9997RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205, 253 with code 477 (Tire pressure loss warner)

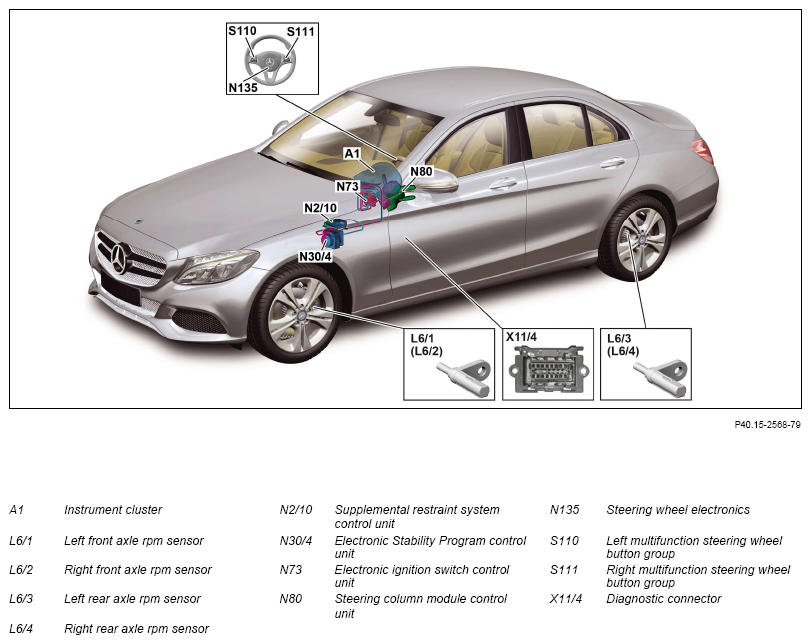

Shown on MODEL 205.0
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/25 3), 253 (except 253.353/354/953/954/99) with code 477 (Tire pressure loss warner) | GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253, 253.353/354/953/954/99 with code 477 (Tire pressure loss warner) N30/4 | GF42.45-P-5119RFH | ||
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 477 (Tire pressure loss warner) Model 253 (except 253.99) up to model year 2020 with code 477 (Tire pressure loss warner) N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 with code 477 (Tire pressure loss warner) Model 253 (except 253.99) as of model year 2020 with code 477 (Tire pressure loss warner) Model 253.99 with code 477 (Tire pressure loss warner) N73 |
GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 with code 477 (Tire pressure loss warner) Model 253 (except 253.99) up to model year 2020 with code 477 (Tire pressure loss warner) N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 with code 477 (Tire pressure loss warner) Model 253 (except 253.99) as of model year 2020 with code 477 (Tire pressure loss warner) Model 253.99 with code 477 (Tire pressure loss warner) N80 |
GF54.21-P-6051RFM | ||
| Contents, function description of tire pressure loss warning (RDW) | GF40.15-P-0998RF |
