Overview Of System Components For Stationary Heater (STH) - GF83.70-P-9996RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253 with code 228 (Auxiliary heater)
Shown on model 205.0

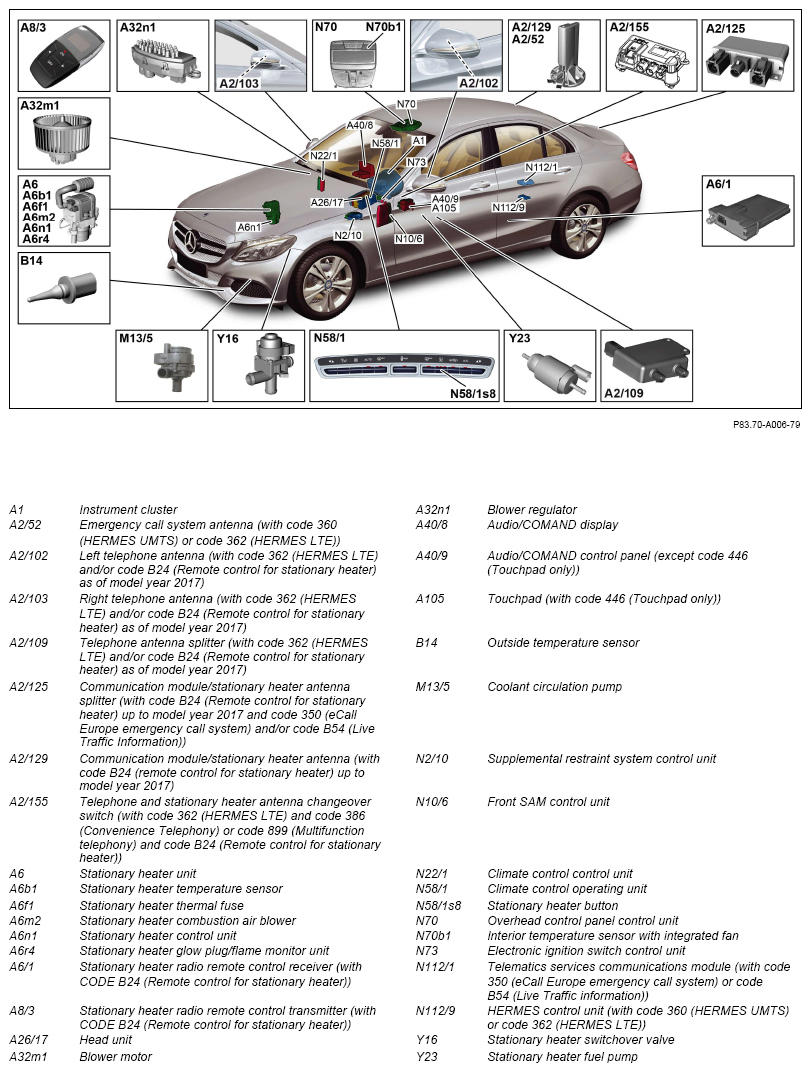

| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Stationary heater control unit, component description | A6n1 | GF83.70-P-4066RF | |
| Head unit, component description | Model 205 up to model year 2019 with code 228 (Auxiliary heater) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 (except 253.99) up to model year 2020 with code 228 (Auxiliary heater) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17 | GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 228 (Auxiliary heater) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND® APS) Model 253 (except 253.99) up to model year 2020 with code 228 (Auxiliary heater) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND® APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 as of model year 2019 with code 228 (Auxiliary heater) with code 506 (Audio 20 NTG 5.5 radio) Model 205 with code 228 (Auxiliary heater) with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 up to model year 2020 with code 228 (Auxiliary heater) with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Model 253 with code 228 (Auxiliary heater) with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 with code 228 (Auxiliary heater) with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 with code 228 (Auxiliary heater) with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND® display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND® control panel | Model 205 as of model year 2019 with code 228 (Auxiliary heater) except code 446 (Touchpad only) Model 205 up to model year 2019 with code 228 (Auxiliary heater) Model 253 (except 253.99) up to model year 2020 with code 228 (Auxiliary heater) A40/9 |
GF54.21-P-4501RF | |
| Touchpad, component description | Model 205 as of model year 2019 with code 228 (Auxiliary heater) with code 446 (Touchpad only) Model 253 (except 253.99) as of model year 2020 with code 228 (Auxiliary heater) with code 446 (Touchpad only) A105 | GF54.21-P-4511RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 228 (Auxiliary heater) Model 253 (except 253.99) up to model year 2020 with code 228 (Auxiliary heater) N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 with code 228 (Auxiliary heater) Model 253 (except 253.99) as of model year 2020 with code 228 (Auxiliary heater) N73 |
GF80.57-P-6001RFM | ||
| Telematics services communications module, component description | Model 205, 253 up to model year 2017 with code 228 (Auxiliary heater) with code 350 (Ecall emergency call system, Europe) Model 205, 253 up to model year 2017 with code 228 (Auxiliary heater) with code B54 (Live Traffic Information) N112/1 |
GF82.85-P-0220RF | |
| HERMES control unit, component description | Model 205, 253 with code 228 (Auxiliary heater) with code 362 (HERMES LTE) Model 205 up to model year 2019 with code 228 (Auxiliary heater) with code 360 (HERMES UMTS) Model 253 (except 253.99) with code 228 (Auxiliary heater) with code 360 (HERMES UMTS) N112/9 |
GF82.85-P-0221RF | |
| Table of contents: Function description of stationary heater (STH) | GF83.70-P-0996RF |
