Overview Of System Components For Climate Control - GF83.40-P-9994RF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

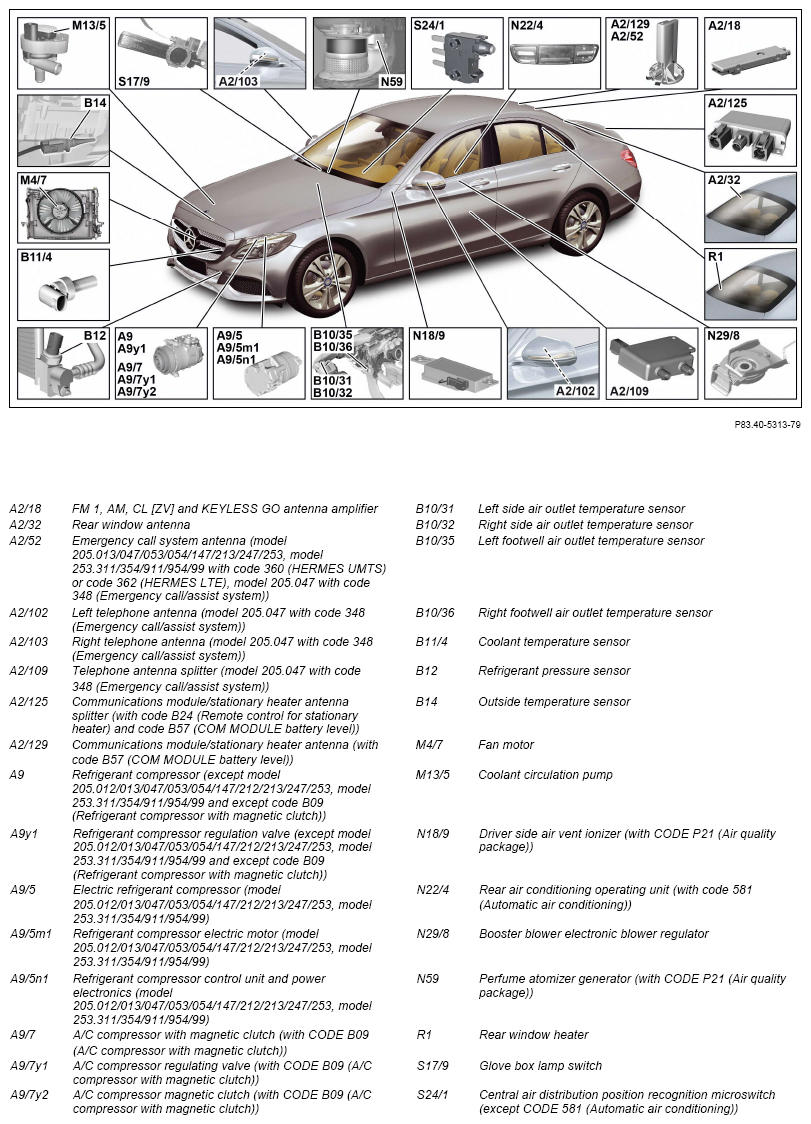

Model 205, 253

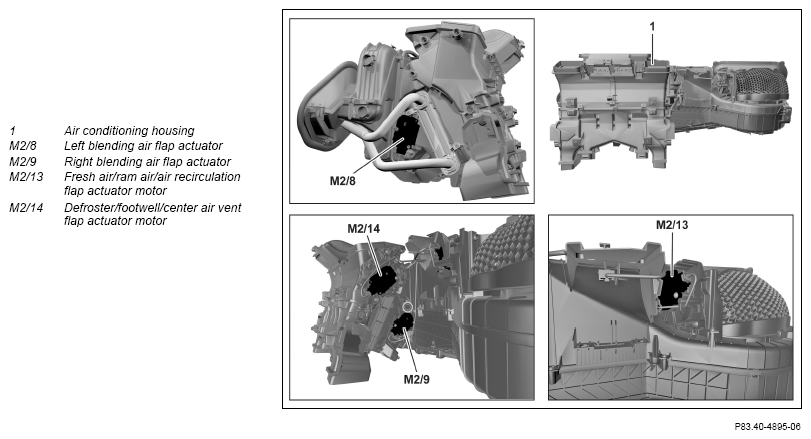

Shown on model 205.0

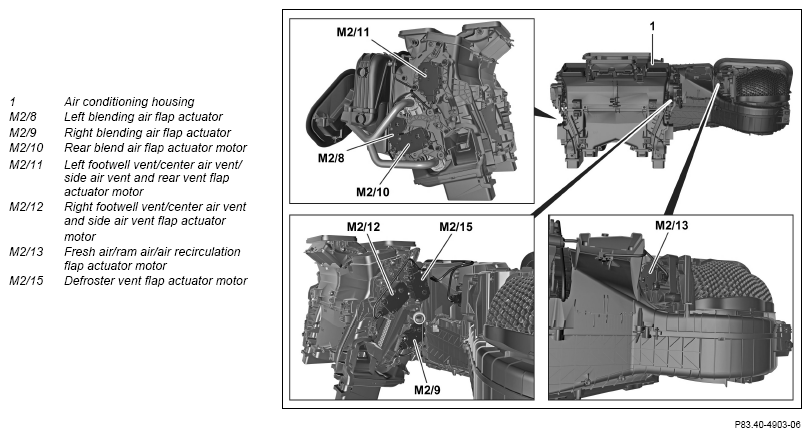

Model 205.4
The rear control unit (N22/6) is also installed in the rear area of the vehicle.
Shown on model 205.0

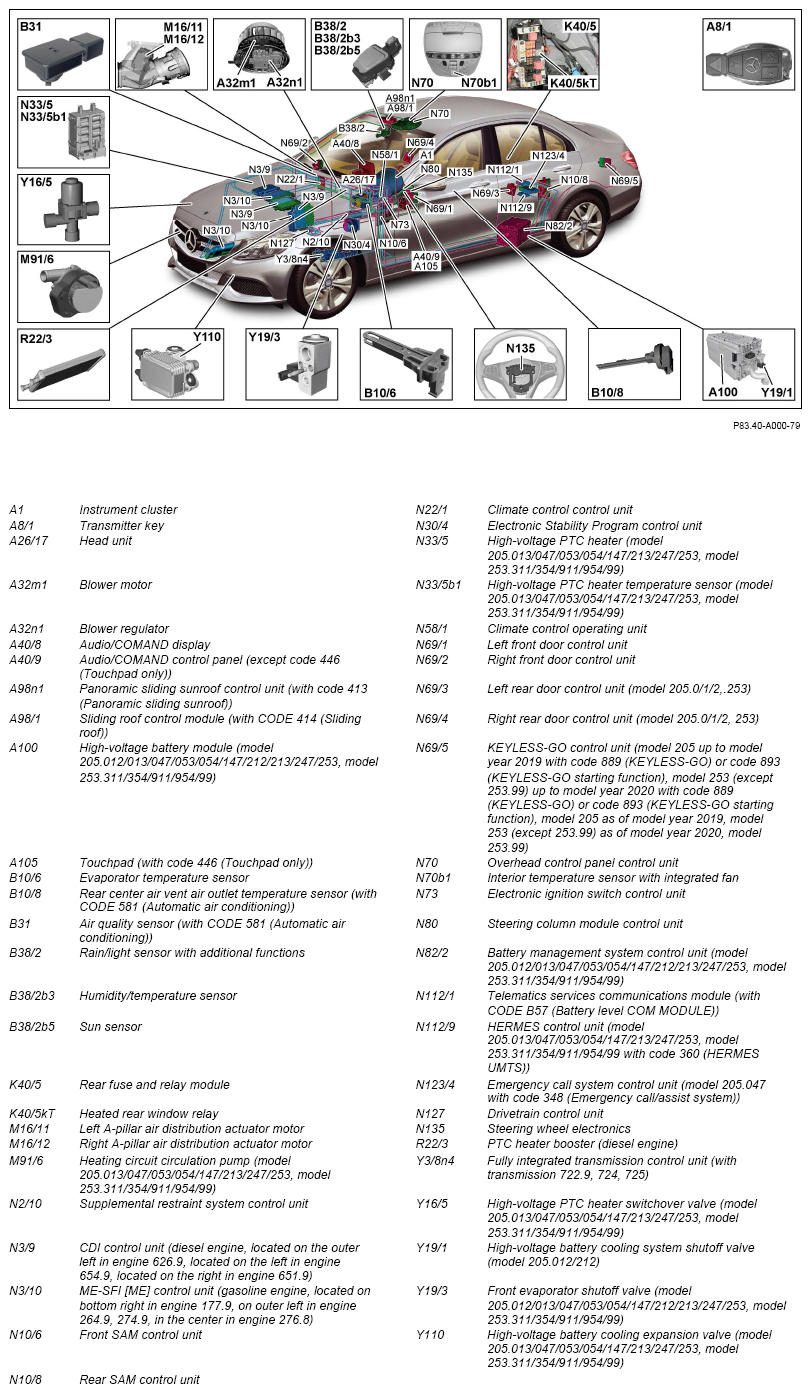

Shown on model 205 with CODE 581 (Automatic air conditioning) and CODE 228 (Stationary heater)
Model 205, 253

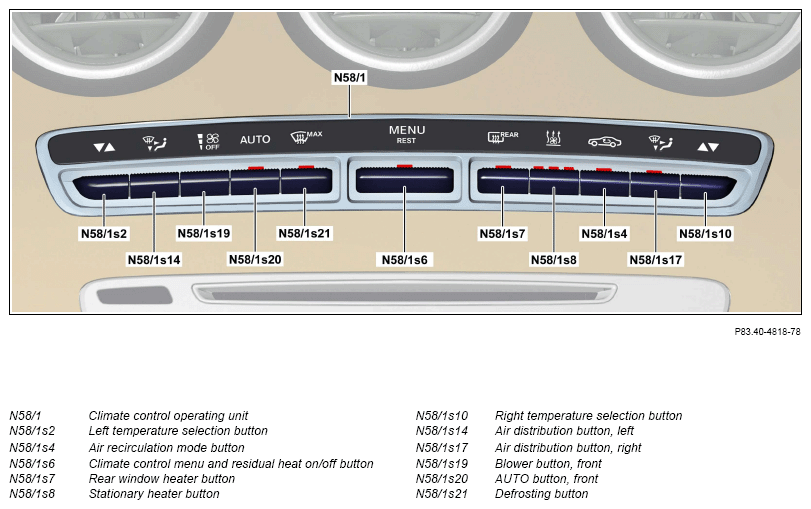

with code 228 (Additional warm water heating)
The stationary heater button is not described in the climate control function description.
The following buttons are not shown on this operating unit:
- Climate control menu button (N58/1s12) (model 205 with code 579 (Single-zone air conditioning system) or model 205, 253 with code 580 (Air conditioning system) and except code 228 (Stationary heater))
- "SYNC" button (N58/1s15) (with code 580 (Air conditioning))
- "A/C" button (N58/1s16) (model 205 with code 579 (Single-zone air conditioning system) or model 205, 253 with code 580 (Air conditioning system) or code 581 (Automatic air conditioning) and except code 228 (Stationary heater) or model 205.012/013/047/053/054/147/212/213/247/253, model 253.311/354/911/954/99)
- Air distribution button (N58/1 s22) (model 205 with code 579 (Single-zone air conditioning system) or model 205, 253 with code 580 (Air conditioning system))
- Pre-entry climate control button (N58/1s23) (model 205.013/047/053/054/147/213/247/253, model 253.311/354/911/954/99)
- Temperature selection button (N58/1s24) (model 205 with code 579 (Single-zone air conditioning system))
Climate control with 1-zone temperature control (model 205 with code 579 (Single-zone air conditioning system)) and 2-zone temperature control (model 205, 253 with code 580 (Air conditioning system))
Climate control with 3-zone temperature control (model 205, 253 with code 581 (Automatic air conditioning))
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for electric refrigerant compressor | Model 205.012/013/047/053/054/147/212/213/247/25 3, 253.311/354/911/954/99 A9/5 | GF83.55-P-2110RFH | |
| Head unit, component description | Model 205 up to model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 (except 253.99) up to model year 2020 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17 | GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND® APS) Model 253 (except 253.99) up to model year 2020 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND® APS) A26/17 | GF82.85-P-3140RFA | ||
| Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) Model 205 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 up to model year 2020 with code 531 (COMAND® APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Model 253 with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) Model 253 with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND® APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for Audio/COMAND® display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND® control panel | Model 205 as of model year 2019 except code 446 (Touchpad only) Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 A40/9 |
GF54.21-P-4501RF | |
| Component description for panoramic sliding roof control module | Model 205, 253 with code 413 (Panoramic sliding sunroof/glass roof) A98n1 |
GF77.20-P-4106RF | |
| Component description for sliding roof control module | Model 205 with code 414 (Electric sunroof, glass version A98/1 |
GF77.20-P-4108RF | |
| Touchpad, component description | Model 205 as of model year 2019 with code 446 (Touchpad only) Model 253 (except 253.99) as of model year 2020 with code 446 (Touchpad only) Model 253.99 with code 446 (Touchpad only) A105 |
GF54.21-P-4511RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205 with engine 626 N3/9 |
GF07.16-P-6000ORB | |
| Model 253 with engine 642.8 N3/9 |
GF07.16-P-6000OGY | ||
| Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651.9 N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 | GF07.16-P-6000OLE | ||
| except code 494 (US version) N3/9 Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213, 253.311/911 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205, 253 with engine 177.9 N3/10 |
GF07.61-P-6000MNA | |
| Model 205, 253 with engine 264.9 N3/10 | GF07.61-P-6000MRS | ||
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N3/10 | GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N3/10 | GF07.61-P-6000MRH | ||
| Model 205, 253 with engine 276.8 N3/10 | GF07.61-P-6000MMV | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear climate control operating unit, component description | Model 205, 253 with code 581 (Automatic climate control) N22/4 |
GF83.40-P-3050RF | |
| Rear control unit, component description | Model 205.4 N22/6 | GF54.21-P-4134RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/25 3), 253 (except 253.353/354/953/954/99) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/25 3, 253.353/354/953/954/99 N30/4 |
GF42.45-P-5119RFH | ||
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2, 253 N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for KEYLESS-GO control unit | Model 205 up to model year 2019 with code 889 (KEYLESS-GO) Model 205 up to model year 2019 with code 893 (KEYLESS-Start) Model 253 (except 253.99) up to model year 2020 with code 889 (KEYLESS-GO) Model 253 (except 253.99) up to model year 2020 with code 893 (KEYLESS-Start) N69/5 |
GF80.61-P-4204RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N69/5 |
GF80.61-P-4204RFM | ||
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73 | GF80.57-P-6001RFM | ||
| Component description for steering column tube module control unit | Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N80 |
GF54.21-P-6051RF | |
| Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | ||
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.954 with engine 274.920 Model 205.053/253 with engine 274.920 Model 253.354 with engine 274.920 N82/2 |
GF54.10-P-3012RFH | |
| Model 253.9 with engine 780 N82/2 |
GF54.10-P-3012RFW | ||
| Telematics services communications module, component description | Model 205, 253 up to model year 2017 with code B57 (KOM Module battery charging) N112/1 |
GF82.85-P-0220RF | |
| HERMES control unit, component description | Model 205, 253 with code 362 (HERMES communications module LTE) Model 205 up to model year 2019 with code 360 (HERMES UMTS) Model 253 (except 253.99) with code 360 (HERMES UMTS) N112/9 |
GF82.85-P-0221RF | |
| Component description for emergency call system control unit | Model 205.047 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212RFU | |
| Drivetrain control unit, component description | Model 205 with engine 626 N127 |
GF54.21-P-2141ORB | |
| Model 205.012/212 with engine 651.9 N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 N127 |
GF54.21-P-2141OLD | ||
| Model 205, 253 with engine 654.9 Model 253 with engine 656.9 N127 |
GF54.21-P-2141ORH | ||
| Model 205, 253 with engine 177.9 N127 |
GF54.21-P-2141MNA | ||
| Model 205, 253 with engine 264.9 N127 |
GF54.21-P-2141MRS | ||
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N127 | GF54.21-P-2141MRA | ||
| Model 205, 253 with engine 276.8 N127 | GF54.21-P-2141RF | ||
| Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N127 | GF54.21-P-2141MRH | ||
| Component description for fully integrated transmission control unit | Model 205, 253 with transmission 724.2 Y38n4 | GF27.60-P-5165RFH | |
| Model 205 with transmission 722.9 (except 722.930) Y38n4 | GF27.60-P-5165AHE | ||
| Model 205 with transmission 722.930 Y38n4 | GF27.60-P-5165AIA | ||
| Model 253 with transmission 725.0 Y38n4 | GF27.60-P-5165ANI | ||
| Model 205 with transmission 725.0 (except 725.017) Y38n4 | GF27.60-P-5165ANG | ||
| Model 205 with transmission 725.017 Y38n4 |
GF27.60-P-5165AHH | ||
| Table of contents for climate control function description | GF83.40-P-0994RF |
