Remove/Install Radial Shaft Seal At Output Flange To Front Axle - AR28.10-P-4075LWX
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205, 253 With Transmission 725.0 with code M005 (4MATIC)
Fig 1: Radial Shaft Seal At Output Flange To Front Axle Components Location - Model 253 With Transmission 725.0 With Code M005
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove transfer case | Transmission 725.0 (except 725.09) in model 205, 253 with code M005 (4MATIC) | AR28.10-P-0100LWX |
| Transmission 725.09 in model 253 with engine 177 with code M005 (4MATIC) | AR28.10-P-0100MNG | ||
| 2 | Remove radial shaft sealing ring (2) using a suitable tool | Leakage will otherwise occur. |
|
| 3 | Remove support ring (3) | ||
| 4 | Remove boot (4) | ||
| 5 | Check seat of radial shaft sealing ring (2) for damage and galling | If damage and/or galling is present ↓ Replace transfer case. |
|
| Install | |||

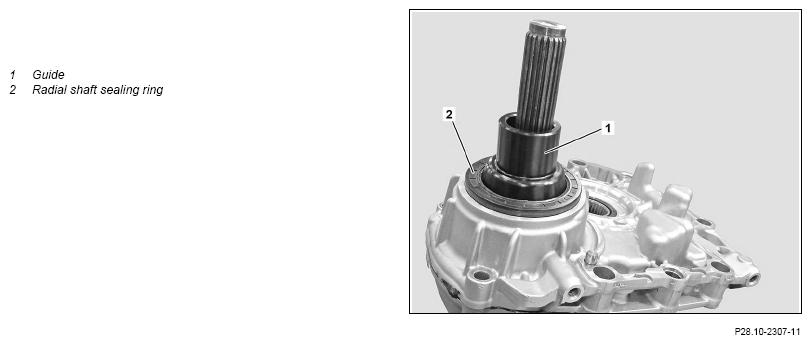

| 6 | Place guide (1) onto output shaft | Fig 2 | |
| 7 | Coat sealing lip of new radial shaft sealing ring (2) with transmission oil | ||
| Automatic transmission fluids (ATF) (specification 236.17) | BB00.40-P-0236-17A | ||
| 8 | Position new radial shaft sealing ring (2) in opening | ||

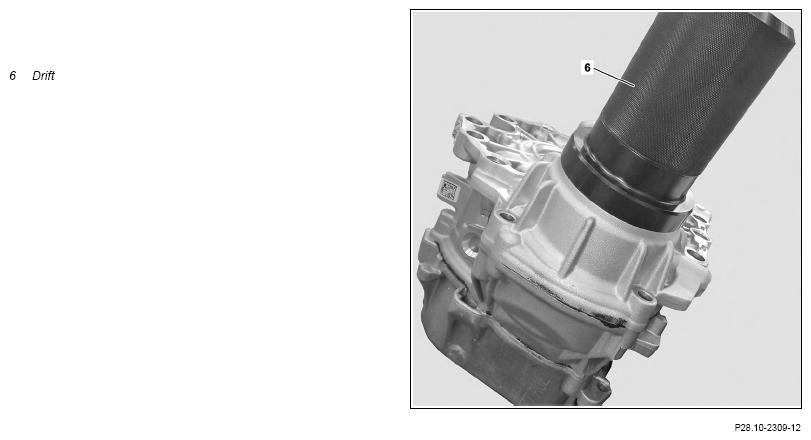

| 9 | Press in new radial shaft sealing ring (2) using drift (6) until drift (6) makes contact with housing | Fig 2 | |
| 10 | Remove guide (1) | ||

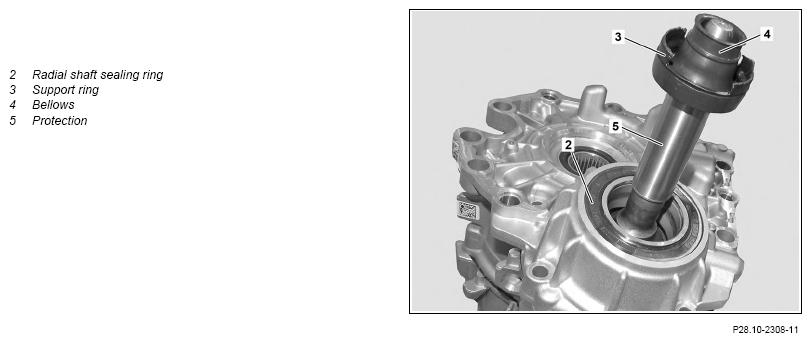

| 11 | Fit guard (5) onto output shaft | Fig 3 | |
| 12 | Coat inside of boot (4) with transmission oil | ||
| Automatic transmission fluids (ATF) (specification 236.17) | BB00.40-P-0236-17A | ||
| 13 | Slide boot (4) with support ring (3) onto guard (5) | ||

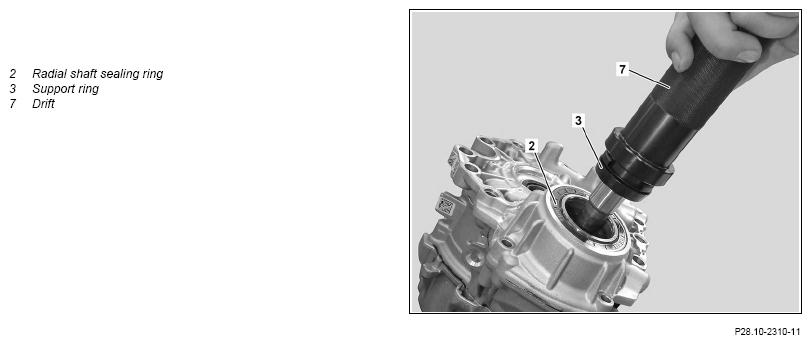

| 14 | Press in support ring (3) using drift (7) until drift (7) makes contact with housing | Fig 3 | |
| 15 | Remove protection (5) from output shaft | Fig 3 | |
| 16 | Install transfer case | AR28.10-P-0100LWX | |
| Transmission 725.09 in model 253 with engine 177 with code M005 (4MATIC) | AR28.10-P-0100MNG |
