Notes On Sealing The Transfer Case - AH28.10-P-0100-01AVG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205, 212, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0
Model 206, 213, 223, 238, 257 with transmission 725.1

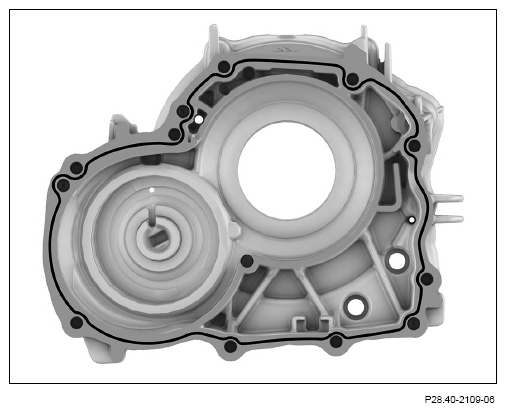

Rear side

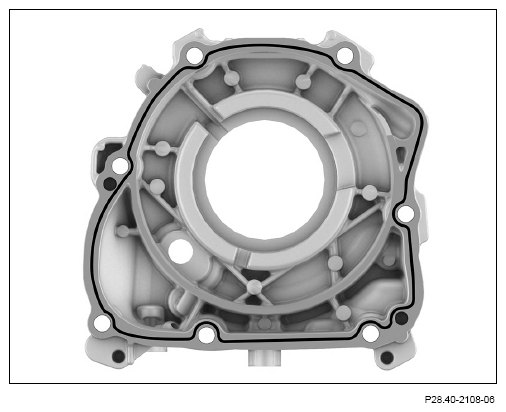

Front side
The sealant seam must not be broken. The sealant must be applied uniformly and continuously without any blistering on the housing. The starting and ending point for sealant application must overlap. The sealant seam must have a width of at least 2 mm.
The sealing surfaces must be free of oil, grease and dirt.
Leaks may occur otherwise.
