(Basic Function Of All-Wheel Drive With Dual-Clutch Transmission - GF28.00-P-1000A)

MODEL ALL with transmission 700.4, 724.0/1

with code M005 (Vehicles with 4MATIC/all-wheel drive)

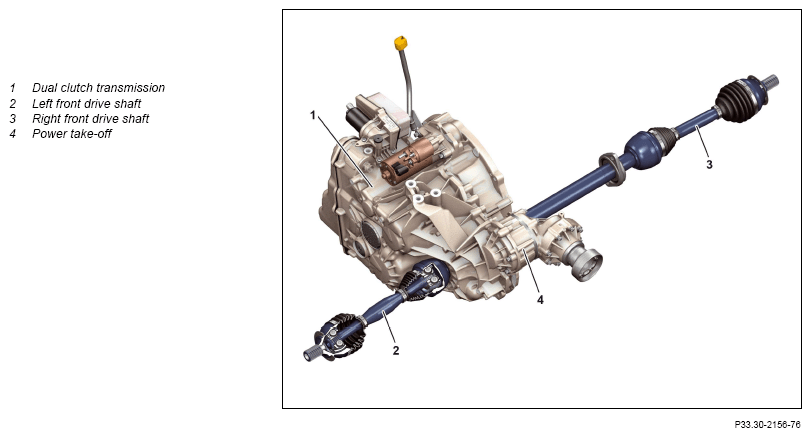

Example illustration of dual clutch transmission with power take-off

Courtesy of MERCEDES-BENZ USA

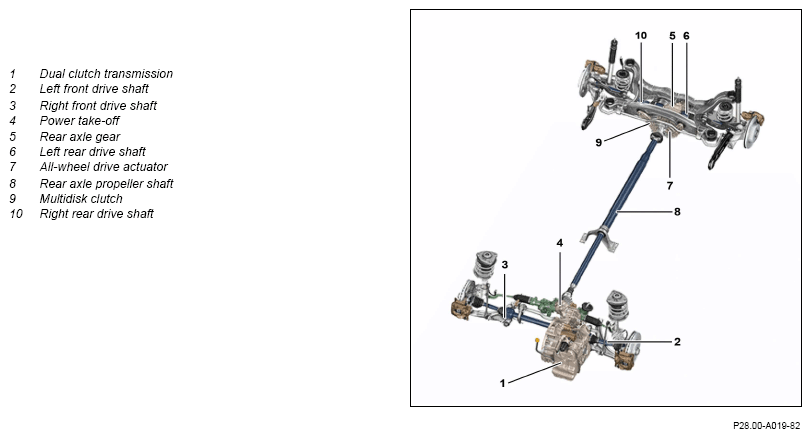

Example illustration of drivetrain

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

• General
• Function requirements
• Function

General

The drive torque delivered by the dual-clutch transmission (1) is delivered variably to the rear axle propeller shaft (8) through the power take-off (4). The drive torque is distributed to the right rear axle drive shaft (10) and the left rear drive shaft (6) from the rear axle propeller shaft (8).

Function requirements

• Drive train operational
• Engine in operation
• Ignition ON (circuit 15)

Function

The all-wheel drive in combination with a dual-clutch transmission (1) is essentially composed of the following components:

• Power take-off (4)
• Rear axle differential (5)
• Left rear drive shaft (6)
• Rear axle propeller shaft (8)
• Right rear drive shaft (10)

The all-wheel drive for dual-clutch transmission is a variably controlled all-wheel drive. The mounting of the power take-off (4) directly onto the dual-clutch transmission (1) enables a common oil supply to be used. The drive torque is distributed to the front axle by the differential, which is integrated into the dual-clutch transmission (1). The power take-off (4), which is mounted to the dual-clutch transmission, distributes the drive torque to the left rear drive shaft (6) and the right rear drive shaft (10) through the rear axle propeller shaft (8) and the rear axle differential (5).

A multiplate clutch is installed in the rear axle differential (5), which is actuated by the rear axle differential actuator motor (5). The drive torque distribution is varied and regulated through variable actuation of the multiplate clutch in the rear axle differential (5). If the multiplate clutch in the rear axle differential (5) is closed, then up to 50 % of the drive torque can be forwarded to the rear axle.
