Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FCD
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020 Z7_48z1, Z7_73z1, Z7_75z1
Model 253.99 as of model year 2019
with code 9O1 (Fuel cell pre-installation) Z7_48z1, Z7_73z1, Z7_75z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A101 | Fuel tank diagnostic module | 9L |
| A101 | Fuel tank diagnostic module | 3L |
| A101 | Fuel tank diagnostic module | 17L |
| A101 | Fuel tank diagnostic module | 23L |
| Code M177 | SPARK-IGNITION ENGINE M177 | 1J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 4J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 37J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 45J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 62J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 21J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 24J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 40J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 38J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 54J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 13J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 18J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 51J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 6J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 10J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 48J |
| Code M654 | DIESEL ENGINE 0M654 | 25J |
| Code M654 | DIESEL ENGINE 0M654 | 34J |
| Code M654 | DIESEL ENGINE 0M654 | 28J |
| Code M654 | DIESEL ENGINE 0M654 | 57J |
| Code M654 | DIESEL ENGINE 0M654 | 65J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 31J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 59J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 69J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 41J |
| M16/53 | Left exhaust flap actuator motor | 38L |
| M43/6 | Low temperature circuit circulation pump 1 | 34L |
| N3/10 | ME-SFI [ME] control unit | 48L |
| N3/10 | ME-SFI [ME] control unit | 51L |
| N3/10 | ME-SFI [ME] control unit | 54L |
| N3/10 | ME-SFI [ME] control unit | 62L |
| N3/9 | CDI control unit | 26L |
| N3/9 | CDI control unit | 31L |
| N3/9 | CDI control unit | 28L |
| N3/9 | CDI control unit | 60L |
| N3/9 | CDI control unit | 57L |
| N3/9 | CDI control unit | 65L |
| N3/9 | CDI control unit | 69L |
| N37/12 | Control unit of NOx sensor upstream of diesel oxidation catalytic converter | 41L |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 44L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 2L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 6L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 11L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 21L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 20L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 27L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 30L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 33L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 47L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 43L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 50L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 52L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 55L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 58L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 61L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 67L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 71L |
| X26 | Interior and engine wiring harness electrical connector | 10L |
| X26 | Interior and engine wiring harness electrical connector | 19L |
| X26 | Interior and engine wiring harness electrical connector | 24L |
| X26 | Interior and engine wiring harness electrical connector | 36L |
| X26/10 | Vehicle interior/engine electrical connector | 4L |
| X26/10 | Vehicle interior/engine electrical connector | 45L |
| X26/10 | Vehicle interior/engine electrical connector | 64L |

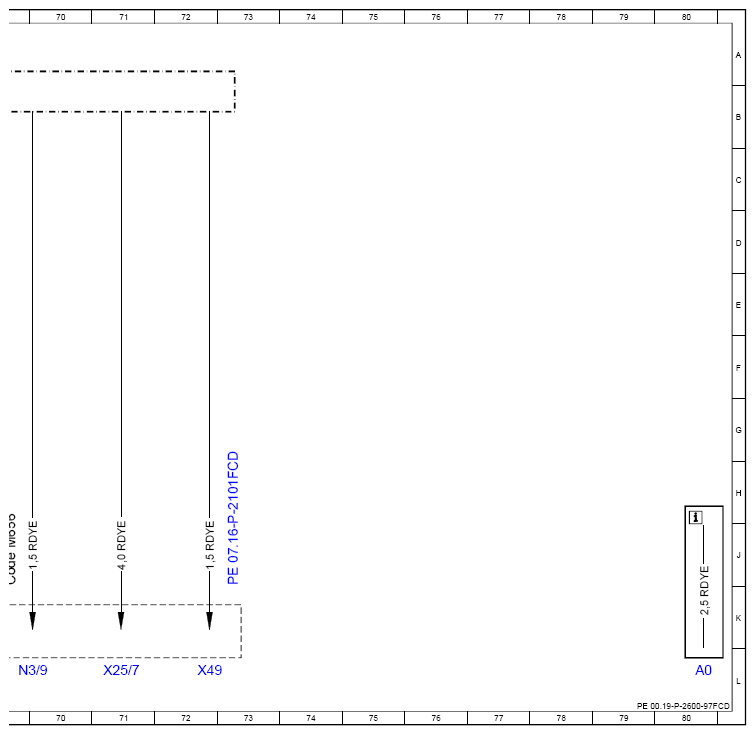

| X49 | Potential distributor | 72L |
| X49 | Potential distributor | 68L |
| Y16/8 | Coolant pump switchover valve | 37L |
| Y58/1 | Purge control valve | 7L |
| Y58/1 | Purge control valve | 13L |
| Y58/5 | Fuel tank shutoff valve | 14L |
| Y75/1 | Fuel vapor shutoff valve | 16L |
| Y93 | Exhaust flap switchover valve | 40L |

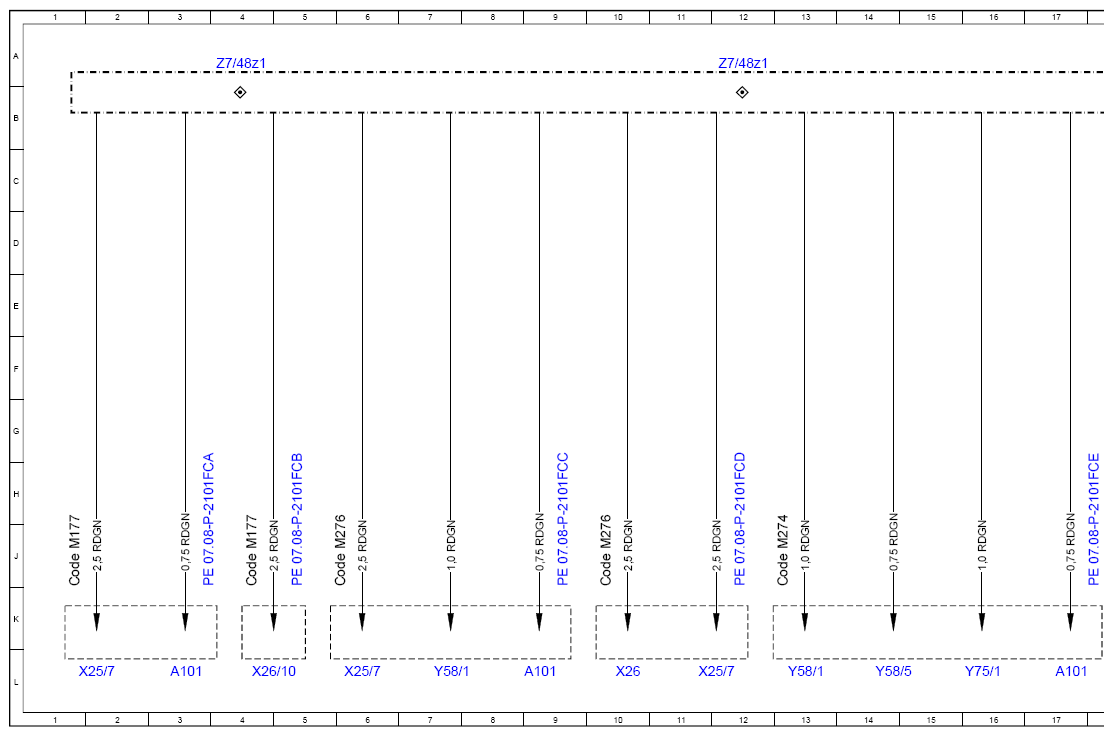

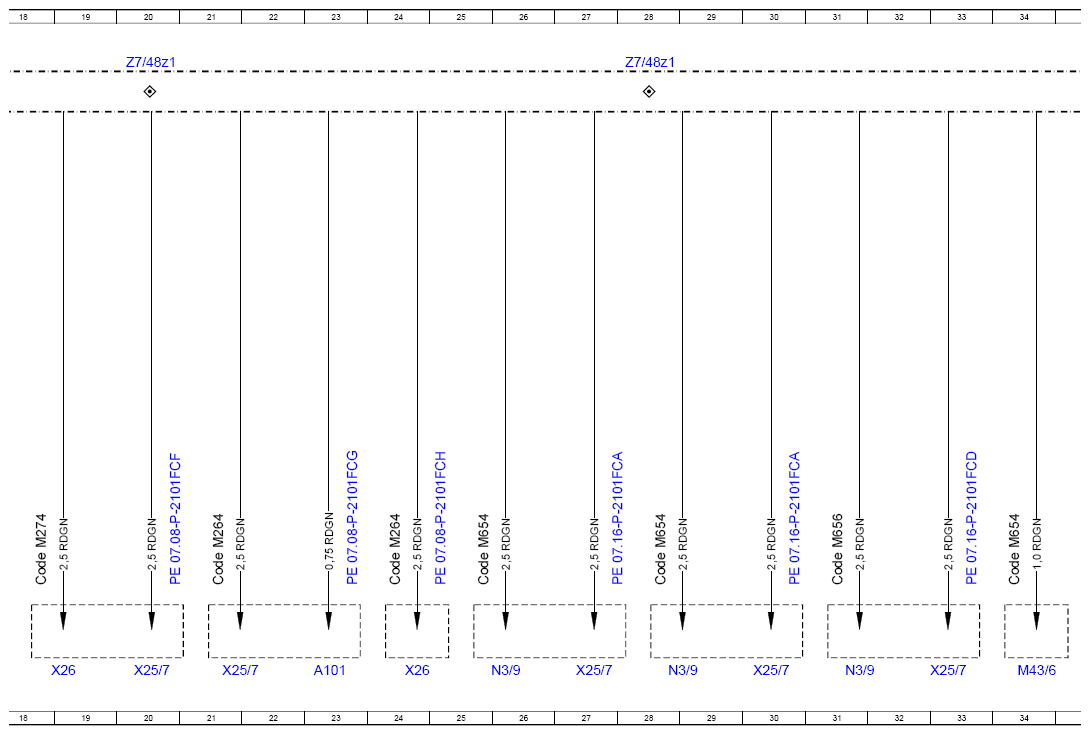

| Z7/48z1 | Circuit 87/2 connector sleeve | 4A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 12A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 28A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 20A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 36A |

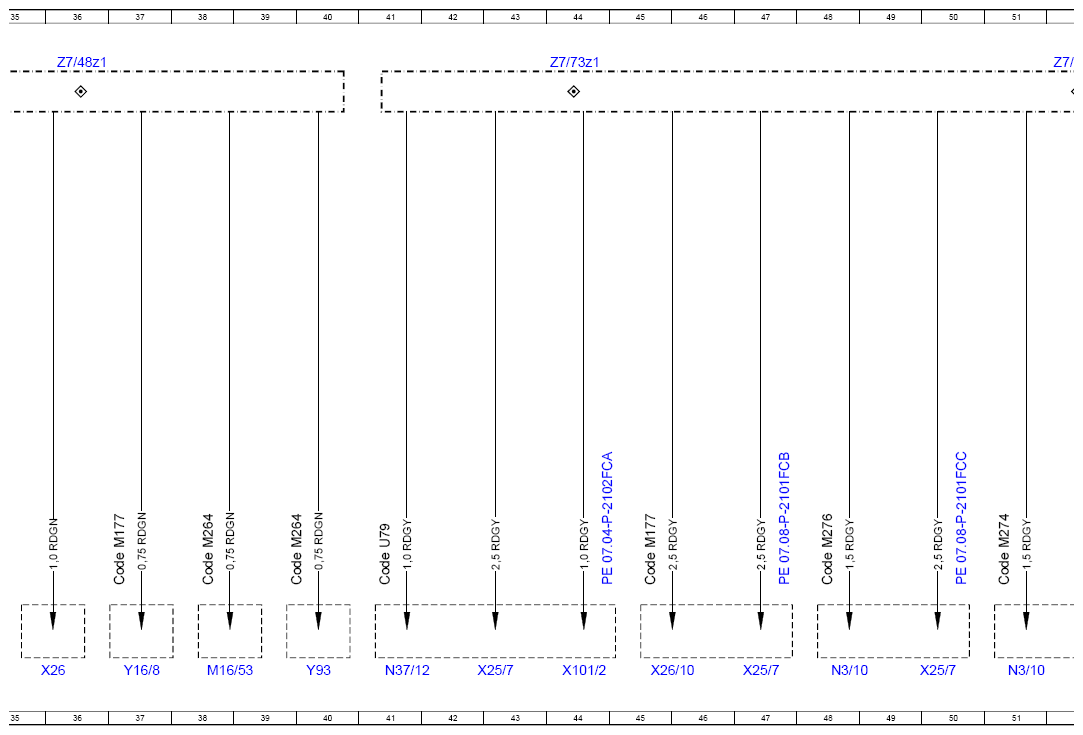

| Z7/73z1 | Circuit 87/4 connector sleeve | 44A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 52A |
| Z7/73z1 | Circuit 87/4 connector sleeve | 60A |

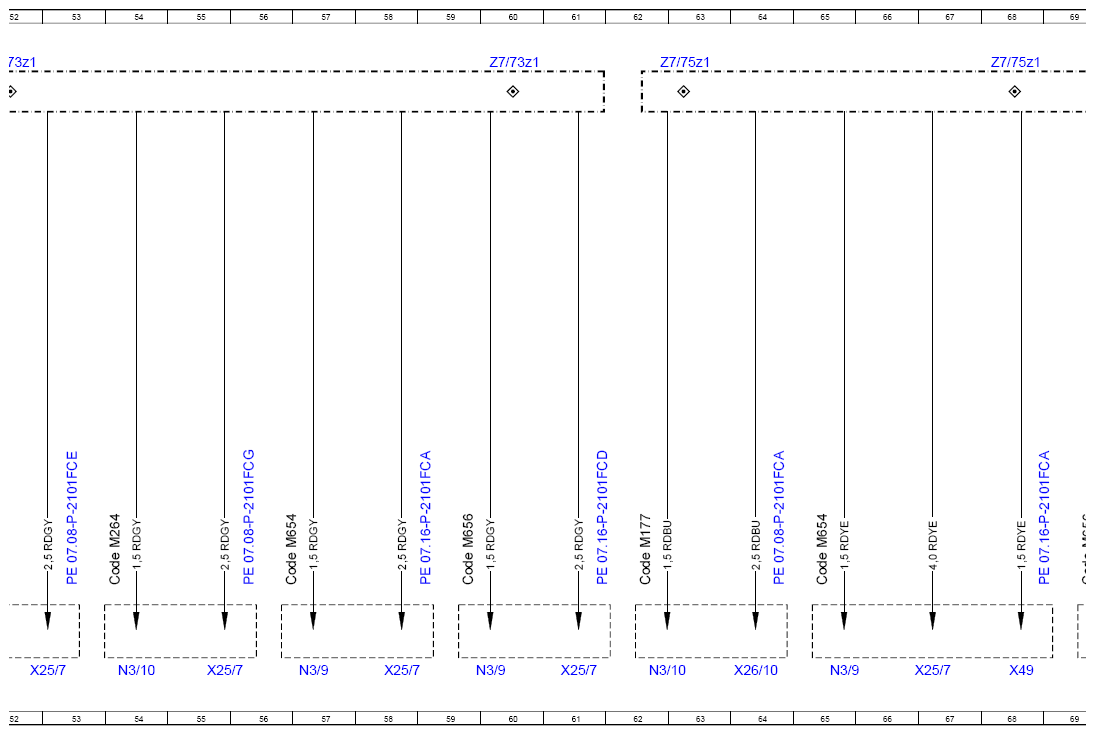

| Z7/75z1 | Circuit 87/3 connector sleeve | 63A |
| Z7/75z1 | Circuit 87/3 connector sleeve | 68A |
