Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FCC
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020 Z36_35z1, Z4_3z1, Z50_5z1, Z51_6z1, Z68_29z1
Model 253.99
as of model year 2019
with code 9O1 (Fuel cell pre-installation) Z36_35z1, Z4_3z1, Z50_5z1, Z51_6z1, Z68_29z1
| Code: | Designation: | Position: |
|---|---|---|

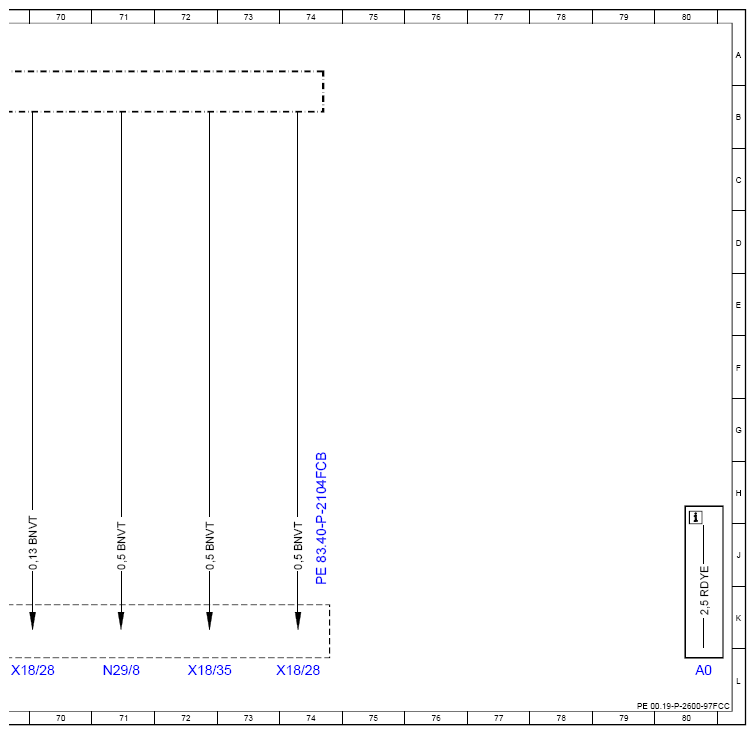

| A0 | Use of wiring diagrams | 80L |
| B92/10 | Left outer rear bumper radar sensor | 3L |
| B92/11 | Left outer rear bumper integrated radar sensor | 7L |
| B92/6 | Right outer rear bumper integrated radar sensor | 6L |
| B92/7 | Right outer rear bumper radar sensor | 2L |
| Code 233 | DISTRONIC PLUS | 1J |
| Code 234 | Blind Spot Assist (BSM) | 6J |
| Code 413 | Panoramic sliding sunroof | 48J |
| Code 459 | Steel suspension with adjustable damping | 42J |
| Code 467 | Electronic locking differential | 21J |
| Code 467 | Electronic locking differential | 23J |
| Code 489 | AIR BODY CONTROL | 45J |
| Code 901 | Fuel cell retrofitting | 59J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 11J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 24J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 16J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 33J |
| Code M274 | SPARK-IGNITION ENGINE M274 | 14J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 13J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 27J |
| Code M276 | SPARK-IGNITION ENGINE M276 | 30J |
| Code M654 | DIESEL ENGINE 0M654 | 17J |
| Code M654 | DIESEL ENGINE 0M654 | 35J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 18J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 38J |
| Code P21 | AIR-BALANCE package | 57J |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| K40/5 | Rear fuse and relay module | 23L |
| Ml 6/11 | Left A-pillar air distribution actuator motor | 59L |
| Ml 6/11 | Left A-pillar air distribution actuator motor | 68L |
| M16/12 | Right A-pillar air distribution actuator motor | 61L |
| M16/12 | Right A-pillar air distribution actuator motor | 67L |
| N10/6 | Front SAM control unit | 45L |
| N10/6 | Front SAM control unit | 43L |
| N10/6 | Front SAM control unit | 51L |
| N10/6 | Front SAM control unit | 48L |
| N127 | Drivetrain control unit | 20L |
| N127 | Drivetrain control unit | 41L |
| N18/9 | Ionizer | 58L |
| N22/1 | Climate control control unit | 57L |
| N22/1 | Climate control control unit | 64L |
| N29/8 | Booster blower electronic blower regulator | 71L |
| N3/10 | ME-SFI [ME] control unit | 14L |
| N3/10 | ME-SFI [ME] control unit | 13L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/10 | ME-SFI [ME] control unit | 27L |
| N3/10 | ME-SFI [ME] control unit | 33L |
| N3/10 | ME-SFI [ME] control unit | 30L |
| N3/2 | Electronic differential control unit | 21L |
| N3/9 | CDI control unit | 17L |
| N3/9 | CDI control unit | 19L |
| N3/9 | CDI control unit | 38L |
| N3/9 | CDI control unit | 36L |
| N33/5 | High-voltage PTC heater | 65L |
| S105 | Rear-end lowering switch | 47L |
| S105 | Rear-end lowering switch | 44L |
| S54/10 | Right luggage compartment rear backrest release button | 54L |
| S54/9 | Left luggage compartment rear backrest release button | 52L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 55L |
| X18/28 | Left cockpit/engine compartment electrical connector | 69L |
| X18/28 | Left cockpit/engine compartment electrical connector | 74L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 62L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 72L |
| X204/1 | Panoramic roof roller sun blind electrical connector | 50L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 26L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 34L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 31L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 28L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 40L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 37L |
| X26/10 | Vehicle interior/engine electrical connector | 11L |
| X26/10 | Vehicle interior/engine electrical connector | 24L |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 9L |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 4L |

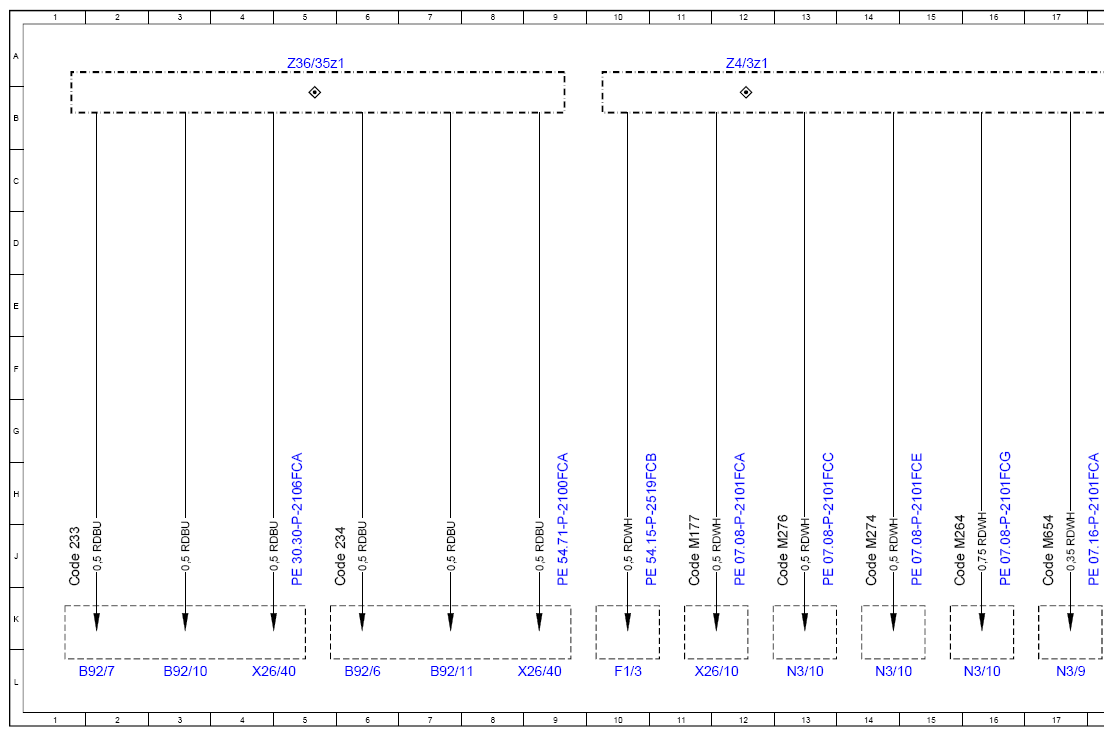

| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 5A |

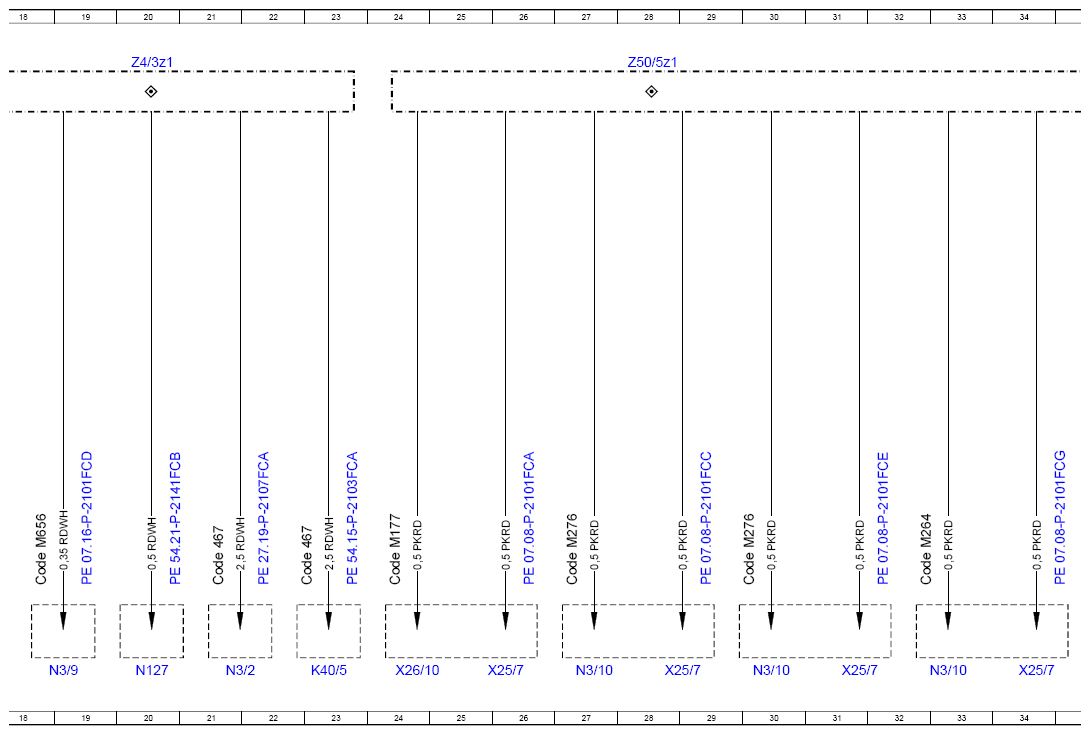

| Z4/3z1 | Tml. 30 connector sleeve | 12A |
| Z4/3z1 | Tml. 30 connector sleeve | 20A |

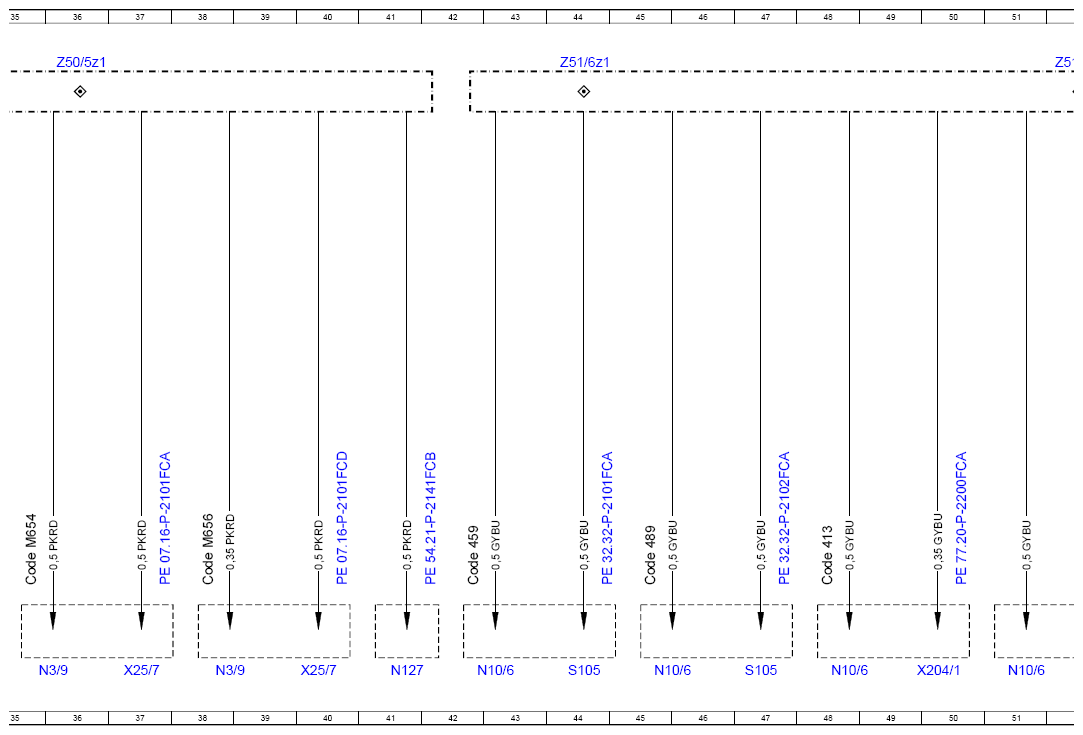

| Z50/5z1 | Tml. 15 connector sleeve | 28A |
| Z50/5z1 | Tml. 15 connector sleeve | 36A |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 44A |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 52A |

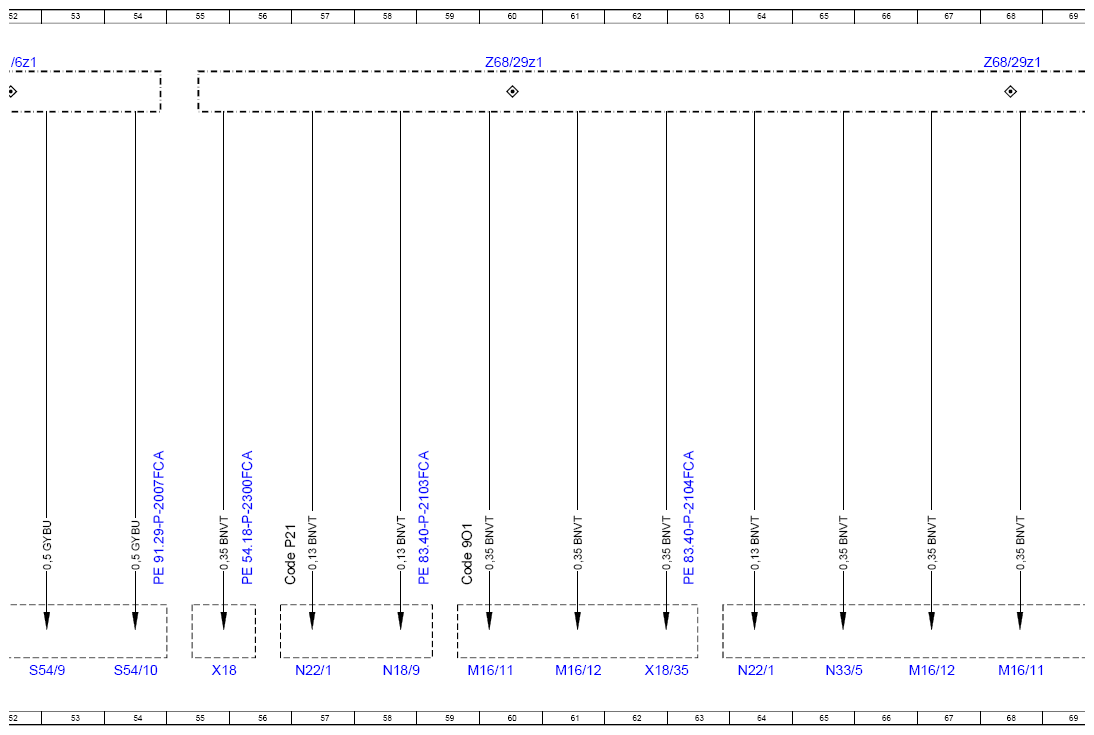

| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 60A |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 68A |
