Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020 Z6/92z1, Z7/58z1, Z68/24z1, Z81/5z1 Z137/1z1, Z141/1z1, Z141z1
Model 253.99
as of model year 2019
with code 9O1 (Fuel cell pre-installation) Z6/92z1, Z7/58z1, Z68/24z1, Z81/5z1 Z137/1z1, Z141/1z1, Z141z1
| Code: | Designation: | Position: |
|---|---|---|

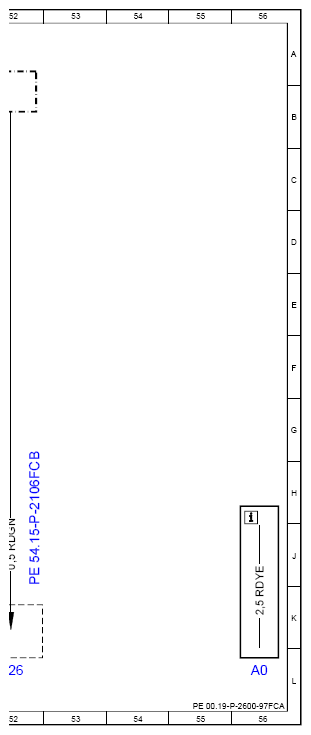

| A0 | Use of wiring diagrams | 56L |
| B37 | Accelerator pedal sensor | 46L |
| Code 581 | THERMOTRONIC automatic air conditioning | 21J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 24J |
| E19/1 | Left license plate lamp | 6L |
| E19/2 | Right license plate lamp | 7L |
| E21 | Center stop lamp | 9L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 4L |
| F1/3 | Passenger-side A-pillar fuse box | 36L |
| K40/10 | HYBRID fuse and relay module | 48L |
| K40/6 | Driver-side fuse and relay module | 10L |
| K40/8 | Engine fuse and relay module | 37L |
| M4/7 | Fan motor | 41L |
| M75/10 | High-voltage battery coolant pump | 42L |
| N10/6 | Front SAM control unit | 26L |
| N10/8 | Rear SAM control unit | 31L |
| N127 | Drivetrain control unit | 45L |
| N18/9 | Ionizer | 16L |
| N22/1 | Climate control control unit | 17L |
| N29/8 | Booster blower electronic blower regulator | 21L |
| N32/1 | Driver seat control unit | 33L |
| N32/2 | Front passenger seat control unit | 34L |
| N58/1 | Climate control operating unit | 13L |
| N59 | Perfume atomizer generator | 14L |
| N72/1 | Upper control panel control unit | 11L |
| S1 | Exterior lights switch | 30L |
| S76/15 | Electric parking brake switch | 28L |
| S76/15 | Electric parking brake switch | 27L |
| S88/8 | Trunk lid/liftgate external operation switch | 3L |
| W8/2 | Right tailgate ground point | 2L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 23L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 20L |
| X18/28 | Left cockpit/engine compartment electrical connector | 24L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 18L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 39L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 43L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 50L |
| X26 | Interior and engine wiring harness electrical connector | 52L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 49L |
| Z137/1z1 | Connector sleeve, heater LIN | 33A |

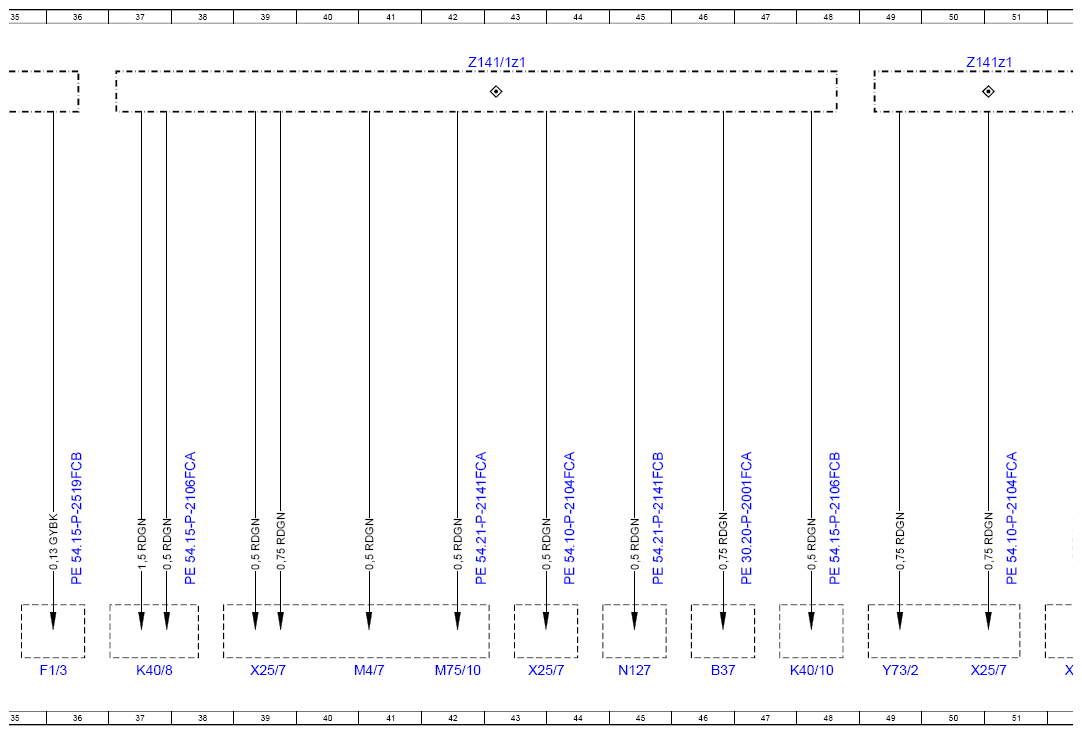

| Z141/1z1 | Circuit 87 C1 connector sleeve | 42A |
| Z141z1 | Tml. 87C end sleeve | 50A |

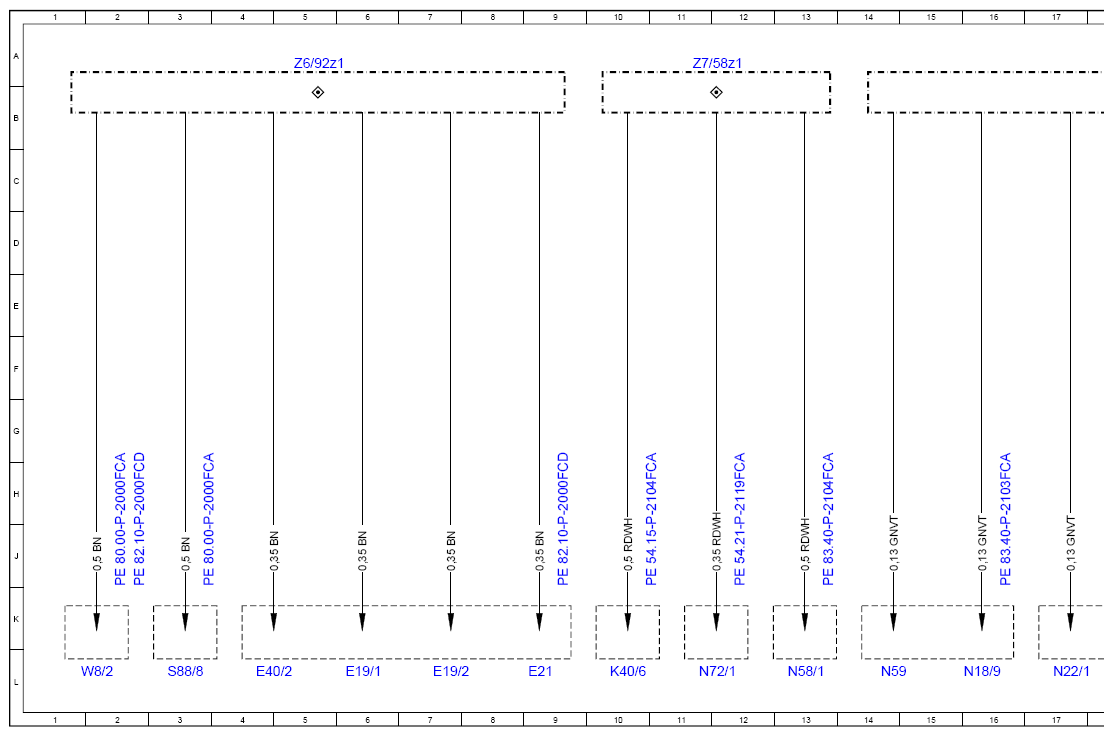

| Z6/92z1 | Trunk lid ground line connector sleeve | 5A |

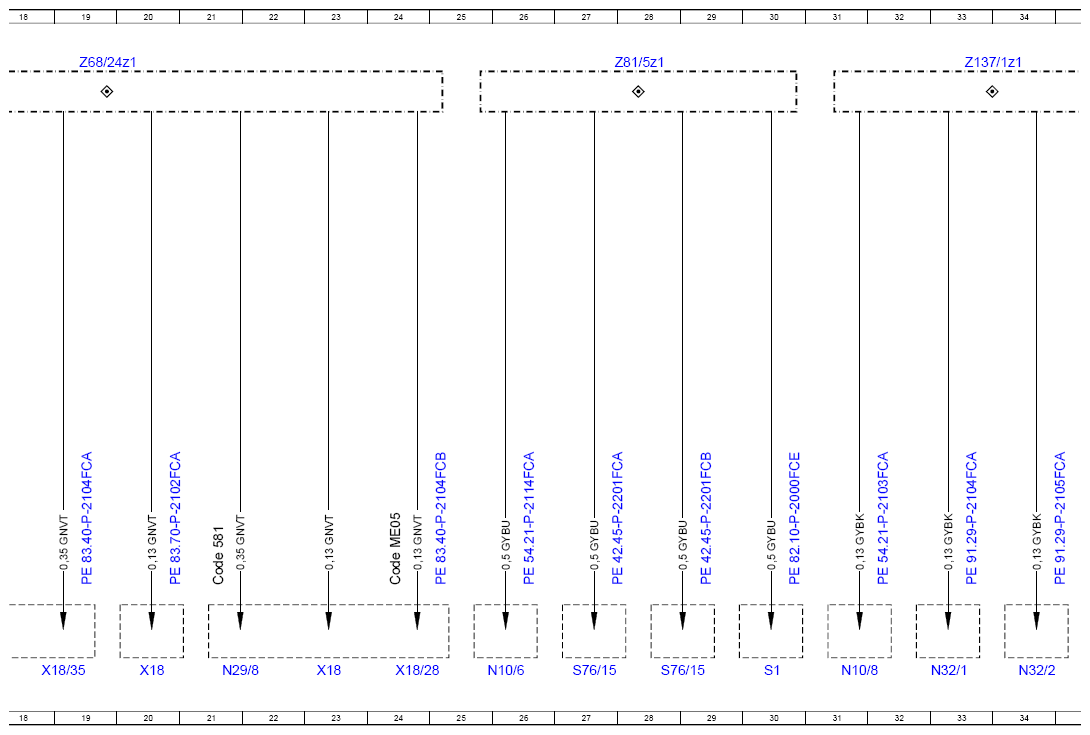

| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 19A |
| Z7/58z1 | Tml. 30 connector sleeve | IIA |
| Z81/5z1 | Circuit 58d connector sleeve | 28A |
