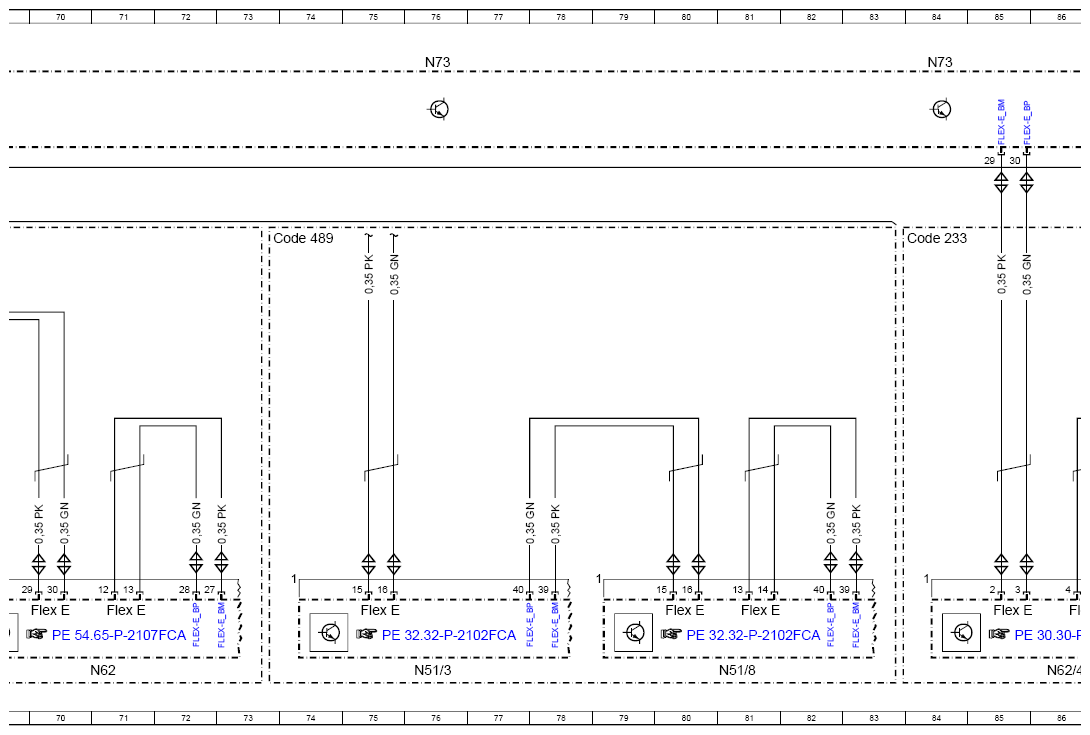

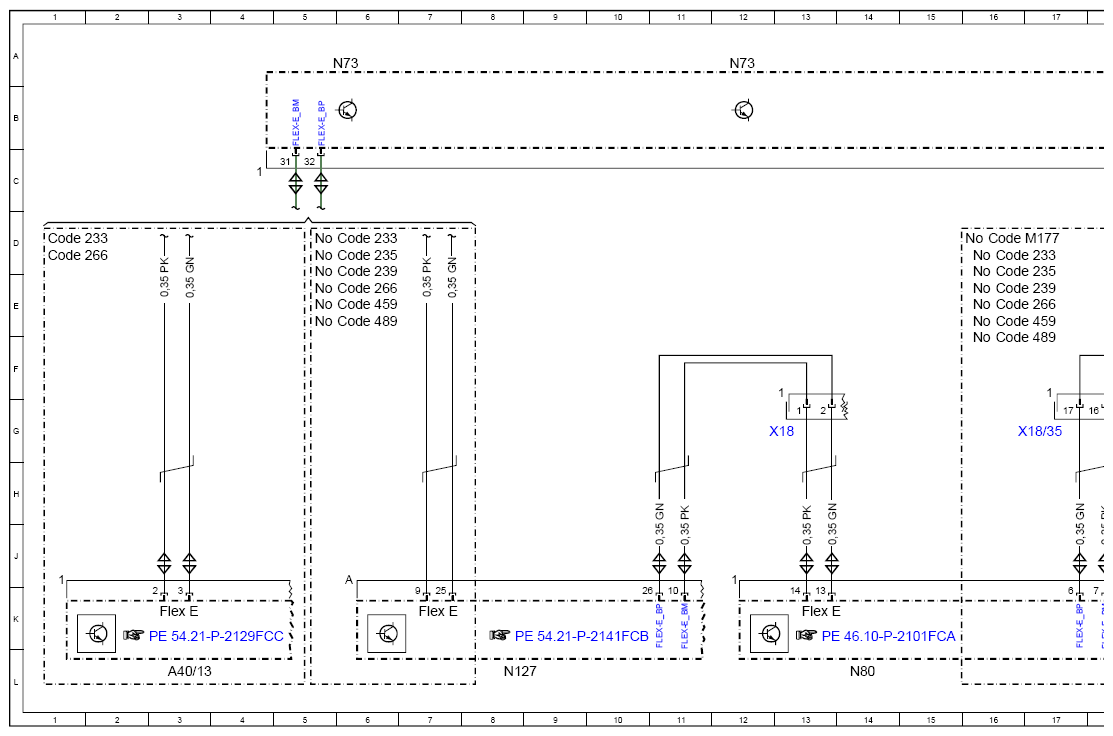

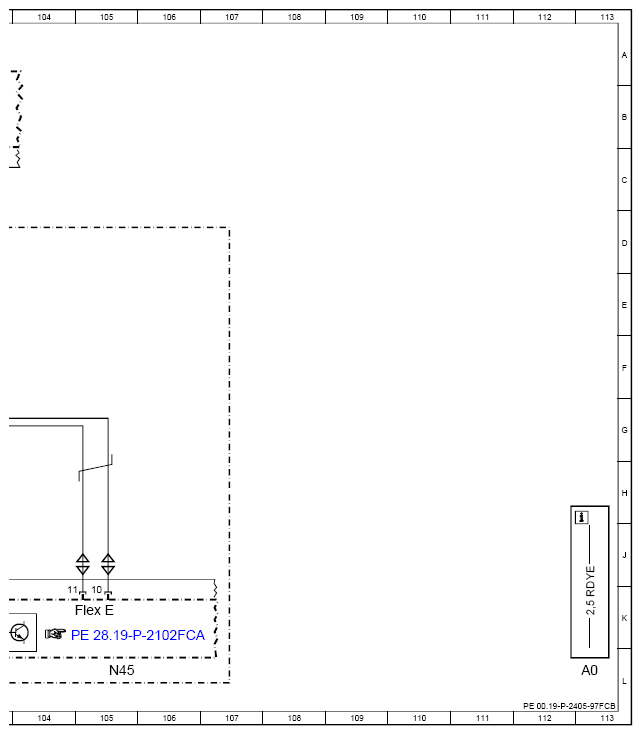

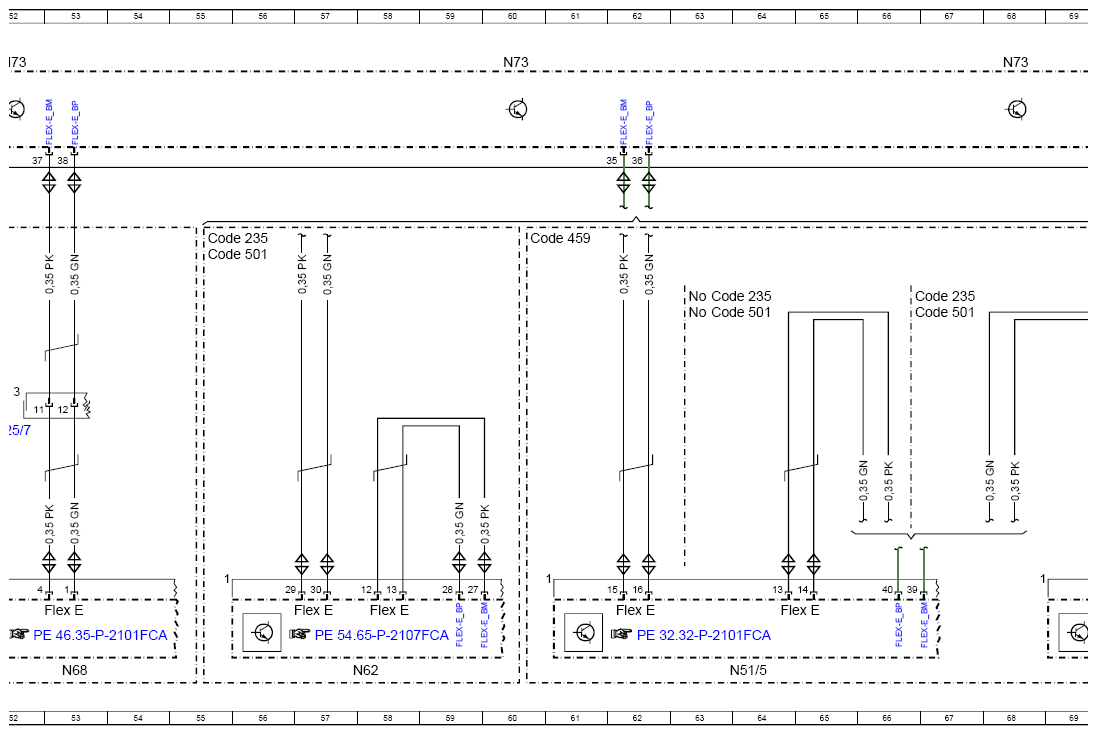

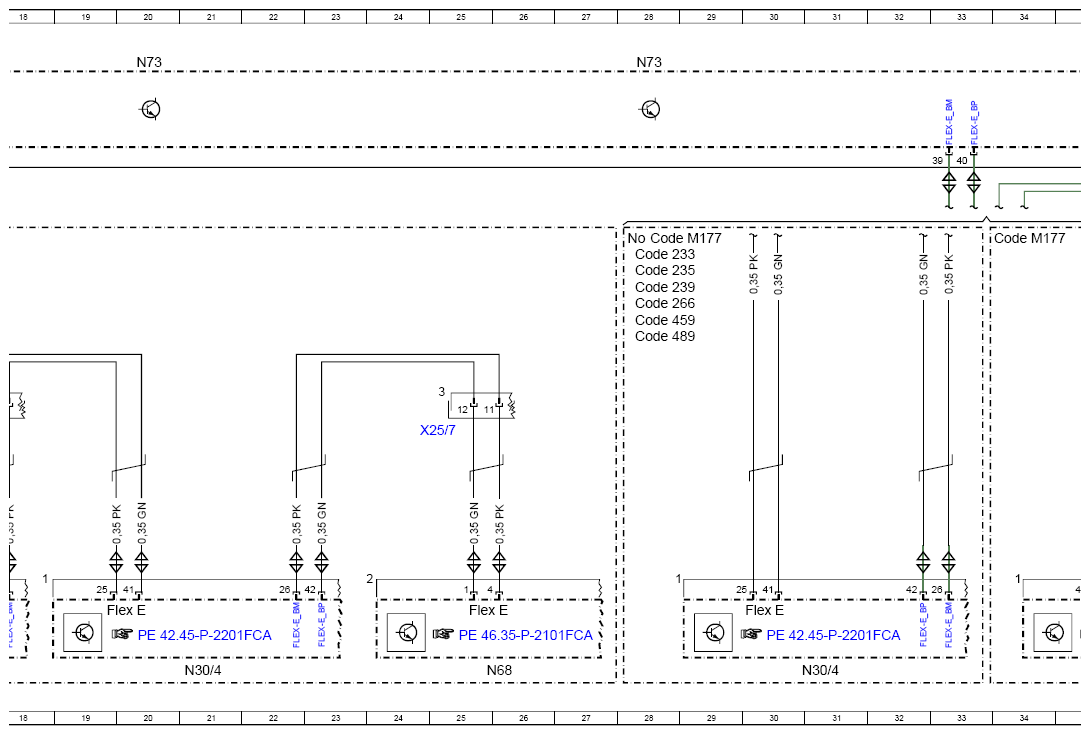

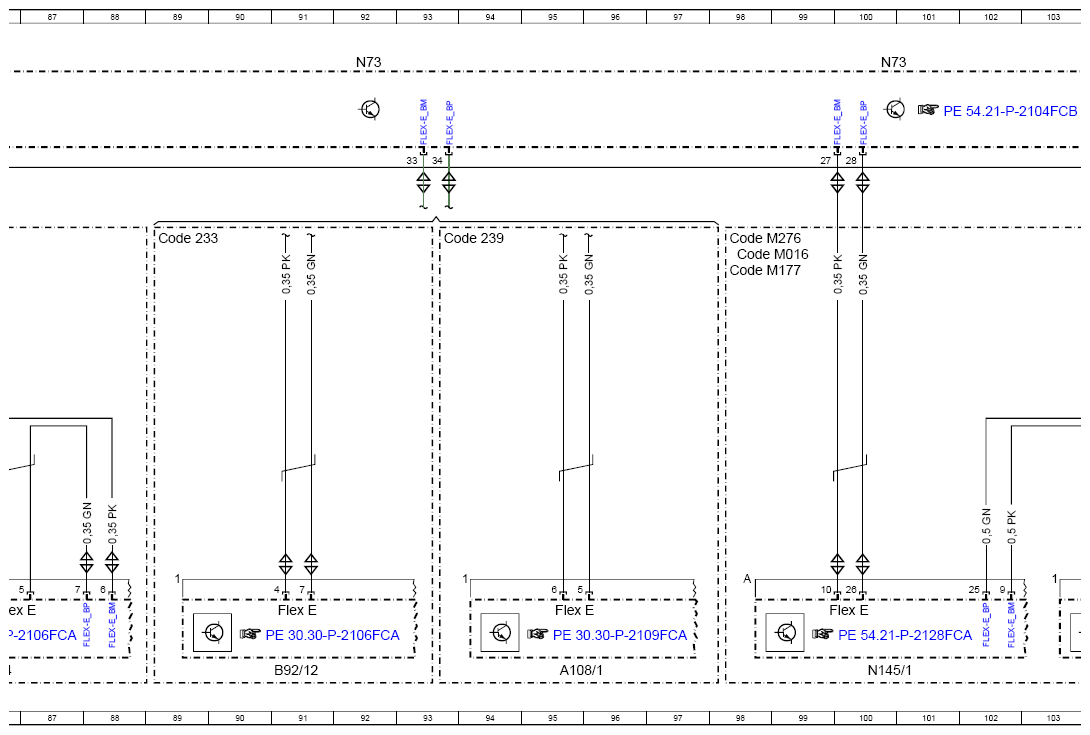

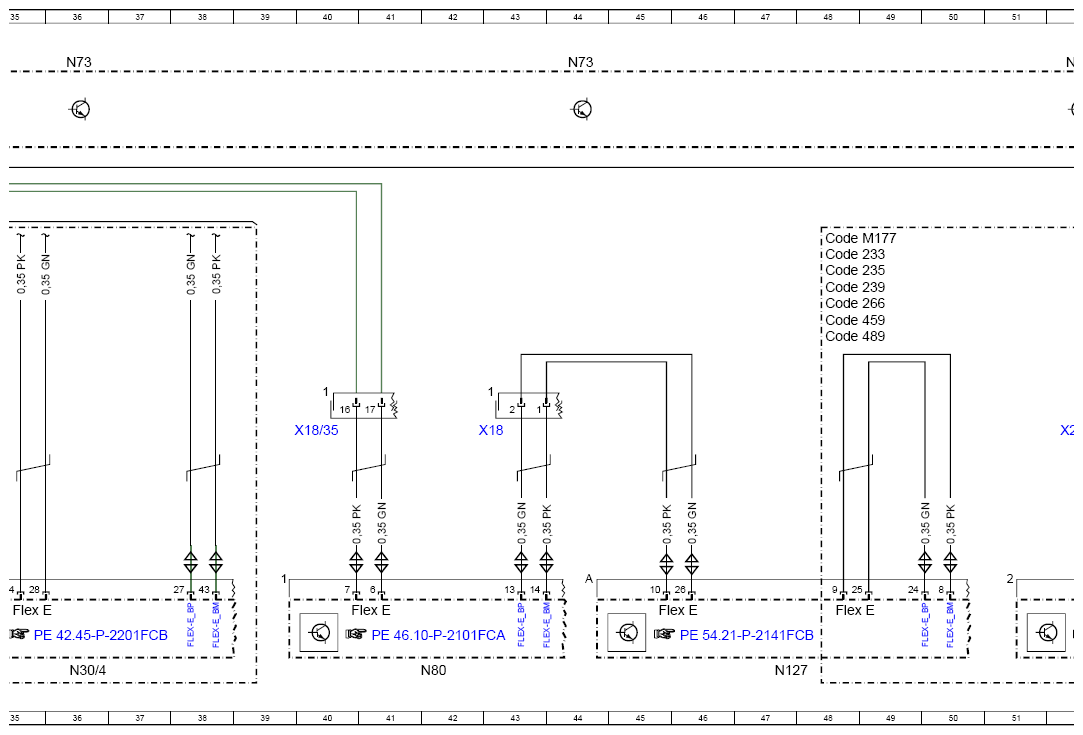

Wiring Diagram Of Chassis Flexray - PE00.19-P-2405-97FCB
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Control unit N73
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 95L |
| A40/13 | Stereo multifunction camera | 3L |
| B92/12 | Short and long-range radar sensor | 91L |
| Code 233 | DISTRONIC PLUS | 1D |
| Code 233 | DISTRONIC PLUS | 16D |
| Code 233 | DISTRONIC PLUS | 6D |
| Code 233 | DISTRONIC PLUS | 28D |
| Code 233 | DISTRONIC PLUS | 48D |
| Code 233 | DISTRONIC PLUS | 84D |
| Code 233 | DISTRONIC PLUS | 89D |
| Code 235 | Active Park Assist | 6D |
| Code 235 | Active Park Assist | 16E |
| Code 235 | Active Park Assist | 28E |
| Code 235 | Active Park Assist | 48E |
| Code 235 | Active Park Assist | 55D |
| Code 235 | Active Park Assist | 63E |
| Code 235 | Active Park Assist | 66E |
| Code 239 | Active Distance Assist DISTRONIC | 6E |
| Code 239 | Active Distance Assist DISTRONIC | 16E |
| Code 239 | Active Distance Assist DISTRONIC | 28E |
| Code 239 | Active Distance Assist DISTRONIC | 48E |
| Code 239 | Active Distance Assist DISTRONIC | 93D |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 1D |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 6E |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 16E |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 28E |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 48E |
| Code 459 | Steel suspension with adjustable damping | 6E |
| Code 459 | Steel suspension with adjustable damping | 16E |
| Code 459 | Steel suspension with adjustable damping | 28E |
| Code 459 | Steel suspension with adjustable damping | 48E |
| Code 459 | Steel suspension with adjustable damping | 60D |
| Code 489 | AIR BODY CONTROL | 6E |
| Code 489 | AIR BODY CONTROL | 16F |
| Code 489 | AIR BODY CONTROL | 28F |
| Code 489 | AIR BODY CONTROL | 48F |
| Code 489 | AIR BODY CONTROL | 73D |
| Code 501 | 360 degree camera | 55D |
| Code 501 | 360 degree camera | 63E |
| Code 501 | 360 degree camera | 66E |
| Code M016 | Uprated high-performance engine | 98D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 16D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 28D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 34D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 48D |
| Code M177 | SPARK-IGNITION ENGINE M177 | 98E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 98D |
| Flex E | Chassis FlexRay | 19K |
| Flex E | Chassis FlexRay | 3K |
| Flex E | Chassis FlexRay | 7K |
| Flex E | Chassis FlexRay | 13K |
| Flex E | Chassis FlexRay | 53K |
| Flex E | Chassis FlexRay | 25K |
| Flex E | Chassis FlexRay | 35K |
| Flex E | Chassis FlexRay | 30K |
| Flex E | Chassis FlexRay | 40K |
| Flex E | Chassis FlexRay | 45K |
| Flex E | Chassis FlexRay | 48K |
| Flex E | Chassis FlexRay | 57K |
| Flex E | Chassis FlexRay | 58K |
| Flex E | Chassis FlexRay | 62K |
| Flex E | Chassis FlexRay | 71K |
| Flex E | Chassis FlexRay | 70K |
| Flex E | Chassis FlexRay | 64K |
| Flex E | Chassis FlexRay | 75K |
| Flex E | Chassis FlexRay | 81K |
| Flex E | Chassis FlexRay | 80K |
| Flex E | Chassis FlexRay | 85K |
| Flex E | Chassis FlexRay | 86K |
| Flex E | Chassis FlexRay | 91K |
| Flex E | Chassis FlexRay | 105K |
| Flex E | Chassis FlexRay | 100K |
| Flex E | Chassis FlexRay | 95K |
| N127 | Drivetrain control unit | 8L |
| N127 | Drivetrain control unit | 47L |
| N145/1 | Drive unit control unit | 100L |
| N30/4 | Electronic Stability Program control unit | 21L |
| N30/4 | Electronic Stability Program control unit | 31L |
| N30/4 | Electronic Stability Program control unit | 36L |
| N45 | All-wheel drive control unit | 105L |
| N51/3 | AIR BODY CONTROL control unit | 76L |
| N51/5 | Adaptive damping system control unit | 64L |
| N51/8 | AIR BODY CONTROL Plus control unit | 81L |
| N62 | Parking system control unit | 58L |
| N62 | Parking system control unit | 71L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 86L |
| N68 | Electrical power steering control unit | 26L |
| N68 | Electrical power steering control unit | 53L |
| N73 | Electronic ignition switch control unit | 6A |
| N73 | Electronic ignition switch control unit | 12A |
| N73 | Electronic ignition switch control unit | 20A |
| N73 | Electronic ignition switch control unit | 28A |
| N73 | Electronic ignition switch control unit | 36A |
| N73 | Electronic ignition switch control unit | 44A |
| N73 | Electronic ignition switch control unit | 52A |
| N73 | Electronic ignition switch control unit | 60A |
| N73 | Electronic ignition switch control unit | 68A |
| N73 | Electronic ignition switch control unit | 84A |
| N73 | Electronic ignition switch control unit | 76A |
| N73 | Electronic ignition switch control unit | 92A |
| N73 | Electronic ignition switch control unit | 100A |
| N80 | Steering column module control unit | 14L |
| N80 | Steering column module control unit | 42L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 13G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 43G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 17G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 40G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 25G |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 52G |
