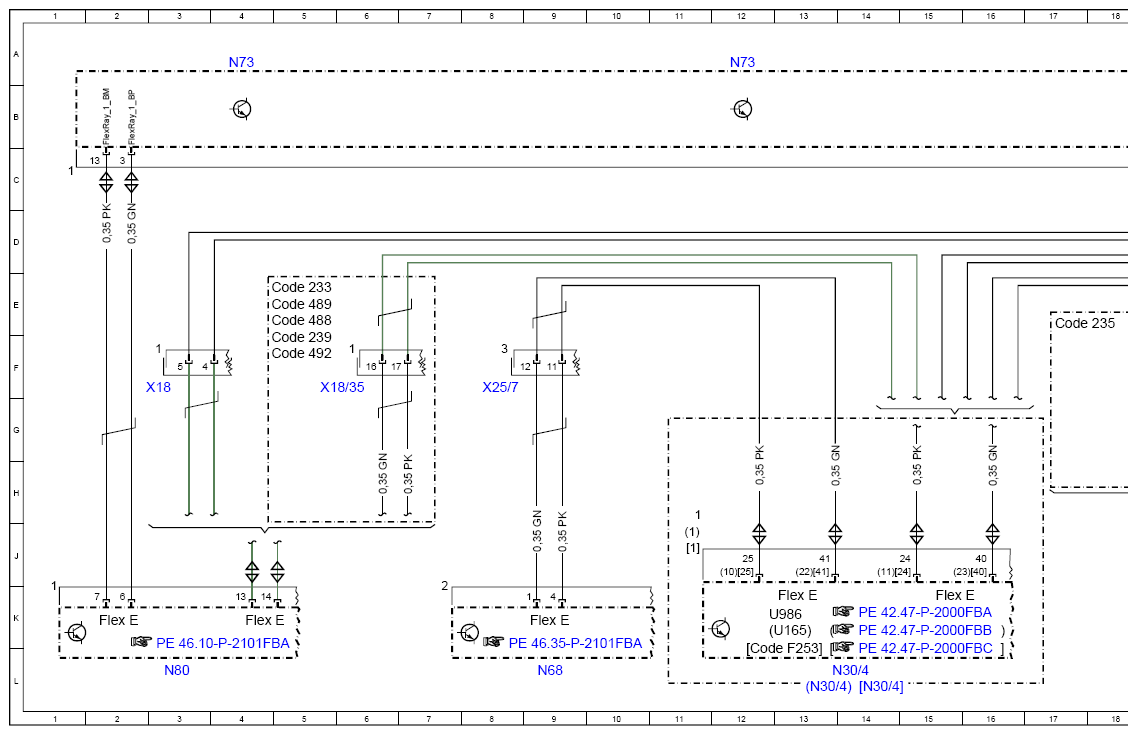

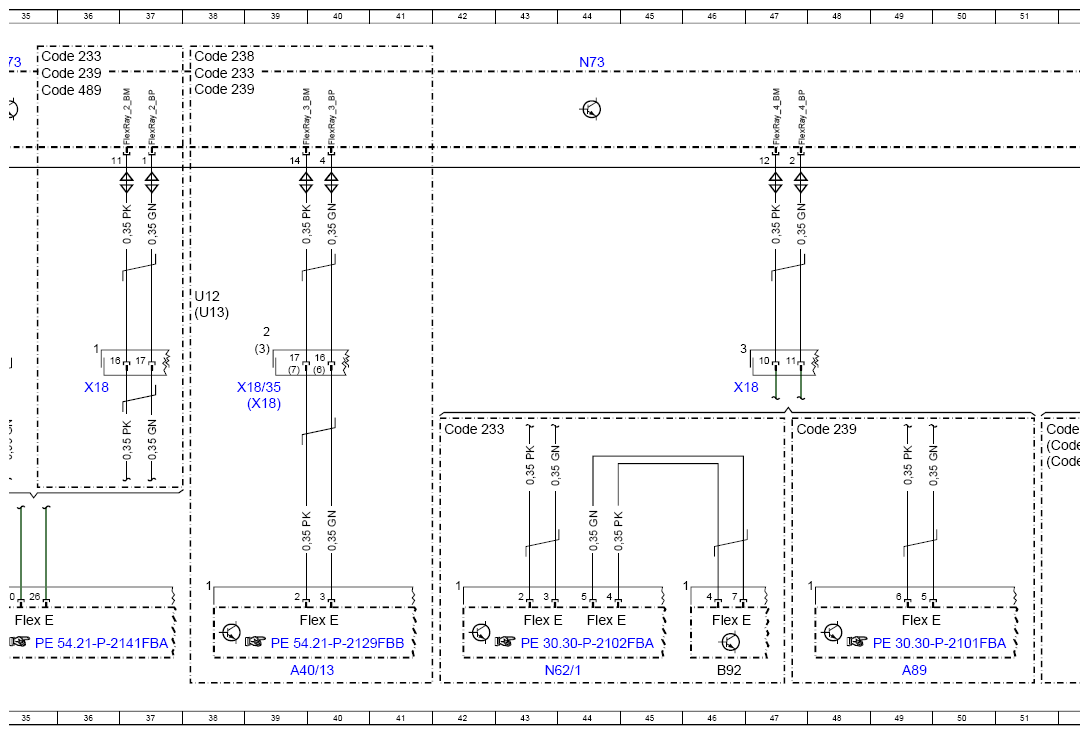

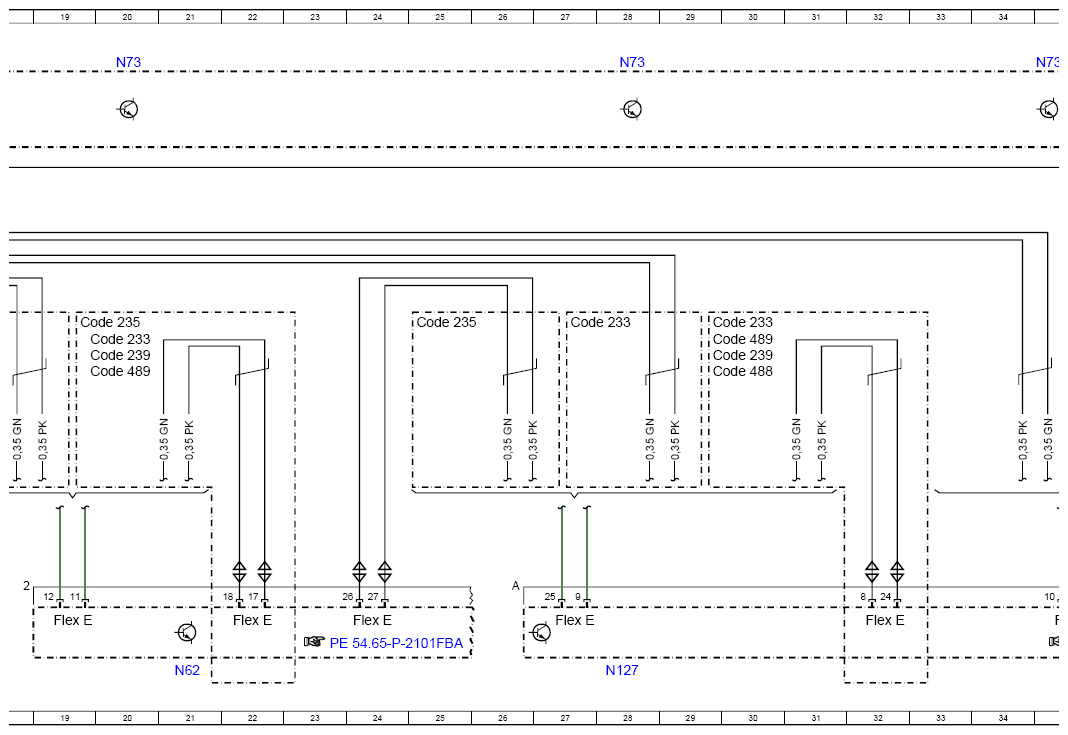

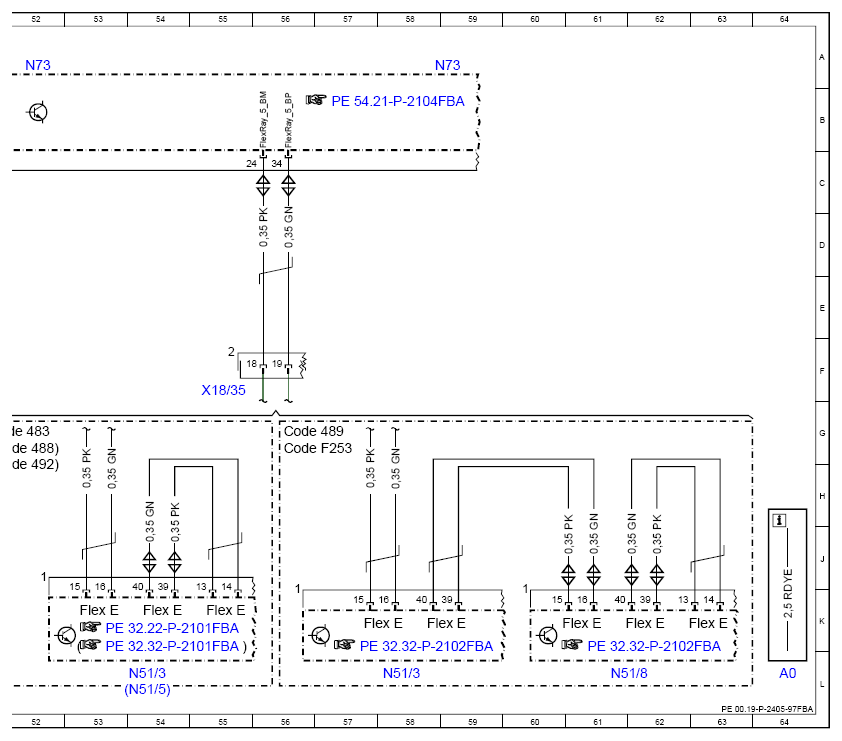

Wiring Diagram Of Chassis Flexray - PE00.19-P-2405-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
up to model year 2019
Model 253 (except 253.99)
up to model year 2020
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A40/13 | Stereo multifunction camera | 39L |
| A89 | DISTRONIC electric controller unit | 49L |
| B92 | Front long-range radar sensor | 46L |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 4E |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 19F |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 27 E |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 29E |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 42G |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 35A |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 38A |
| Code 235 | Active Park Assist | 17E |
| Code 235 | Active Park Assist | 19E |
| Code 235 | Active Park Assist | 25E |
| Code 238 | Active Lane Keeping Assist | 38A |
| Code 239 | DISTRONIC PLUS | 4F |
| Code 239 | DISTRONIC PLUS | 19F |
| Code 239 | DISTRONIC PLUS | 29F |
| Code 239 | DISTRONIC PLUS | 47G |
| Code 239 | DISTRONIC PLUS | 35A |
| Code 239 | DISTRONIC PLUS | 38B |
| Code 483 | Dynamic handling package 2.0 incl. ADS+ | 51G |
| Code 488 | Chassis with steel/air suspension | 29F |
| Code 488 | Chassis with steel/air suspension | 4E |
| Code 488 | Chassis with steel/air suspension | 51G |
| Code 489 | AIR BODY CONTROL | 19F |
| Code 489 | AIR BODY CONTROL | 4E |
| Code 489 | AIR BODY CONTROL | 29F |
| Code 489 | AIR BODY CONTROL | 56G |
| Code 489 | AIR BODY CONTROL | 35B |
| Code 492 | AMG Performance suspension | 4F |
| Code 492 | AMG Performance suspension | 51H |
| Code F253 | MODEL SERIES 253 | 12L |
| Code F253 | MODEL SERIES 253 | 56G |
| Flex E | Chassis FlexRay | 2K |
| Flex E | Chassis FlexRay | 4K |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 19K |
| Flex E | Chassis FlexRay | 22K |
| Flex E | Chassis FlexRay | 24K |
| Flex E | Chassis FlexRay | 27K |
| Flex E | Chassis FlexRay | 32K |
| Flex E | Chassis FlexRay | 13K |
| Flex E | Chassis FlexRay | 15K |
| Flex E | Chassis FlexRay | 53K |
| Flex E | Chassis FlexRay | 35K |
| Flex E | Chassis FlexRay | 40K |
| Flex E | Chassis FlexRay | 44K |
| Flex E | Chassis FlexRay | 43K |
| Flex E | Chassis FlexRay | 46K |
| Flex E | Chassis FlexRay | 49K |
| Flex E | Chassis FlexRay | 54K |
| Flex E | Chassis FlexRay | 55K |
| Flex E | Chassis FlexRay | 63K |
| Flex E | Chassis FlexRay | 57K |
| Flex E | Chassis FlexRay | 61K |
| Flex E | Chassis FlexRay | 58K |
| Flex E | Chassis FlexRay | 62K |
| N127 | Drivetrain control unit | 28L |
| N30/4 | Electronic Stability Program control unit | 14L |
| N30/4 | Electronic Stability Program control unit | 13L |
| N30/4 | Electronic Stability Program control unit | 14L |
| N51/3 | AIR BODY CONTROL control unit | 58L |
| N51/3 | AIR BODY CONTROL control unit | 54L |
| N51/5 | Adaptive damping system control unit | 54L |
| N51/8 | AIR BODY CONTROL Plus control unit | 61L |
| N62 | Parking system control unit | 21L |
| N62/1 | Radar sensors control unit | 43L |
| N68 | Electrical power steering control unit | 9L |
| N73 | Electronic ignition switch control unit | 4A |
| N73 | Electronic ignition switch control unit | 12A |
| N73 | Electronic ignition switch control unit | 20A |
| N73 | Electronic ignition switch control unit | 28A |
| N73 | Electronic ignition switch control unit | 35A |
| N73 | Electronic ignition switch control unit | 44A |
| N73 | Electronic ignition switch control unit | 52A |
| N73 | Electronic ignition switch control unit | 59A |
| N80 | Steering column module control unit | 3L |
| U12 | Valid for left-hand drive vehicles | 38E |
| U13 | Valid for right-hand drive vehicles | 38E |
| U165 | Valid for AMG | 12K |
| U986 | Not valid for AMG | 12K |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 3F |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 36F |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 39G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 47F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 6F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 39F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 55F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 8F |
