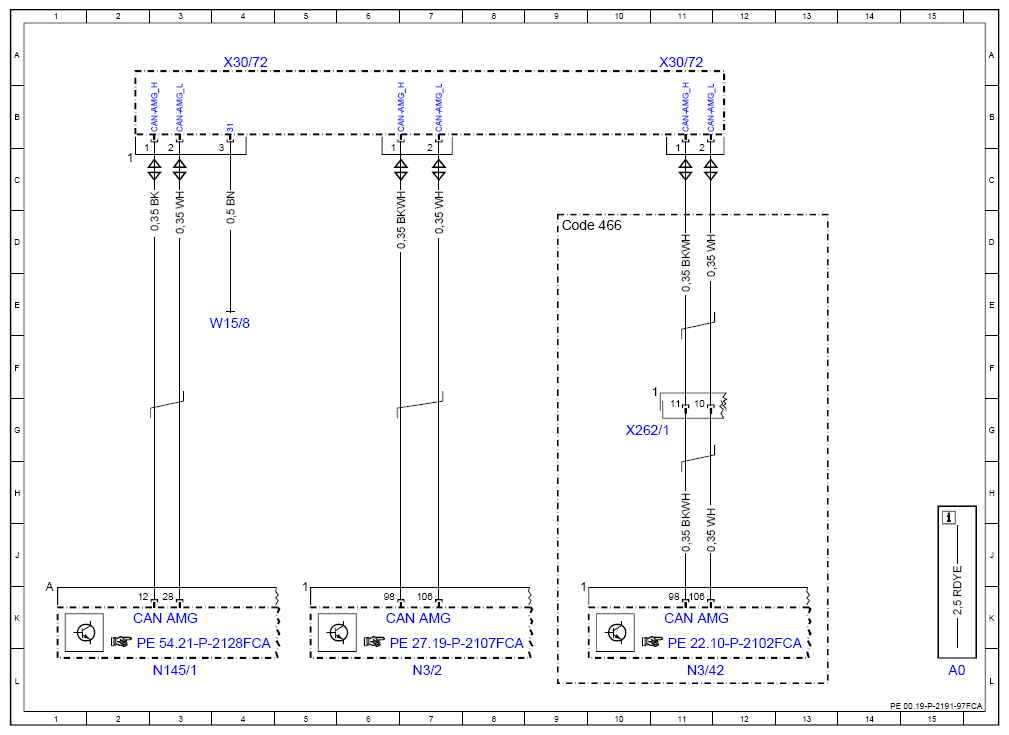

AMG CAN Wiring Diagram - PE00.19-P-2191-97FCA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.99)
as of model year 2020
Potential distributor X30/72
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| CAN AMG | AMG CAN | 3K |
| CAN AMG | AMG CAN | 7K |
| CAN AMG | AMG CAN | 11K |
| Code 466 | Active engine mount | 9D |
| N145/1 | Drive unit control unit | 3L |
| N3/2 | Electronic differential control unit | 7L |
| N3/42 | Active engine mounts control unit | 11L |
| W15/8 | Right front footwell ground point (CAN) | 4E |
| X262/1 | Active engine mount electrical connector | 10G |
| X30/72 | AMG CAN potential distributor electrical connector | 4A |
| X30/72 | AMG CAN potential distributor electrical connector | 11A |
