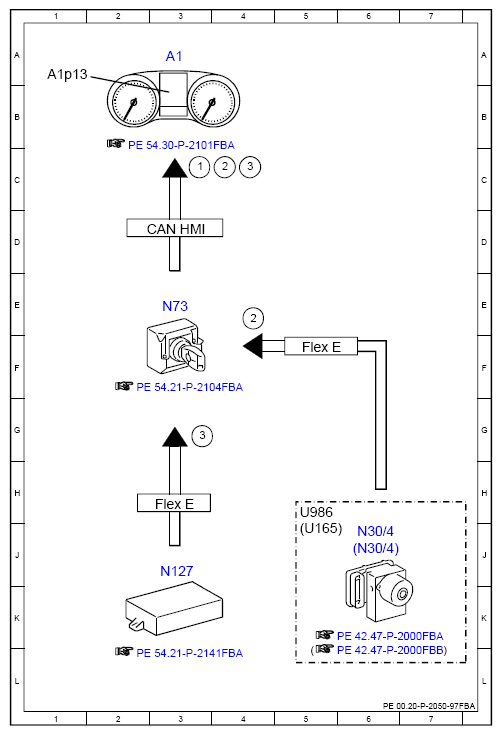

Electrical Function Schematic For Assyst, Assyst Plus Maintenance - PE00.20-P-2050-97FBA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 3C |
| 2 | Wheel speed, signal | 4C |
| 2 | Wheel speed, signal | 4E |
| 3 | 4C | |
| 3 | 3G | |
| A1 | Instrument cluster | 3A |
| A1p13 | Multifunction display | 1A |
| CAN HMI | User interface CAN | 3D |
| Flex E | Chassis FlexRay | 3H |
| Flex E | Chassis FlexRay | 5F |
| N127 | Drivetrain control unit | 3J |
| N30/4 | Electronic Stability Program control unit | 6J |
| N30/4 | Electronic Stability Program control unit | 6J |
| N73 | Electronic ignition switch control unit | 3E |
| U165 | Valid for AMG | 5J |
| U986 | Not valid for AMG | 5H |
